S7636.0XR0.5
S7636.0XR0.5
S7636.0XR0.5
S7636.0XR0.5

S7636.0XR0.5

UGC DOR6706848
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$77.17 CAD - $77.17 CAD
$77.17 CAD
$77.17 CAD - $77.17 CAD
$77.17 CAD

Vendu en lots de : 1

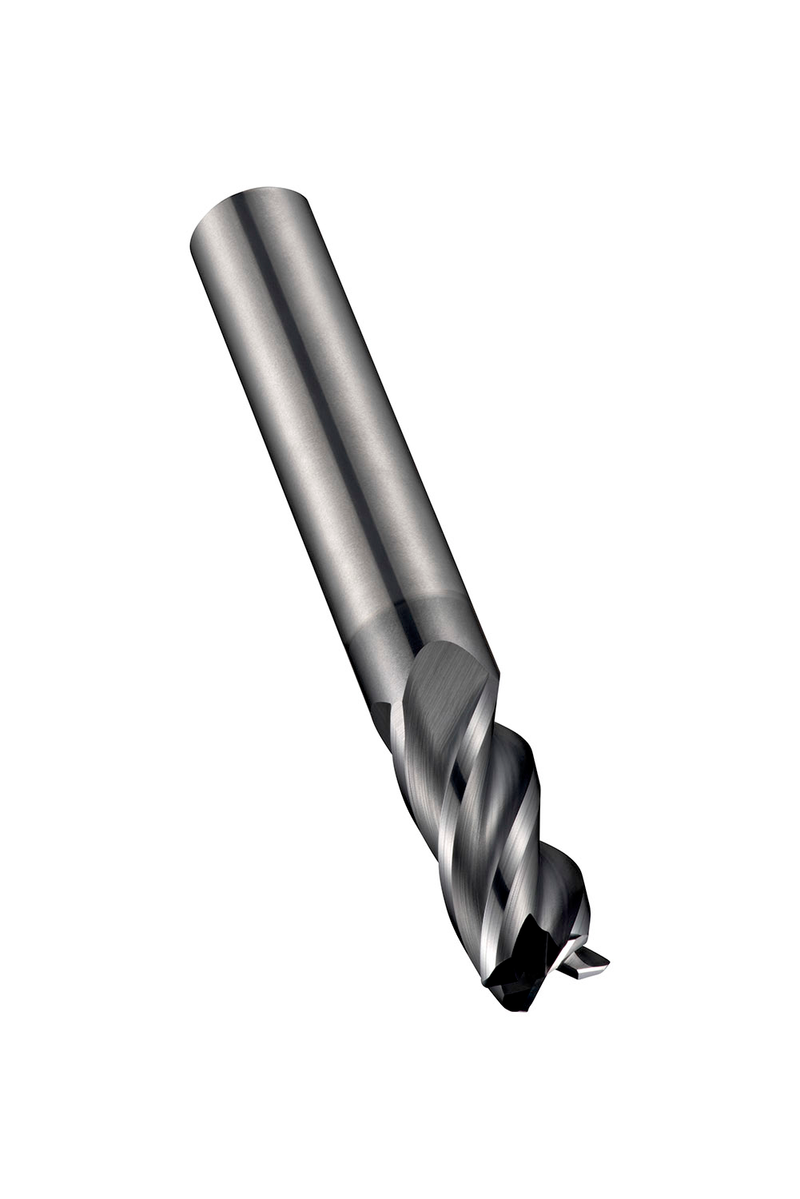

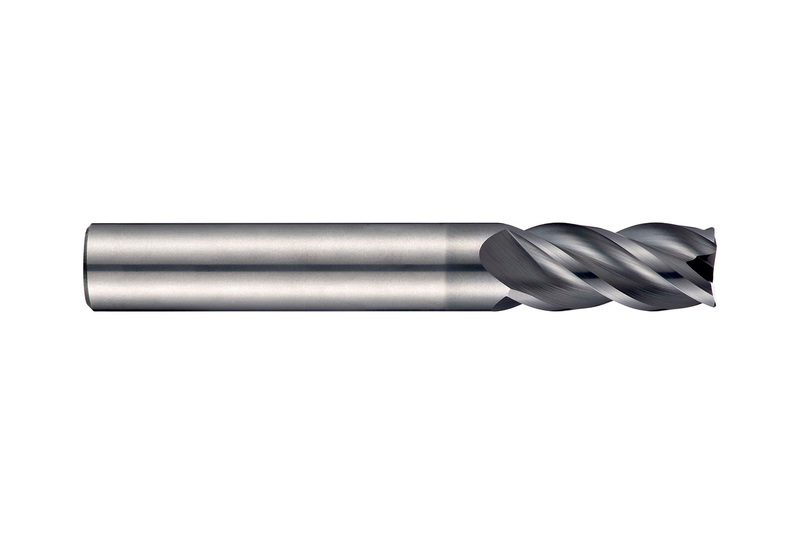

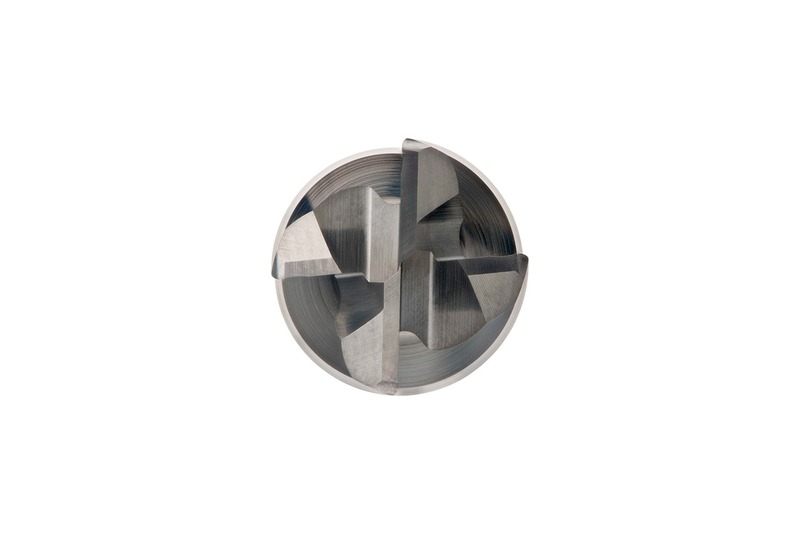

Fraise en bout courte à rayons de coin, 4 dents, diamètre 6 mm, longueur de coupe 16 mm, longueur totale 50 mm et rayon de coin 0,5 mm, selon la norme DORMER, avec une queue cylindrique de 6 mm, en carbure monobloc avec revêtement AlCrN, hélice 40° à pas différentiel et angle de dépouille 10° pour le fraisage d'épaulements, le plongement, le fraisage plongeant progressif, le fraisage en rampe et le fraisage hélicoïdal dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7636.0XR0.5
GradeAlCrN
Product Number6706848
Product FamilyS763

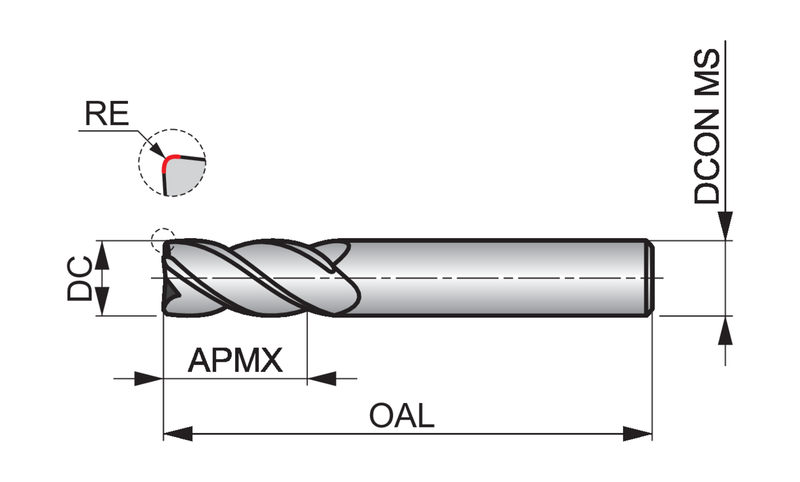

Insert Geometry
Corner Radius — in (RE)0.0197"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706848
EAN7320760683972
File Type Download
S7636.0XR0.5 — Line Drawing PDF Download
