UGC DOR6706862
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$423.39 CAD - $423.39 CAD
$423.39 CAD
$423.39 CAD - $423.39 CAD
$423.39 CAD

Vendu en lots de : 1

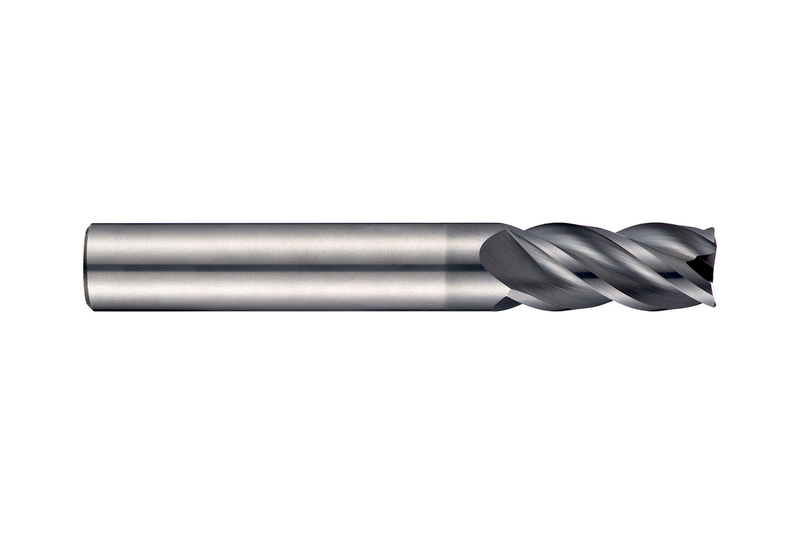

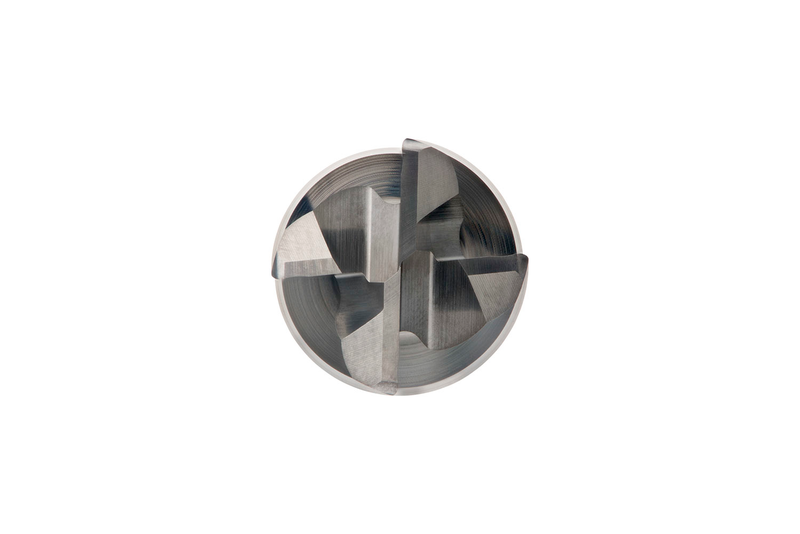

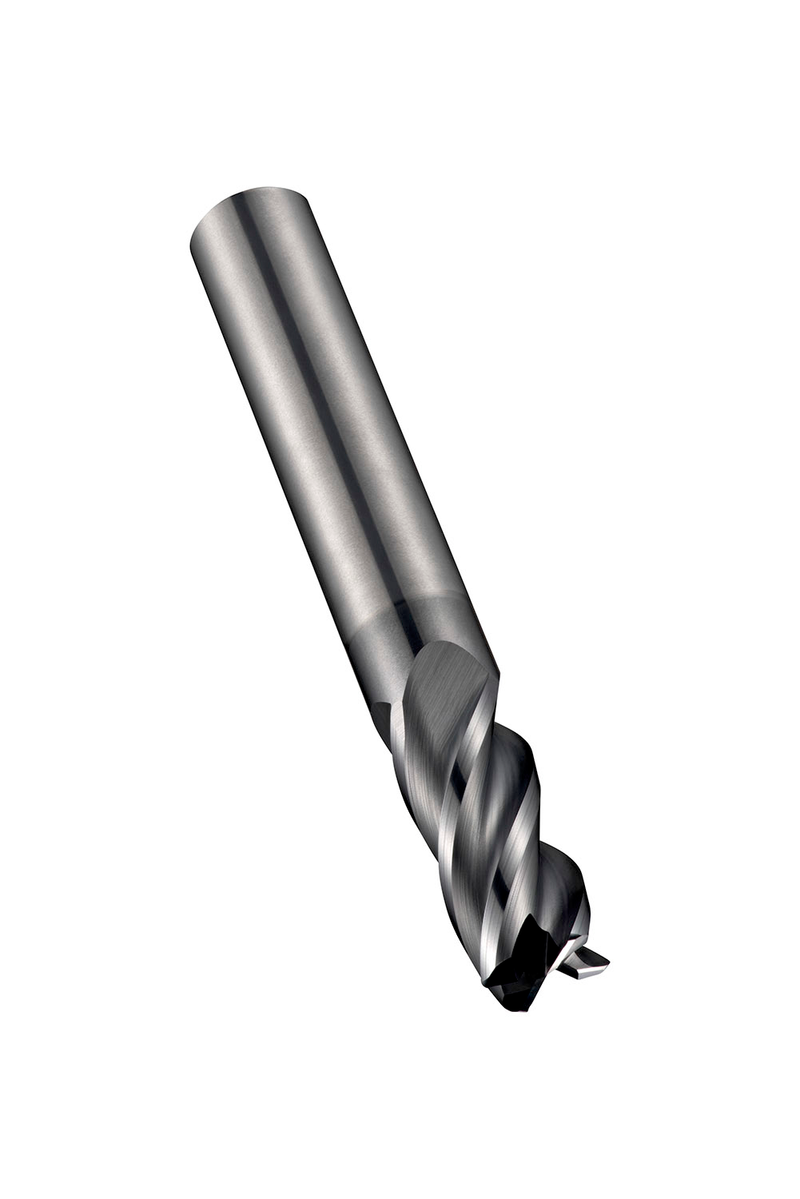

Fraise en carbure monobloc à rayon de coin, série courte, 4 arêtes, diamètre 18 mm, longueur de coupe 38 mm, longueur totale 100 mm et rayon de coin 2 mm, selon la norme DORMER, avec queue cylindrique 18 mm, revêtement AlCrN, hélice 40° avec pas différentiel et angle de dépouille 10°, pour le fraisage d'épaulements, en plongée, en plongée progressive, en ramping et hélicoïdal dans les aciers et aciers moulés, les aciers inoxydables ferritiques, martensitiques et austénitiques, les fontes et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S76318.0XR2.0
GradeAlCrN
Product Number6706862
Product FamilyS763
Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706862
EAN7320760684115
File Type Download

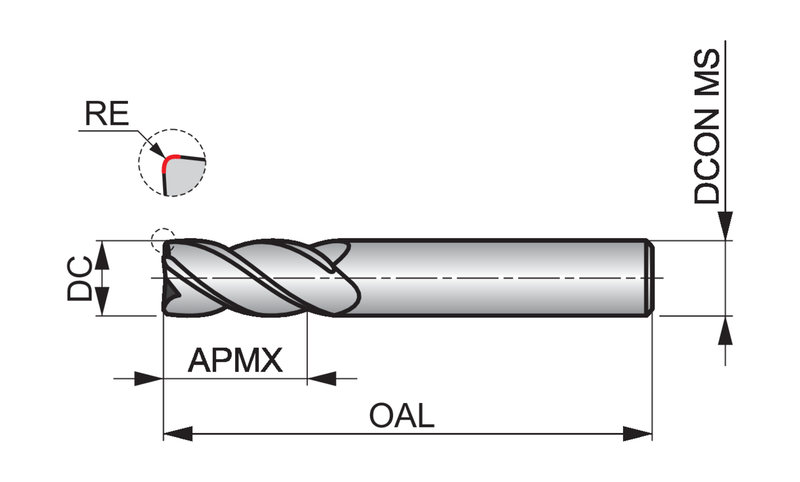

S76318.0XR2.0 — Line Drawing PDF Download
