S6372.0
S6372.0
S6372.0
S6372.0

S6372.0

UGC DOR6706872
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.80 CAD - $51.80 CAD
$51.80 CAD
$51.80 CAD - $51.80 CAD
$51.80 CAD

Vendu en lots de : 1

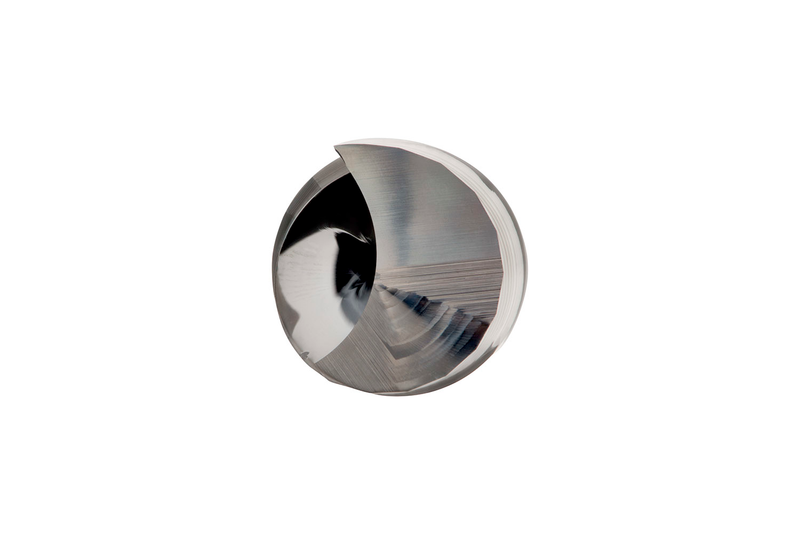

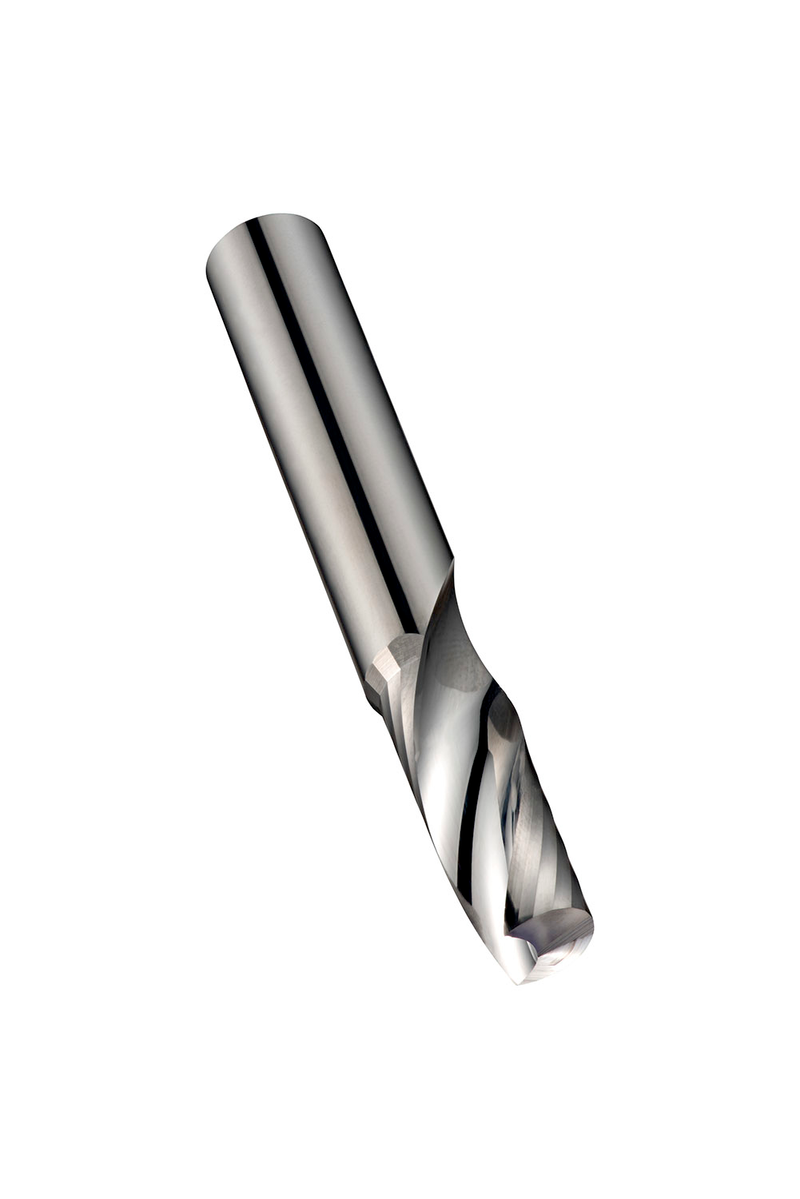

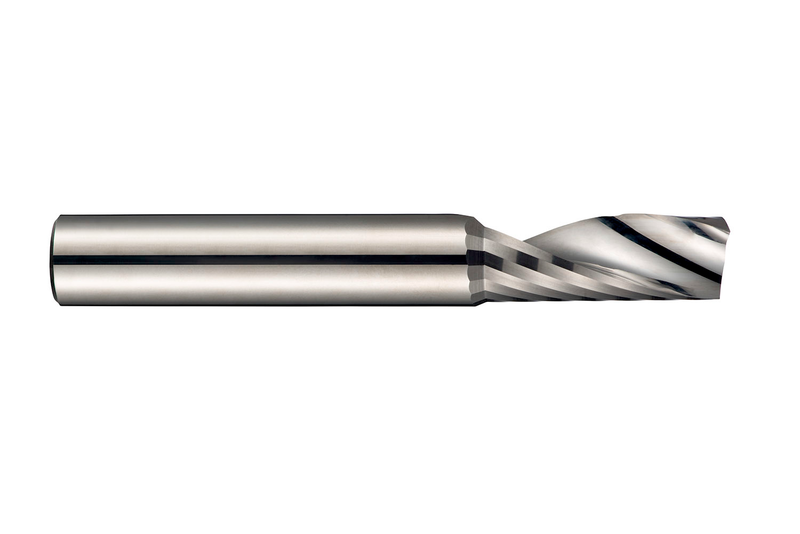

Fraise 1 dent en carbure monobloc, série courte, diamètre 2 mm, avec une longueur de coupe de 10 mm et une longueur totale de 40 mm, selon la norme DORMER, avec une queue cylindrique de 2 mm, finition polie, hélice de 25° et angle de dépouille de 20°, pour l'usinage de rainures dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6372.0
GradePoli
Product Number6706872
Product FamilyS637
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.0787"
Connection Dia. — mm (DCON)2.0 mm
Number of Flutes (NOF)1
Helix Angle (FHA)25.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706872
EAN7320760684214
File Type Download

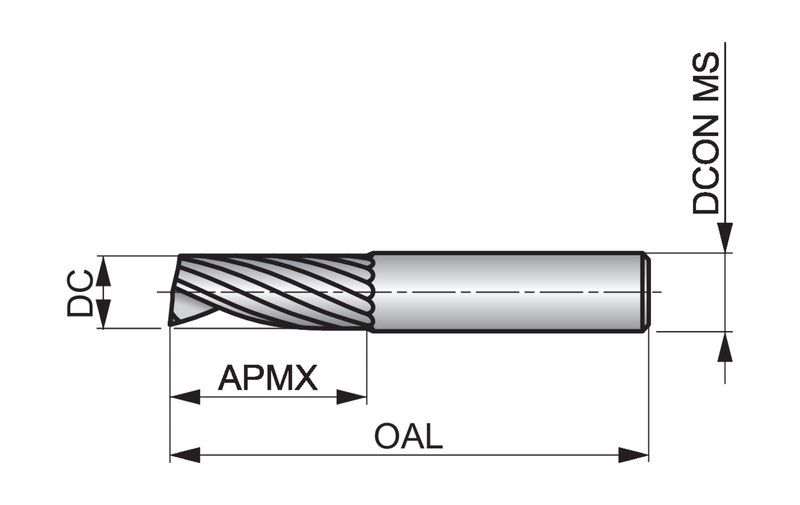

S6372.0 — Line Drawing PDF Download
