S6373.0
S6373.0
S6373.0
S6373.0

S6373.0

UGC DOR6706873
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.80 CAD - $51.80 CAD
$51.80 CAD
$51.80 CAD - $51.80 CAD
$51.80 CAD

Vendu en lots de : 1

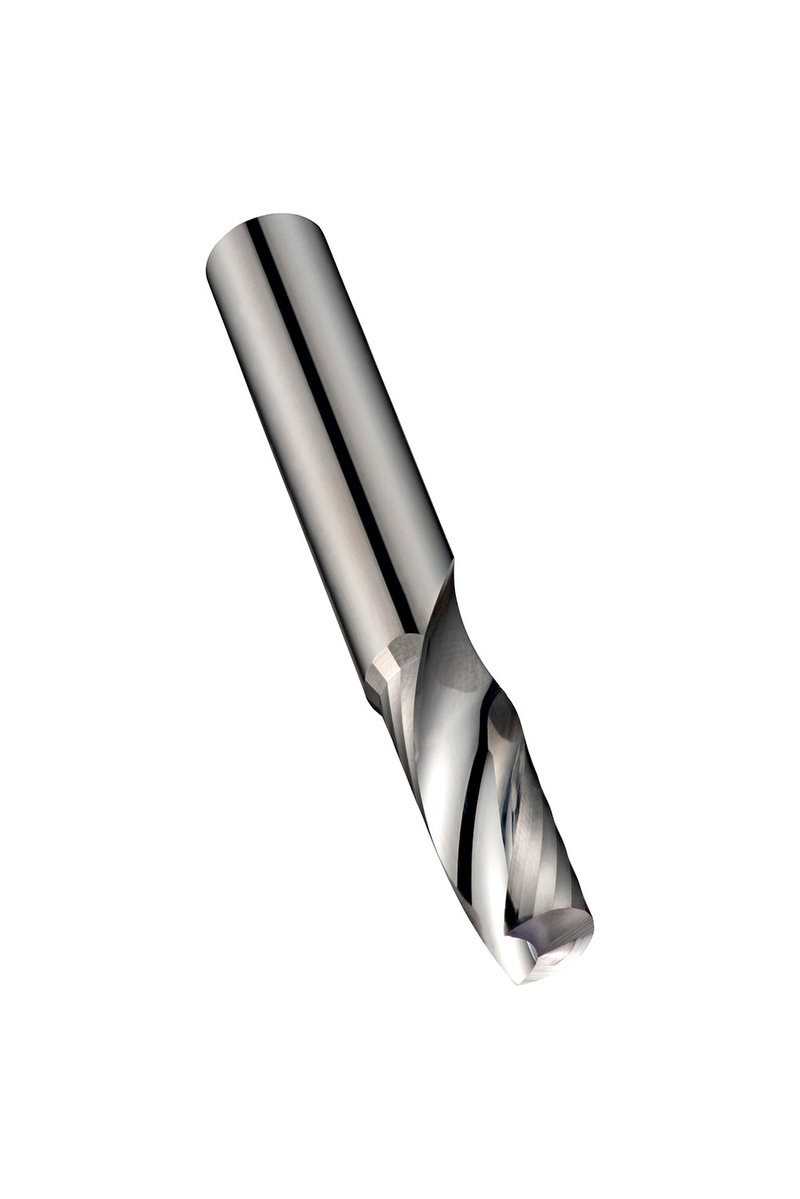

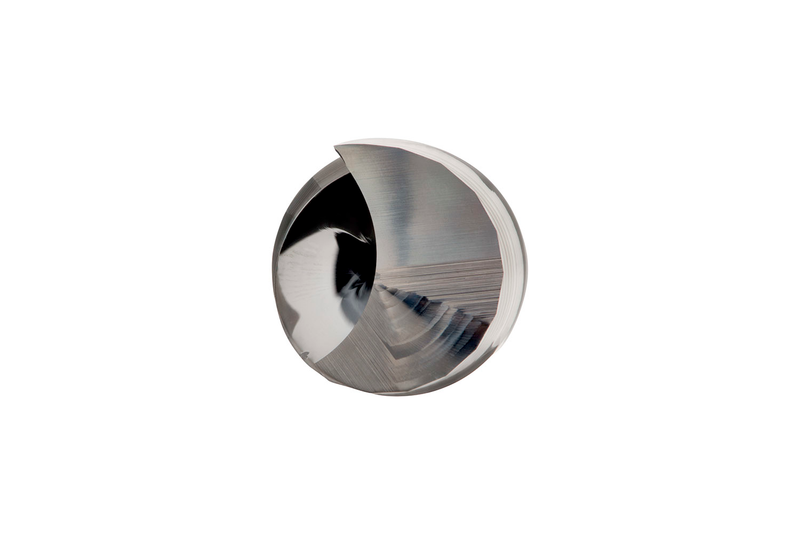

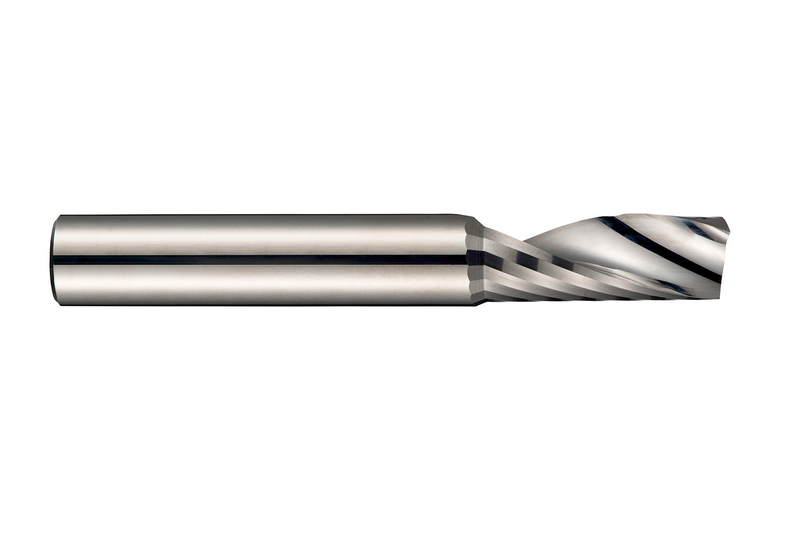

Fraise 1 dent courte, diamètre 3mm, longueur de coupe 12mm et longueur totale 40mm, selon le standard DORMER avec queue cylindrique 3mm, en carbure monobloc, finition polie, hélice 25° et angle de dépouille 20° pour le fraisage de rainures dans les métaux non-ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6373.0
GradePoli
Product Number6706873
Product FamilyS637
Insert Geometry
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)1
Helix Angle (FHA)25.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706873
EAN7320760684221
File Type Download

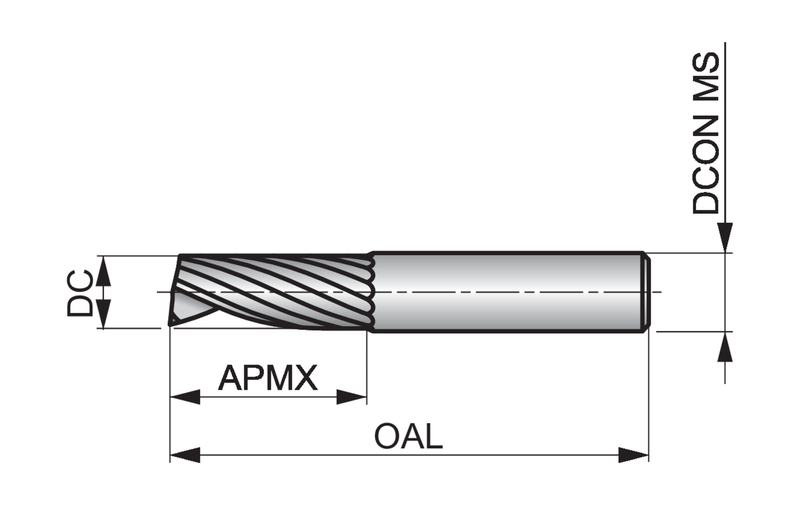

S6373.0 — Line Drawing PDF Download
