UGC DOR6706874
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.56 CAD - $56.56 CAD
$56.56 CAD
$56.56 CAD - $56.56 CAD
$56.56 CAD

Vendu en lots de : 1

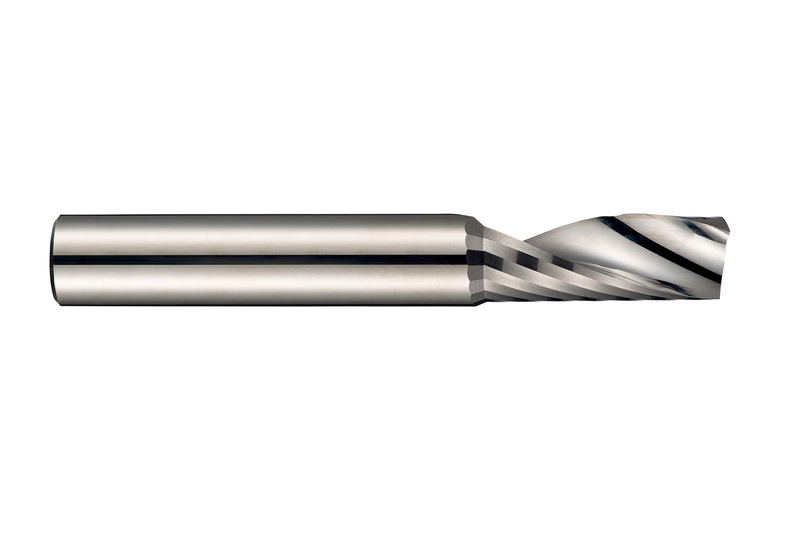

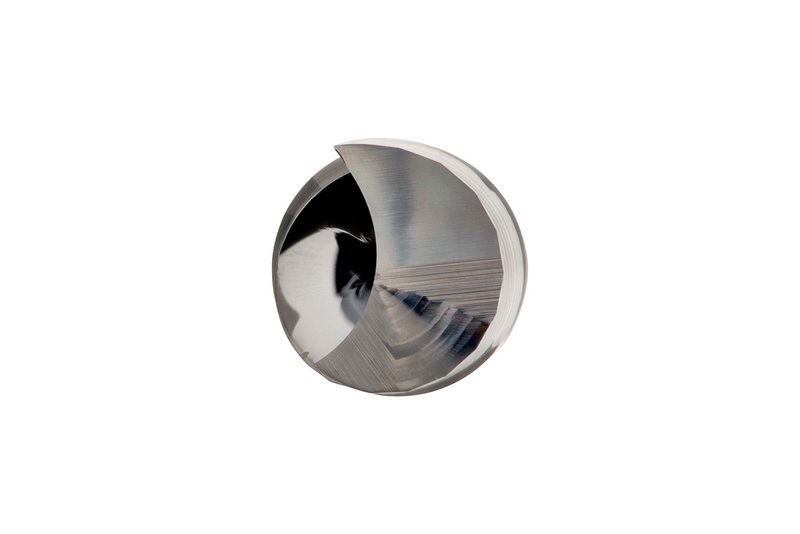

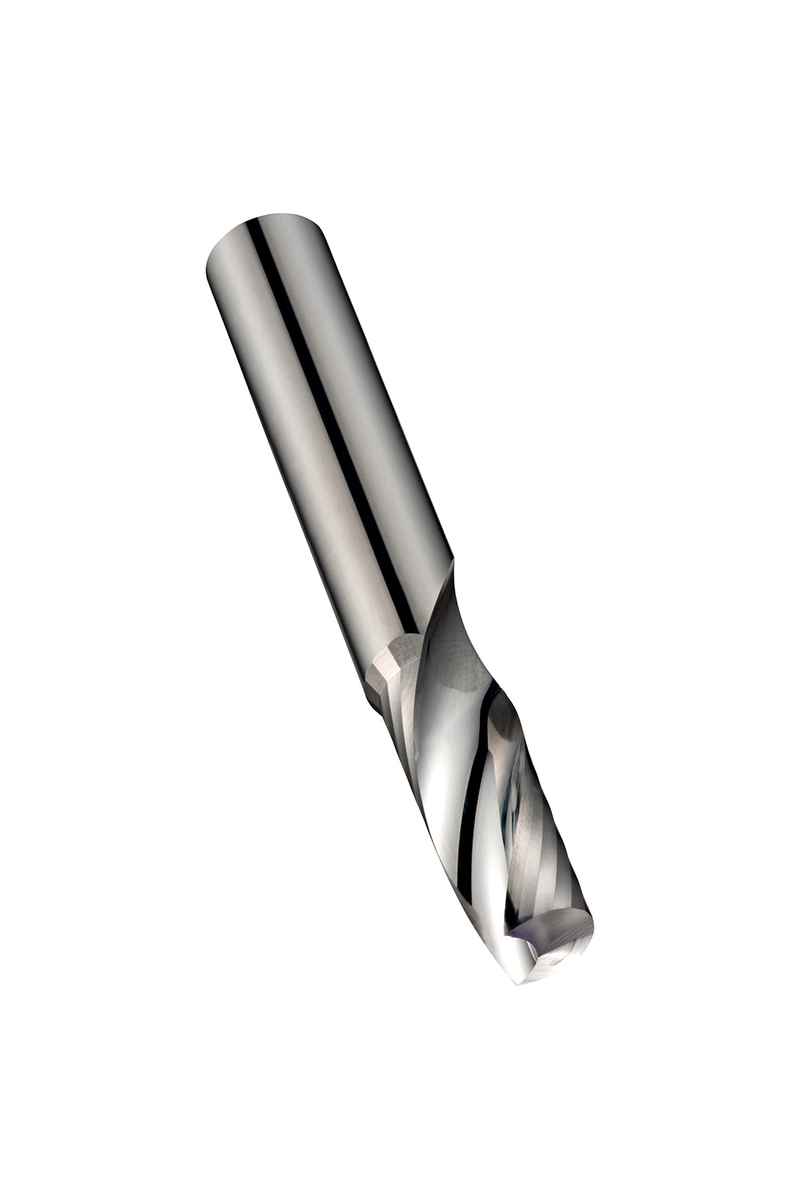

Fraise monobloc à queue cylindrique, courte, 1 dent, diamètre 4 mm avec une longueur de coupe de 15 mm et une longueur totale de 50 mm, selon la norme DORMER avec une queue lisse de 4 mm, en carbure monobloc avec finition polie, hélice de 25° et angle de dépouille de 20° pour le fraisage de rainures dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6374.0
GradePoli
Product Number6706874
Product FamilyS637

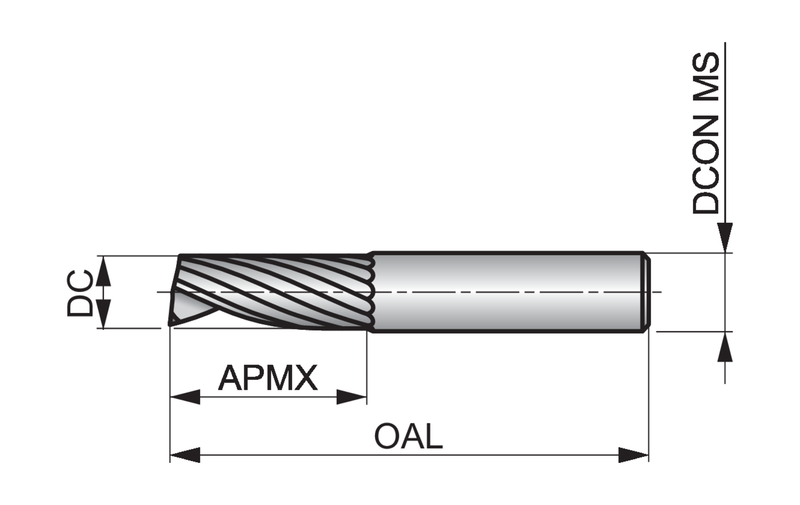

Insert Geometry
Depth of Cut Max — in (APMX)0.5906"
Depth of Cut Max — mm (APMX)15.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)1
Helix Angle (FHA)25.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706874
EAN7320760684238
File Type Download
S6374.0 — Line Drawing PDF Download
