UGC DOR6706875
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.61 CAD - $57.61 CAD
$57.61 CAD
$57.61 CAD - $57.61 CAD
$57.61 CAD

Vendu en lots de : 1

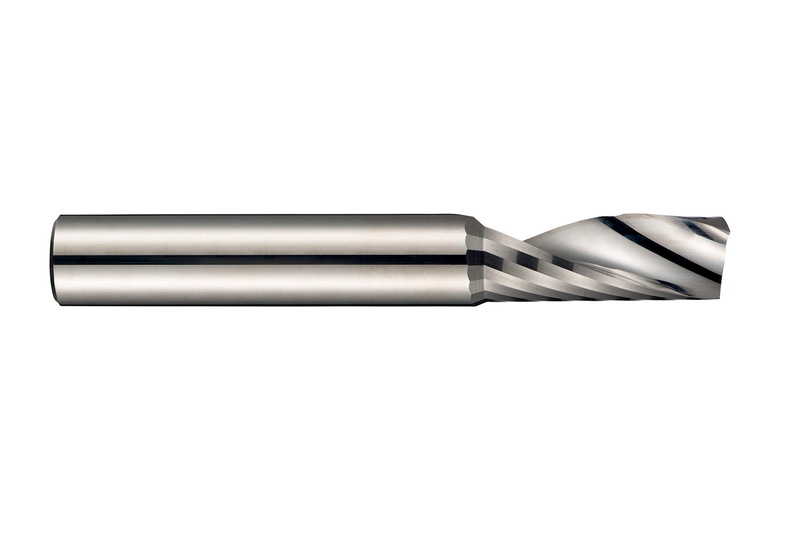

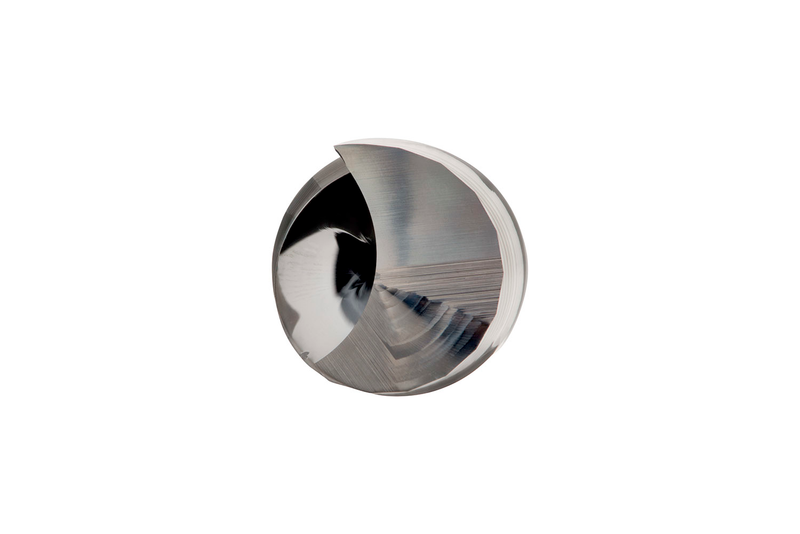

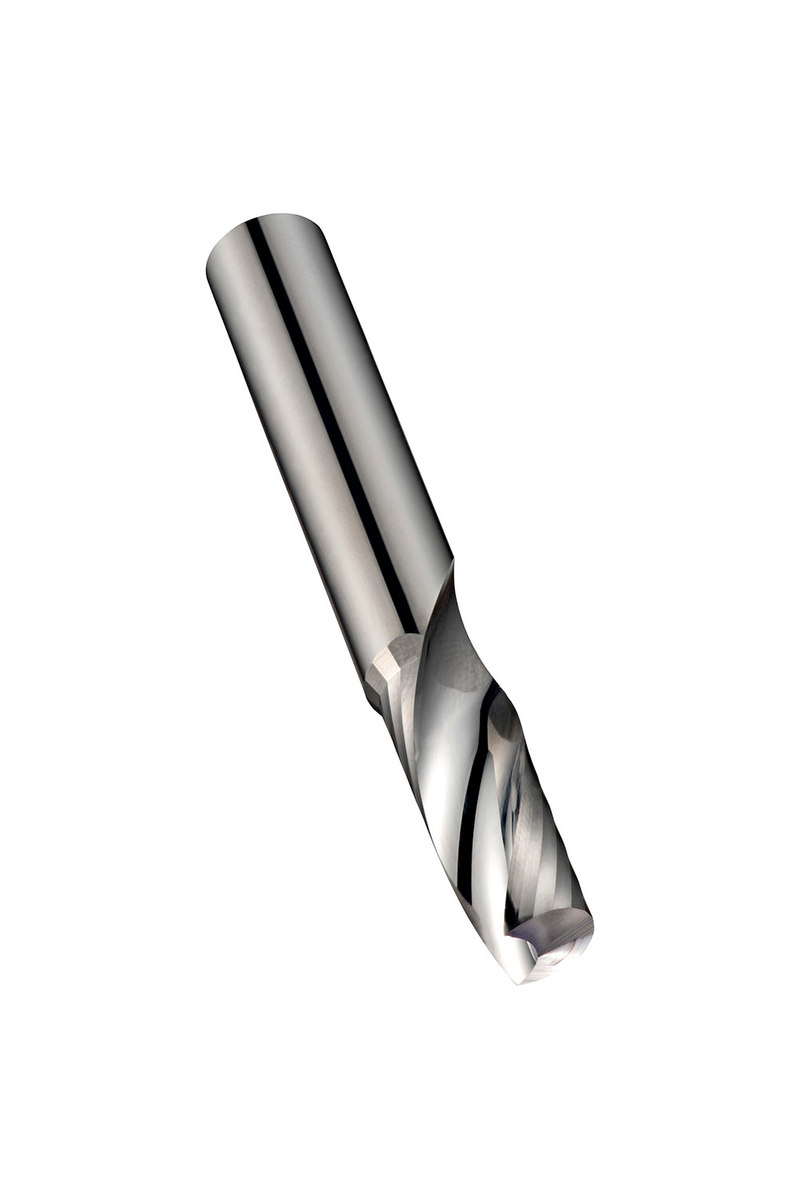

Fraise monobloc en carbure avec queue cylindrique de 5 mm, 1 lèvre, diamètre 5 mm, longueur de coupe 16 mm, longueur totale 50 mm, conforme à la norme DORMER, finition polie, hélice à 25° et angle de dépouille de 20° pour le rainurage dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6375.0
GradePoli
Product Number6706875
Product FamilyS637
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)1
Helix Angle (FHA)25.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706875
EAN7320760684245
File Type Download

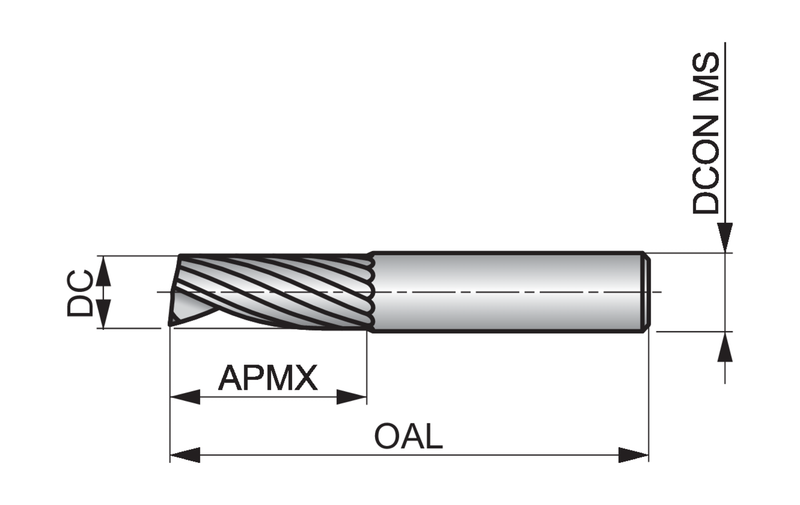

S6375.0 — Line Drawing PDF Download
