S6376.0
S6376.0
S6376.0
S6376.0

S6376.0

UGC DOR6706876
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.61 CAD - $57.61 CAD
$57.61 CAD
$57.61 CAD - $57.61 CAD
$57.61 CAD

Vendu en lots de : 1

Fraise en bout série courte 1 dent, diamètre 6mm avec longueur de coupe 20mm et longueur totale 60mm, selon norme DORMER avec queue cylindrique 6mm, en carbure monobloc avec finition polie, hélice 25° et angle de dépouille 20° pour le fraisage de rainures dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6376.0
GradePoli
Product Number6706876
Product FamilyS637
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm

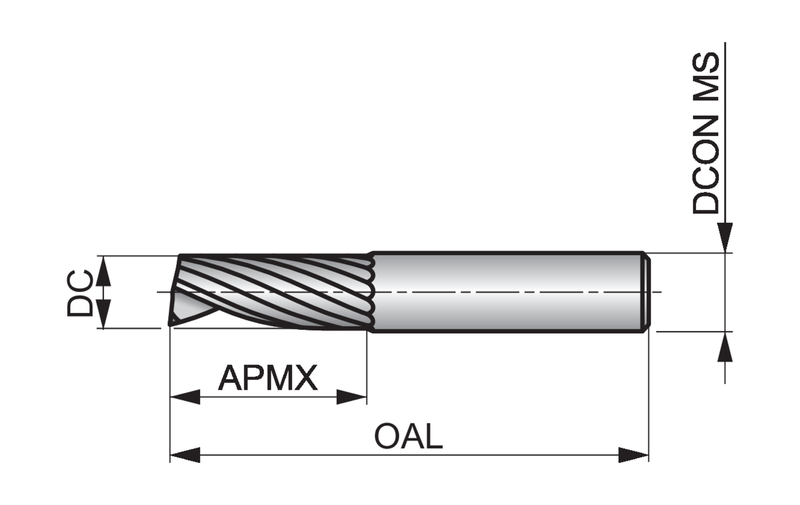

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)1
Helix Angle (FHA)25.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706876
EAN7320760684252
File Type Download
S6376.0 — Line Drawing PDF Download
