UGC DOR6706877
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.34 CAD - $80.34 CAD
$80.34 CAD
$80.34 CAD - $80.34 CAD
$80.34 CAD

Vendu en lots de : 1

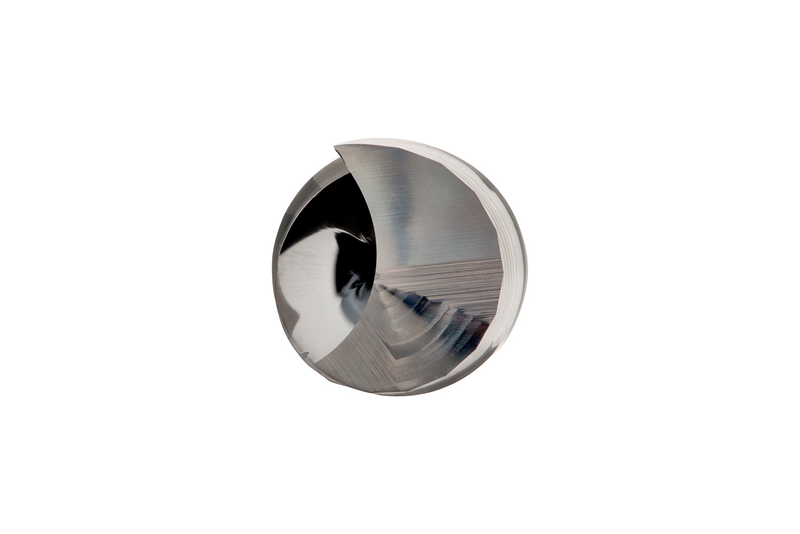

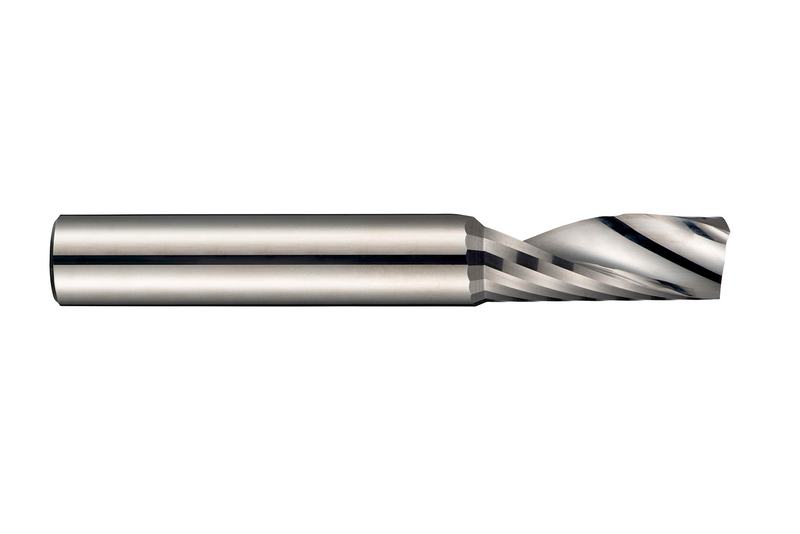

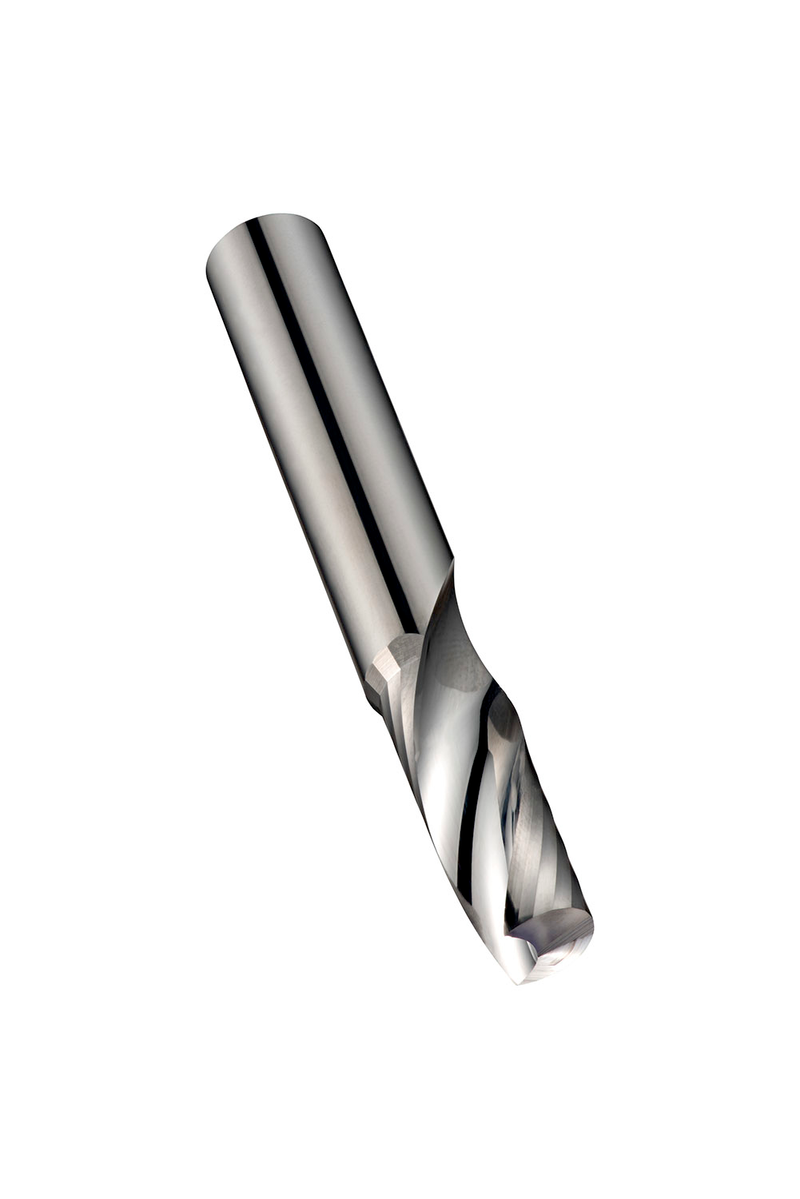

Fraise 1 dent, série courte, diamètre 8 mm avec une longueur de coupe de 22 mm et une longueur totale de 63 mm, selon la norme DORMER avec une queue cylindrique de 8 mm, en carbure monobloc avec finition polie, hélice de 25° et angle de dépouille de 20° pour le fraisage de rainures dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S6378.0
GradePoli
Product Number6706877
Product FamilyS637
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm

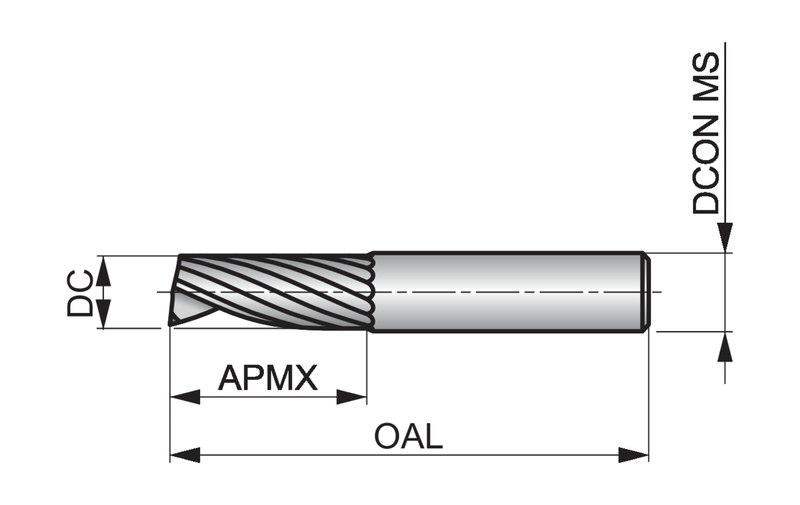

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)1
Helix Angle (FHA)25.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706877
EAN7320760684269
File Type Download
S6378.0 — Line Drawing PDF Download
