UGC DOR6706878
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.24 CAD - $106.24 CAD
$106.24 CAD
$106.24 CAD - $106.24 CAD
$106.24 CAD

Vendu en lots de : 1

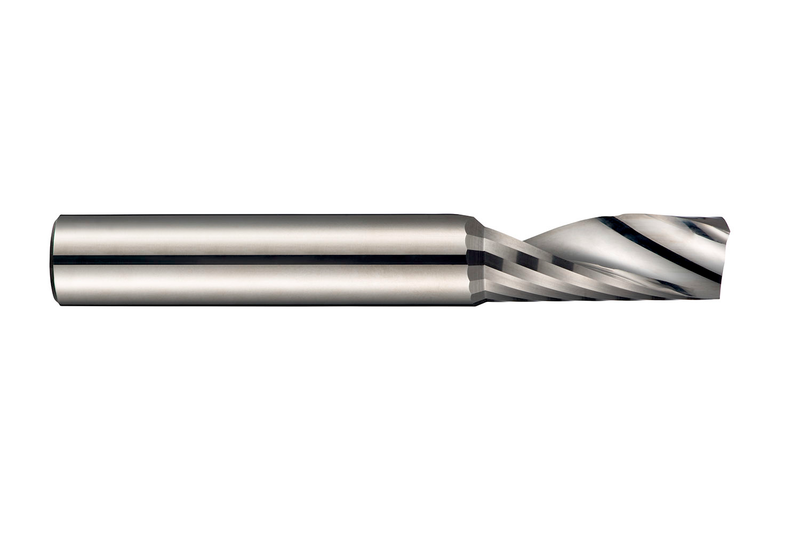

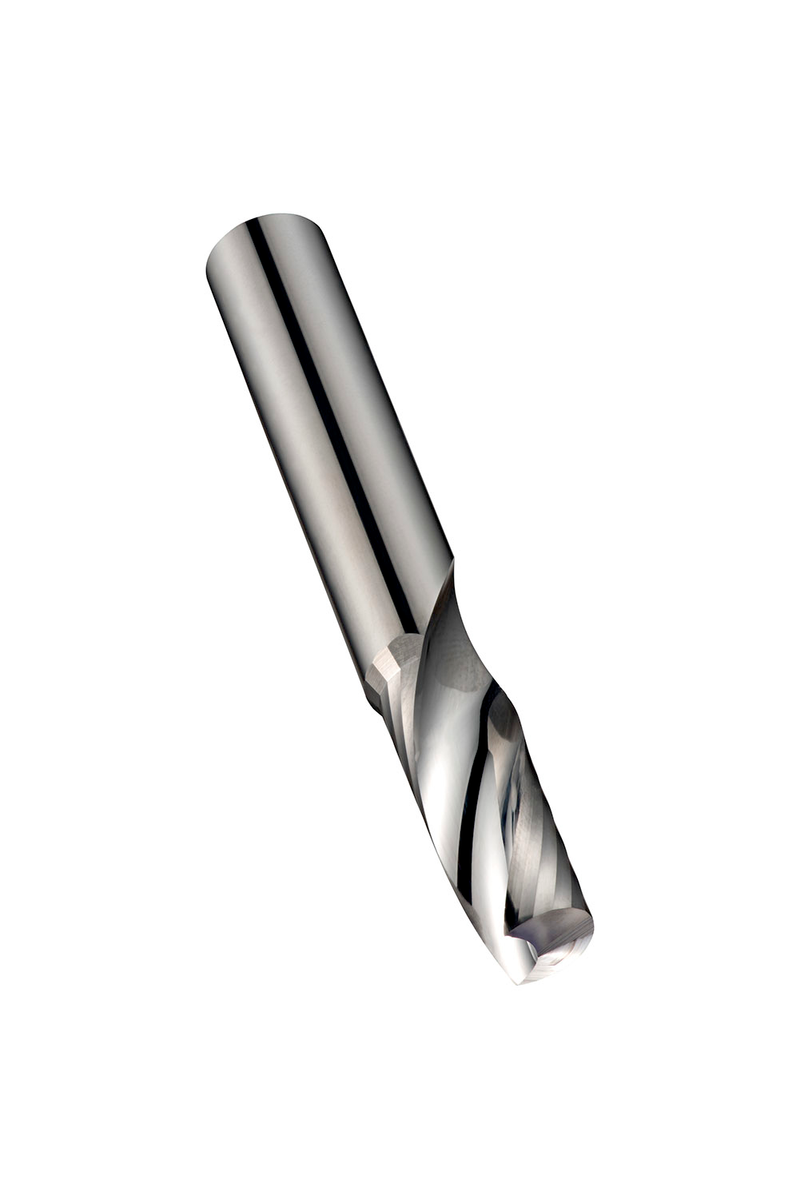

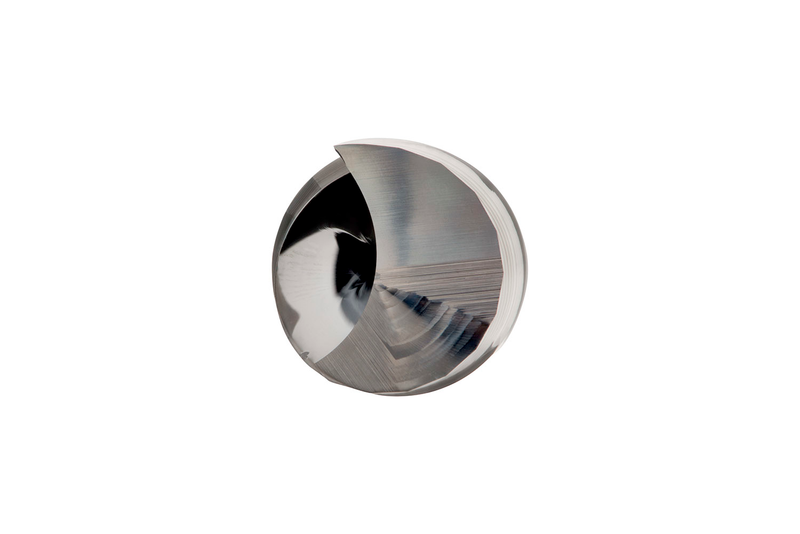

Fraise 1 dent courte, diamètre 10 mm avec une longueur de coupe de 25 mm et une longueur totale de 72 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, en carbure monobloc avec finition polie, hélice de 25° et angle de dépouille de 20° pour le fraisage de rainures dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S63710.0
GradePoli
Product Number6706878
Product FamilyS637
Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm

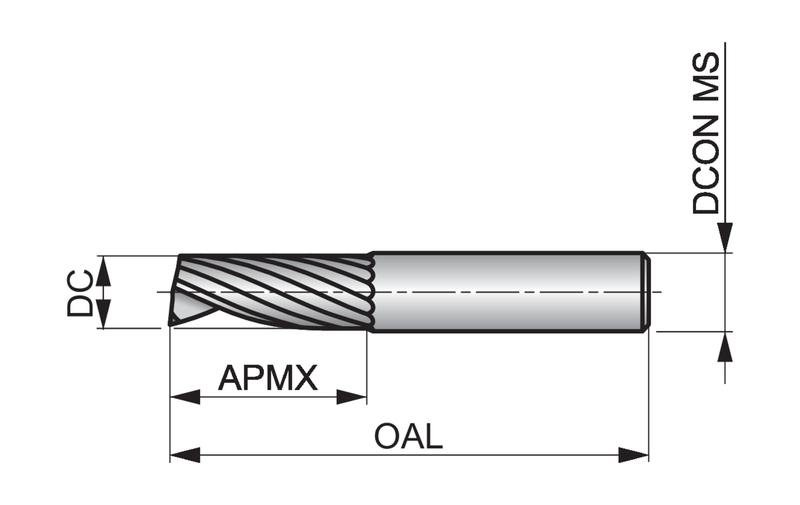

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)1
Helix Angle (FHA)25.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706878
EAN7320760684276
File Type Download
S63710.0 — Line Drawing PDF Download
