UGC DOR6706879
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$145.89 CAD - $145.89 CAD
$145.89 CAD
$145.89 CAD - $145.89 CAD
$145.89 CAD

Vendu en lots de : 1

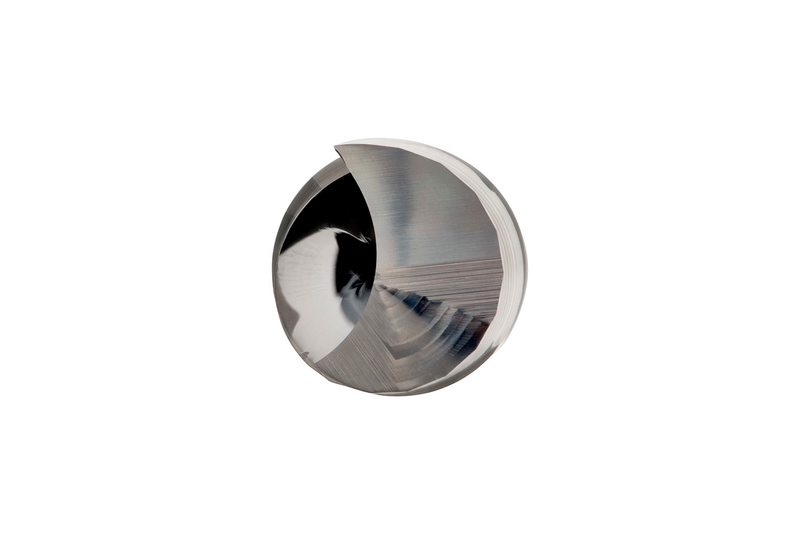

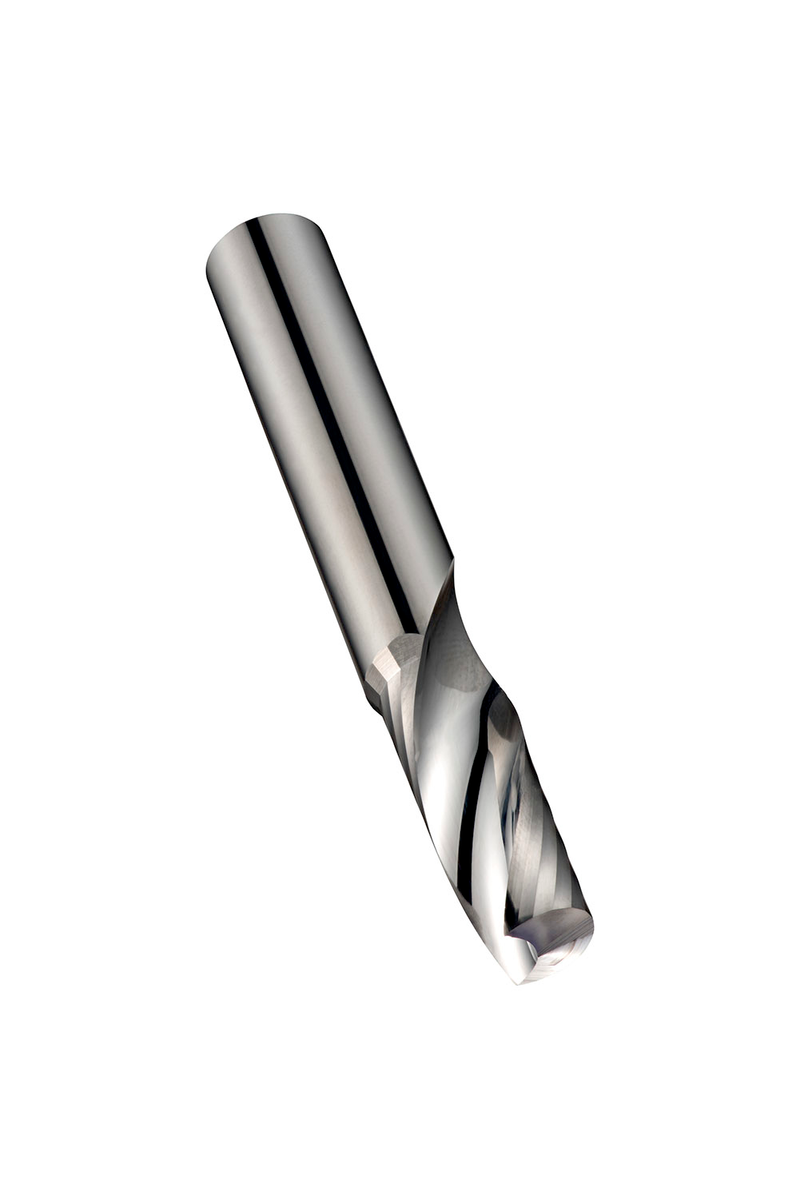

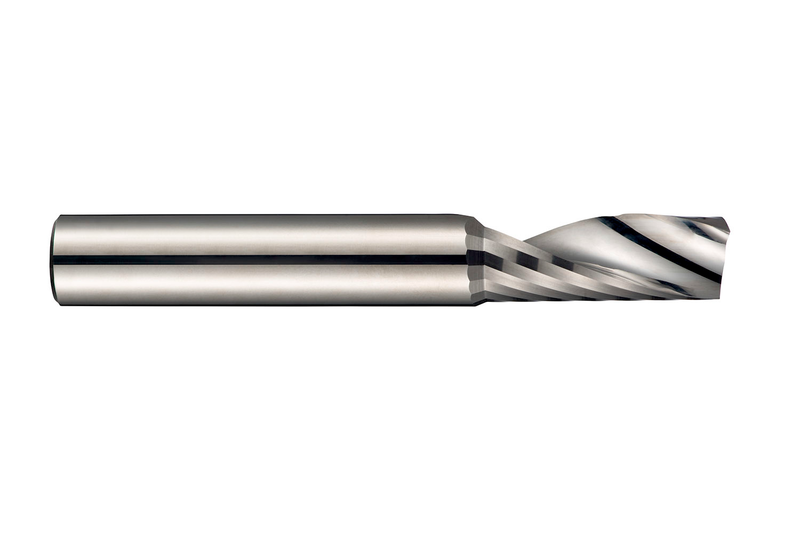

Fraise 1 dent en carbure monobloc série courte, diamètre 12 mm, longueur de coupe 30 mm et longueur totale 83 mm, selon la norme DORMER avec queue cylindrique de 12 mm, finition polie, hélice 25° et angle de dépouille 20° pour le rainurage dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S63712.0
GradePoli
Product Number6706879
Product FamilyS637
Insert Geometry
Depth of Cut Max — in (APMX)1.1811"
Depth of Cut Max — mm (APMX)30.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)1
Helix Angle (FHA)25.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706879
EAN7320760684283
File Type Download

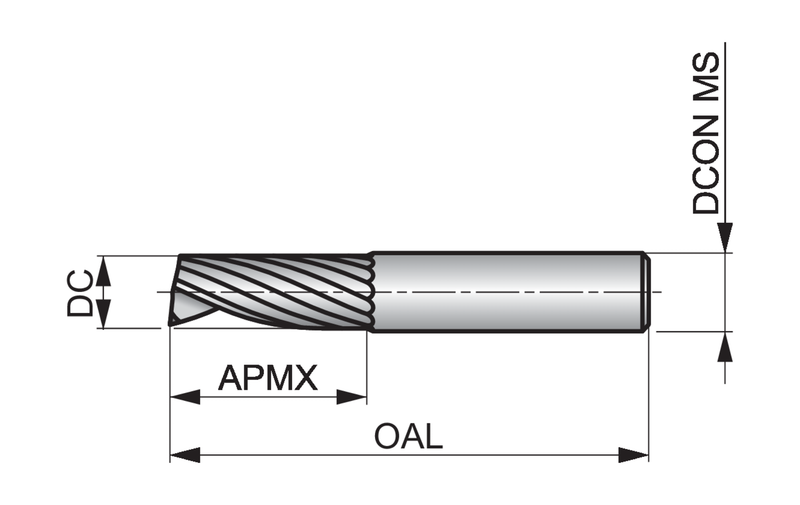

S63712.0 — Line Drawing PDF Download
