S63810.3
S63810.3
S63810.3
S63810.3

S63810.3

UGC DOR6706882
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$169.14 CAD - $169.14 CAD
$169.14 CAD
$169.14 CAD - $169.14 CAD
$169.14 CAD

Vendu en lots de : 1

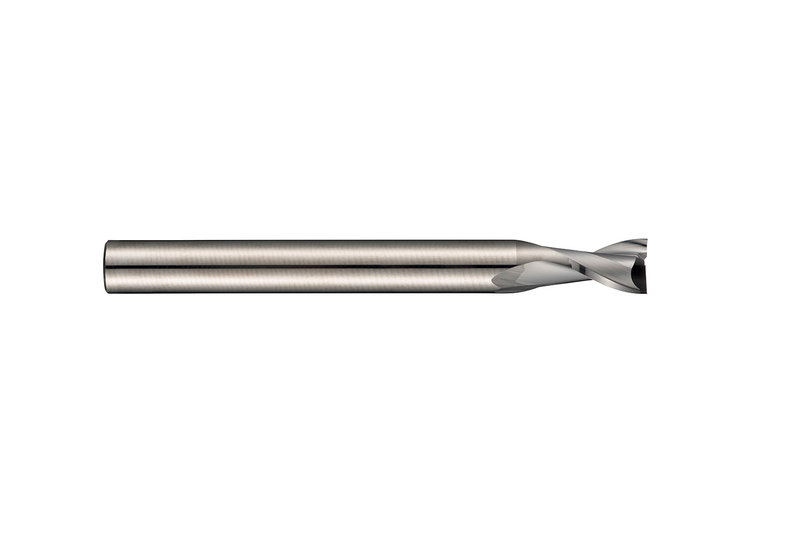

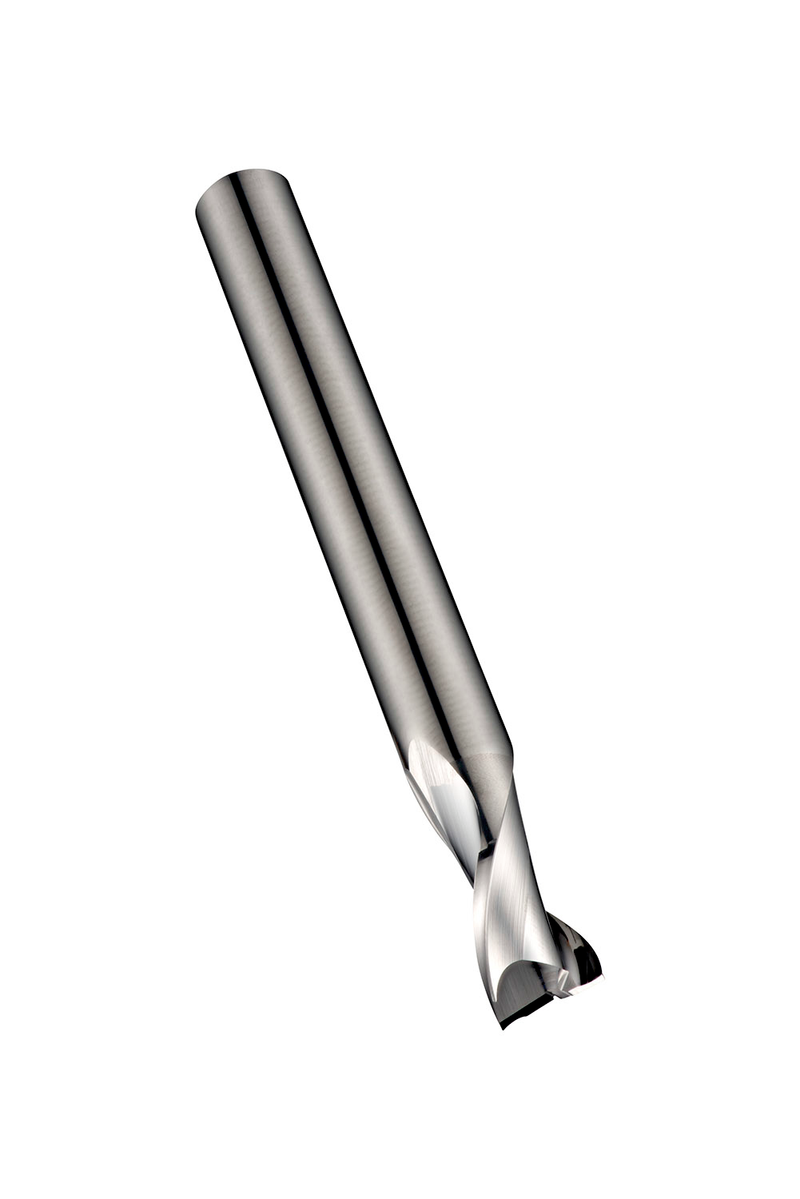

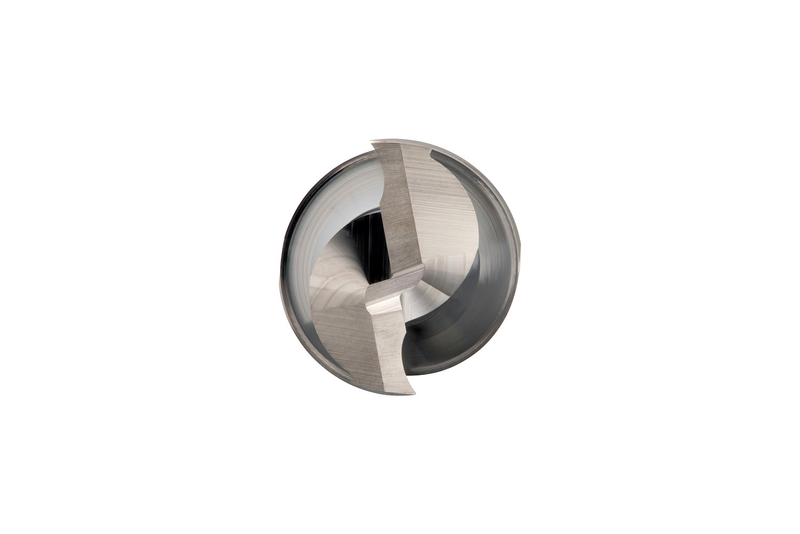

Fraise 2 dents, série extra courte, diamètre 10,3 mm avec une longueur de coupe de 14 mm, une longueur totale de 125 mm et des rayons de coin de 0,1 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, en carbure monobloc avec finition polie, hélice de 30° et angle de dépouille de 20° pour le fraisage en bout et le fraisage de rainures dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S63810.3
GradePoli
Product Number6706882
Product FamilyS638
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm

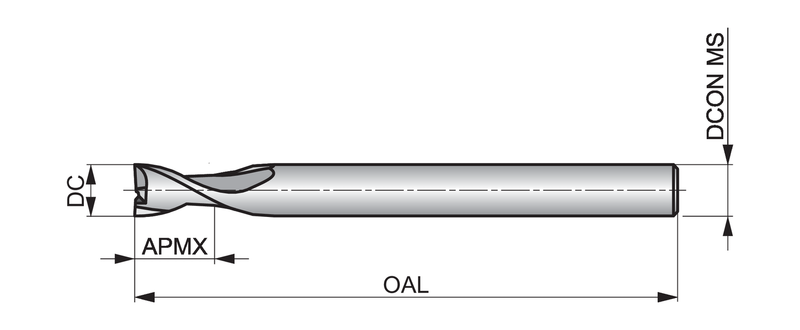

Dimensions
Cutting Diameter — in (DC)0.4055"
Cutting Diameter — mm (DC)10.3 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706882
EAN7320760684313
File Type Download
S63810.3 — Line Drawing PDF Download
