UGC DOR6706885
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$495.27 CAD - $495.27 CAD
$495.27 CAD
$495.27 CAD - $495.27 CAD
$495.27 CAD

Vendu en lots de : 1

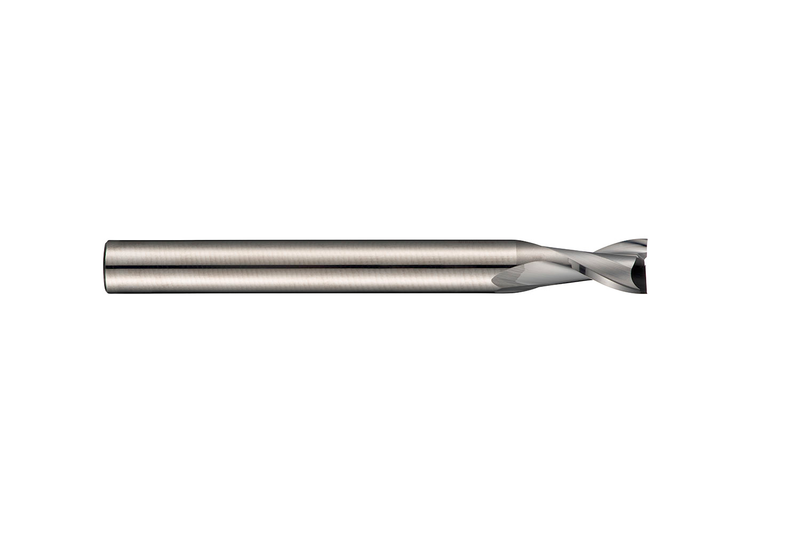

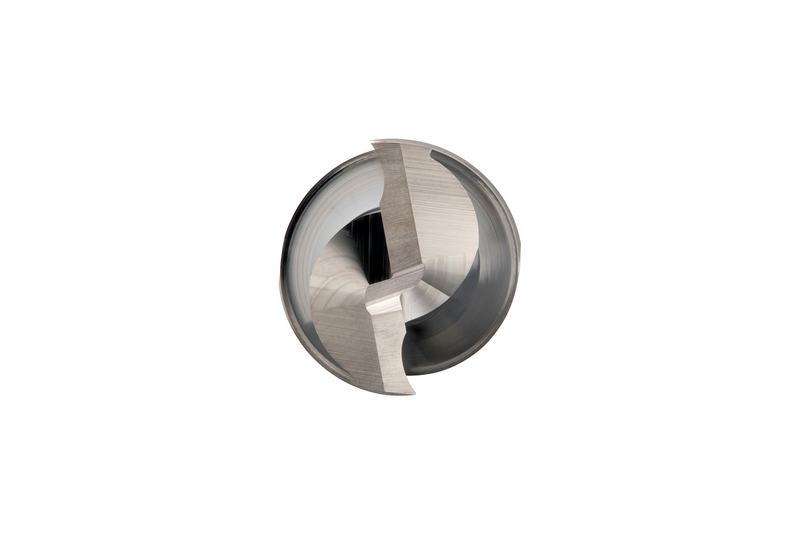

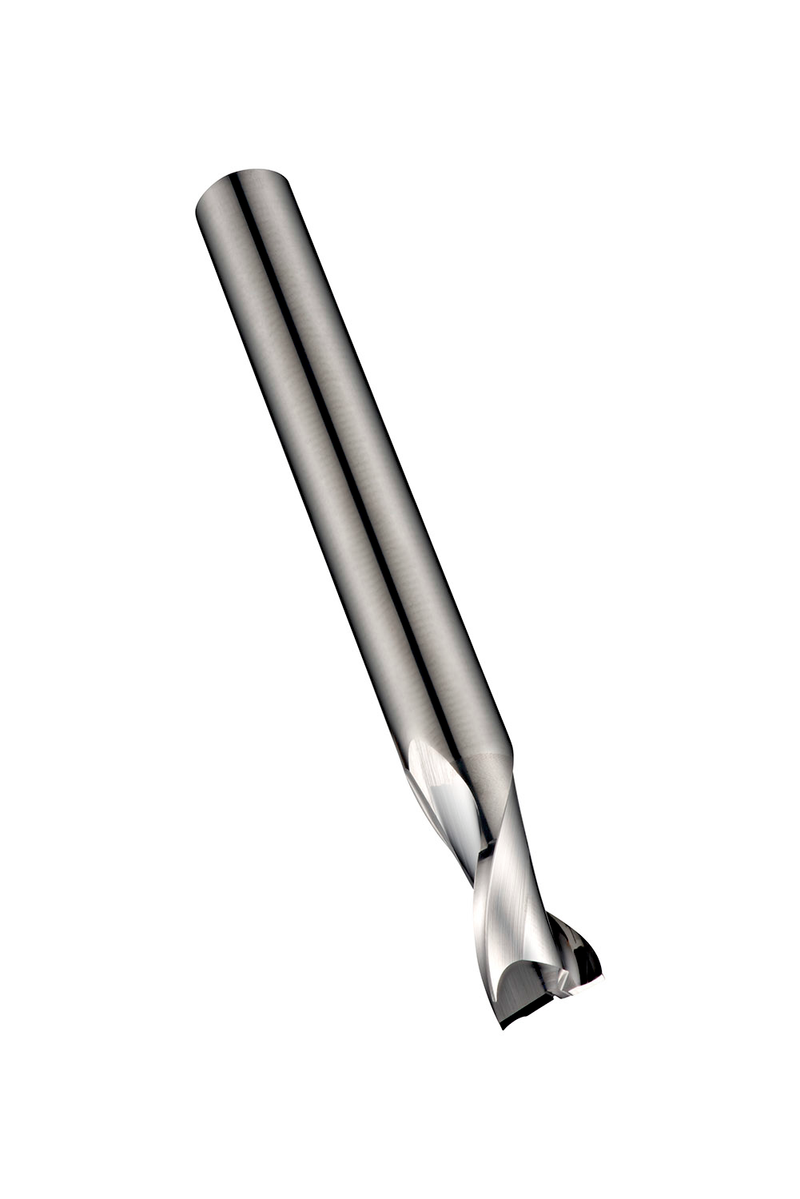

Fraise 2 tailles en carbure monobloc, série extra-courte, diamètre 20,3mm, coupe utile 25mm, longueur totale 125mm, rayon de coin 0,1mm, selon le standard DORMER, queue cylindrique 20mm, finition polie, hélice 30° et angle de dépouille 20° pour le fraisage d'épaulement et de rainure dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S63820.3
GradePoli
Product Number6706885
Product FamilyS638
Insert Geometry
Corner Radius — in (RE)0.0039"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm

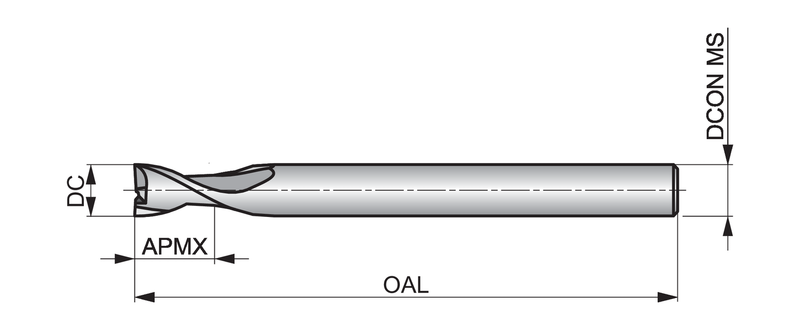

Dimensions
Cutting Diameter — in (DC)0.7992"
Cutting Diameter — mm (DC)20.3 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706885
EAN7320760684344
File Type Download
S63820.3 — Line Drawing PDF Download
