S73912.0
S73912.0
S73912.0
S73912.0

S73912.0

UGC DOR6706892
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.17 CAD - $151.17 CAD
$151.17 CAD
$151.17 CAD - $151.17 CAD
$151.17 CAD

Vendu en lots de : 1

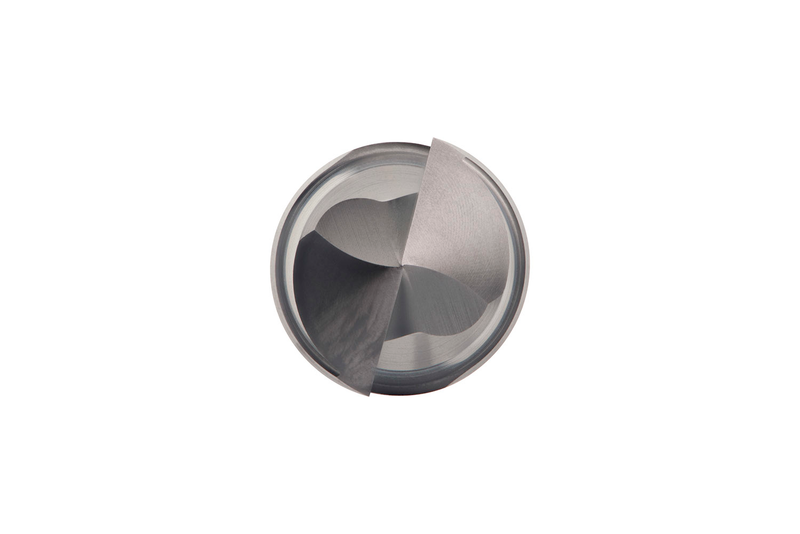

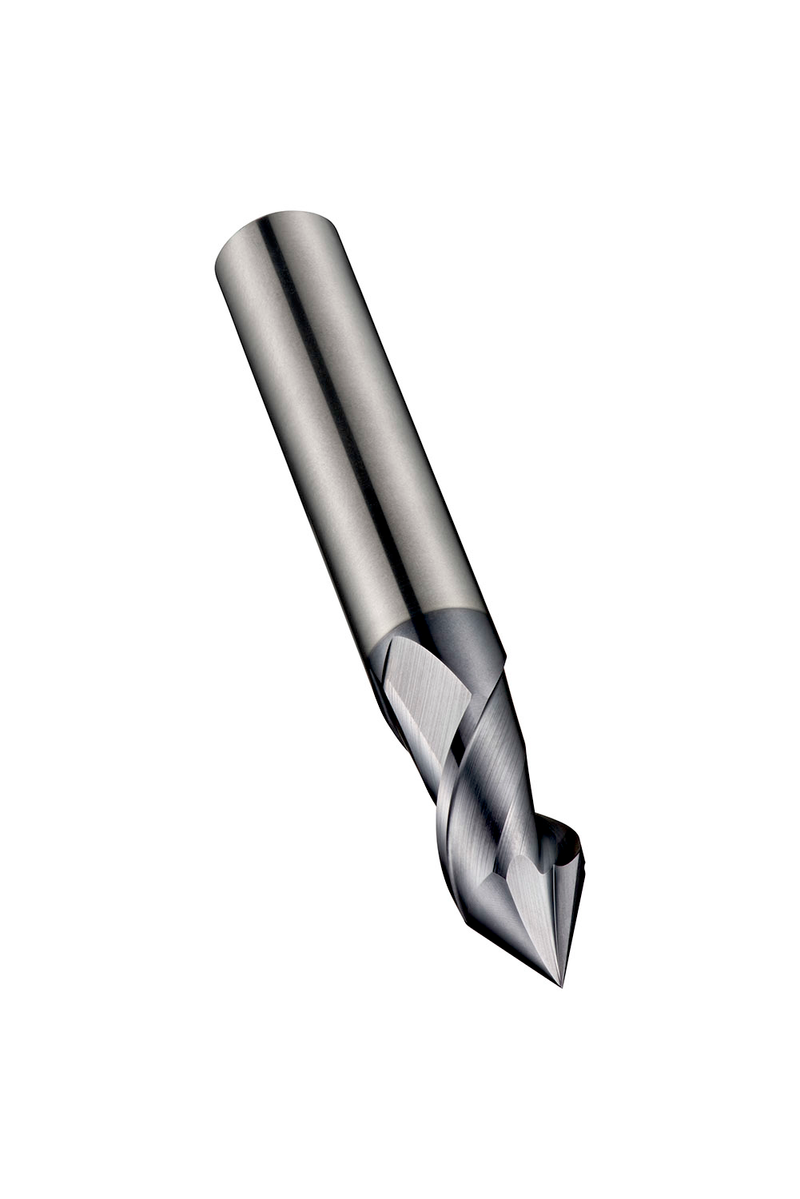

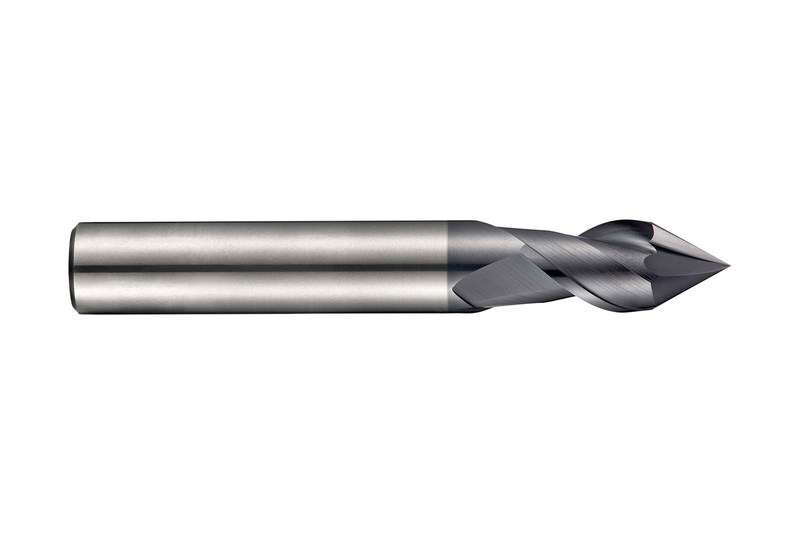

Fraise à chanfreiner 60° série courte à 2 dents, diamètre 12mm avec 25mm de longueur de coupe et 75mm de longueur totale, selon la norme DORMER avec une queue cylindrique de 12mm, carbure monobloc avec revêtement AlTiN, hélice 40° et angle de dépouille 10° pour le fraisage de chanfreins dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte, l'aluminium corroyé, moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S73912.0
GradeAlTiN
Product Number6706892
Product FamilyS739
Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm

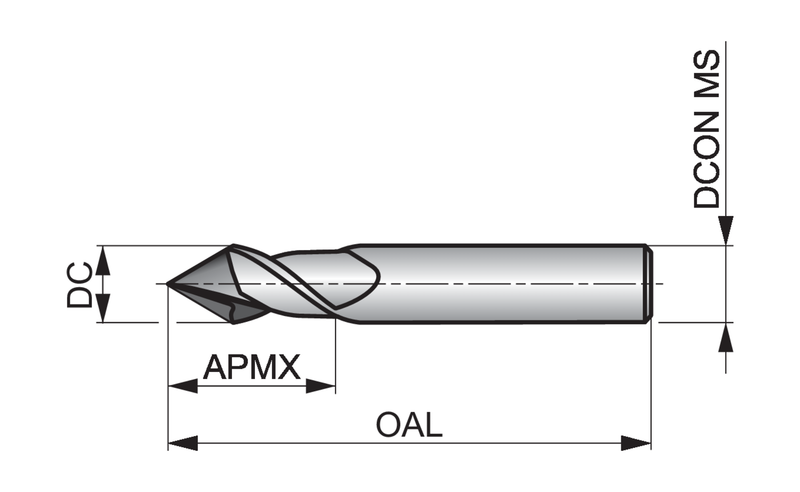

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706892
EAN7320760684412
File Type Download
S73912.0 — Line Drawing PDF Download
