S26018.0
S26018.0
S26018.0
S26018.0

S26018.0

UGC DOR6706922
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$356.79 CAD - $356.79 CAD
$356.79 CAD
$356.79 CAD - $356.79 CAD
$356.79 CAD

Vendu en lots de : 1

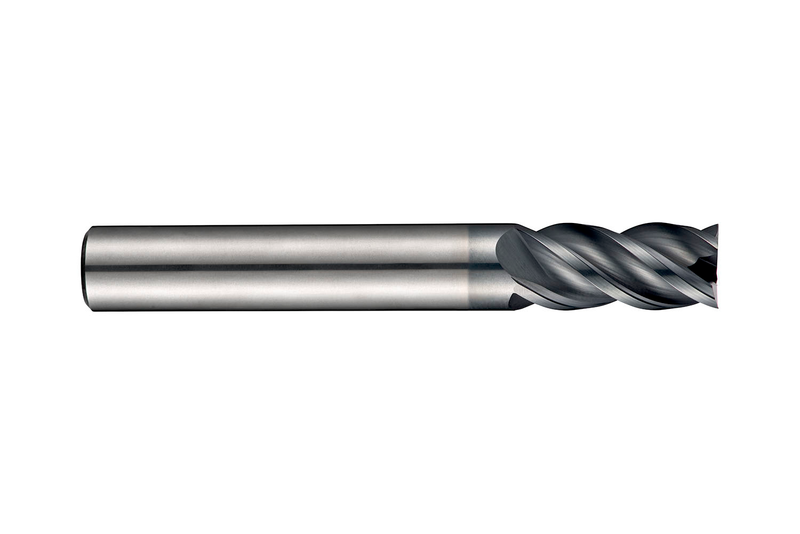

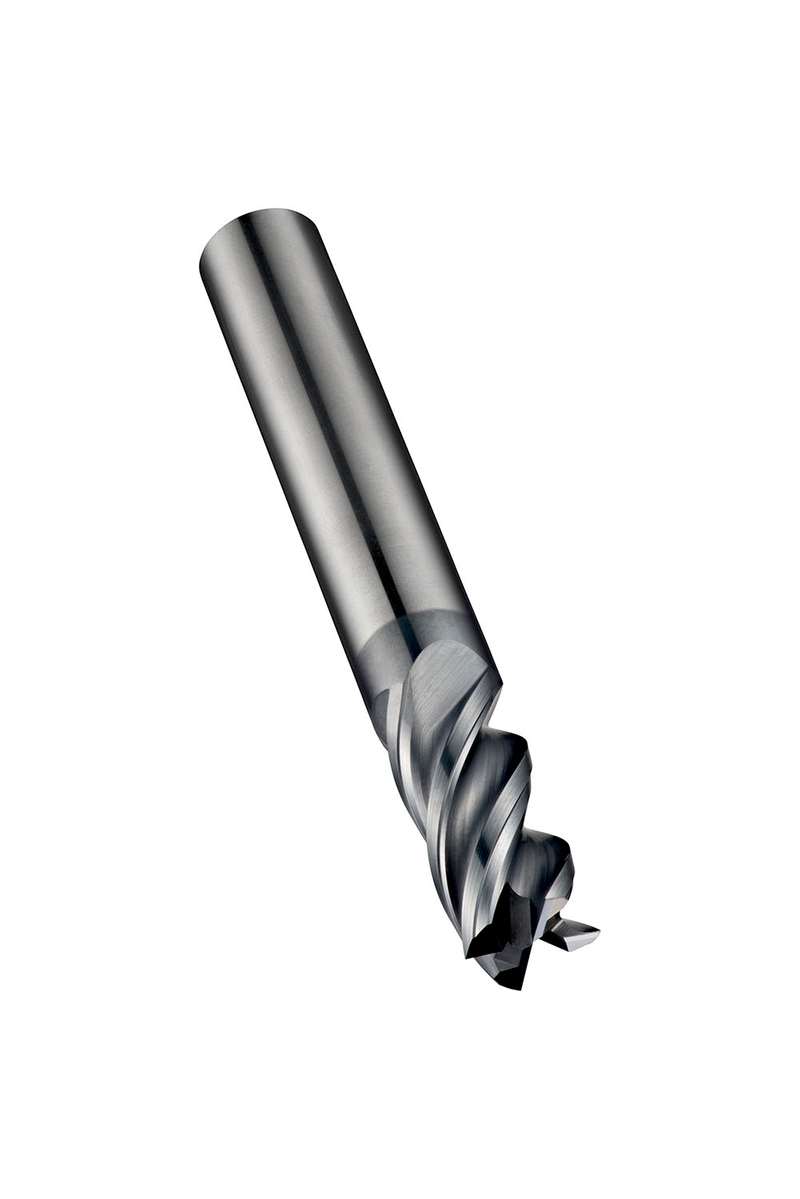

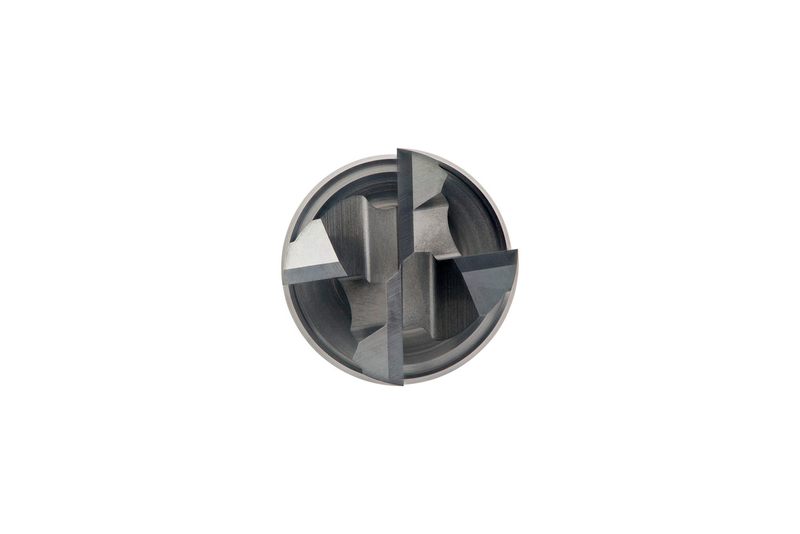

Fraise en carbure monobloc à 4 dents de diamètre 18mm, longueur de coupe 38mm et longueur totale 92mm, selon la norme DORMER, queue cylindrique de 18mm, revêtement AlCrN, hélice à 40° avec pas différentiel et angle de dépouille de 4° pour le fraisage d'épaulements et le plongée dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation, les alliages à haute température, la fonte trempée, durcie et l'acier trempé <55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S26018.0
GradeAlCrN
Product Number6706922
Product FamilyS260
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706922
EAN7320760684719
File Type Download

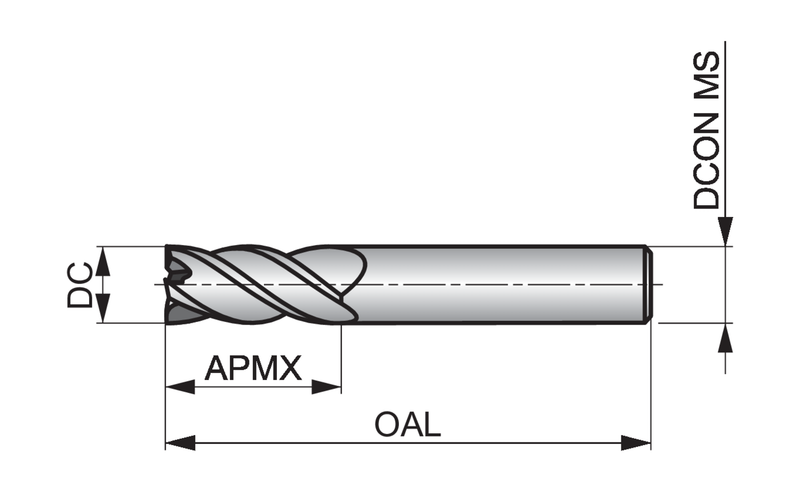

S26018.0 — Line Drawing PDF Download
