S7102.5
S7102.5
S7102.5
S7102.5

S7102.5

UGC DOR6706985
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.90 CAD - $50.90 CAD
$50.90 CAD
$50.90 CAD - $50.90 CAD
$50.90 CAD

Vendu en lots de : 1

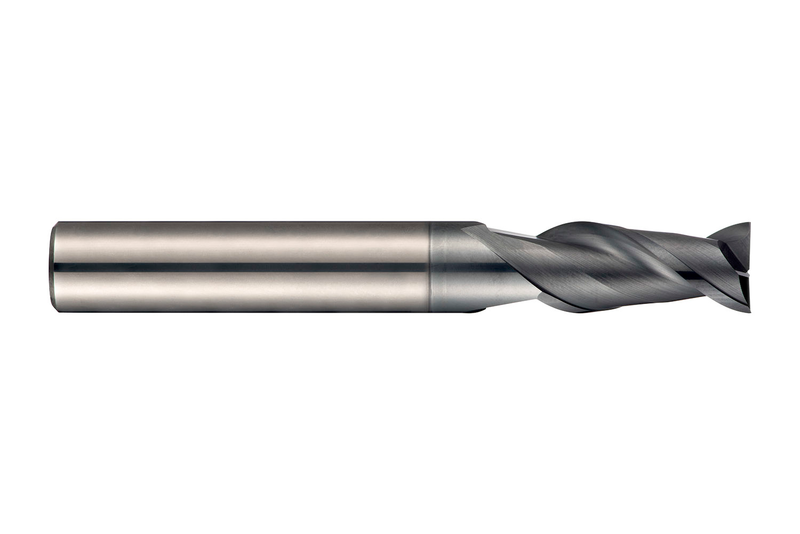

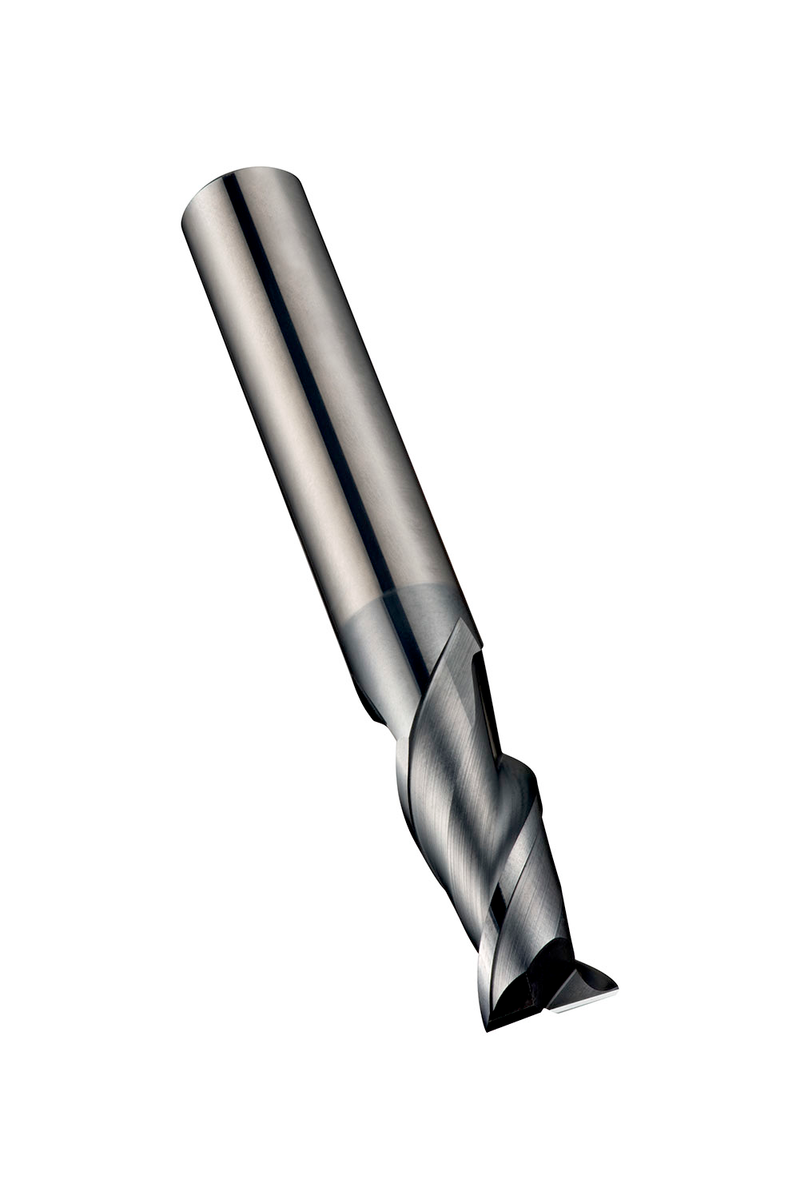

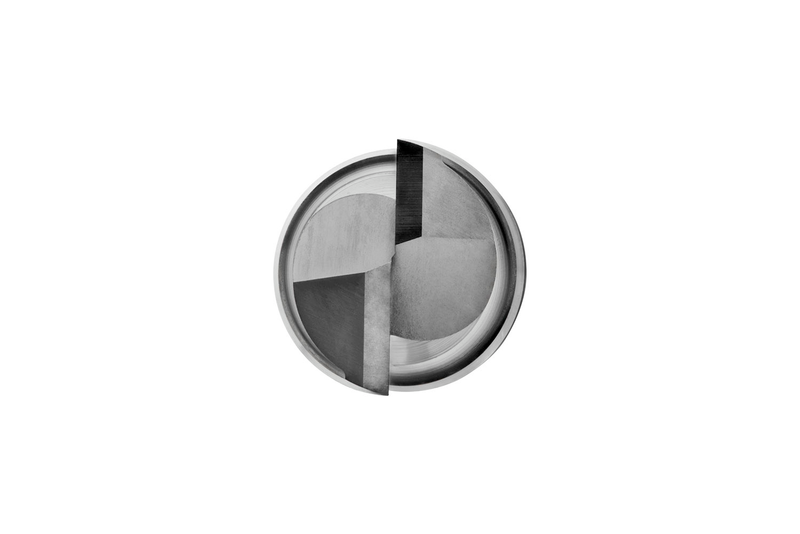

Fraise en carbure monobloc à queue cylindrique de 3 mm, avec revêtement AlCrN, série courte, 2 dents, diamètre 2,5 mm, longueur de coupe de 6,5 mm et longueur totale de 40 mm, selon la norme DORMER, hélice de 40° et angle de dépouille de 10° pour le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7102.5
GradeAlCrN
Product Number6706985
Product FamilyS710

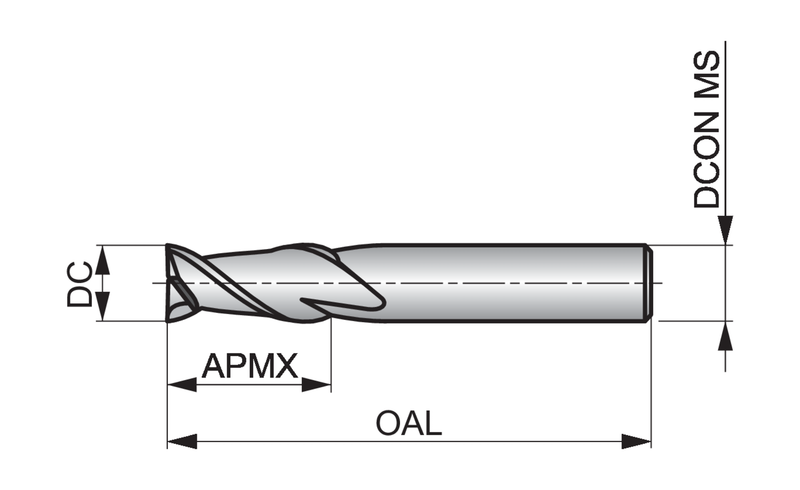

Insert Geometry
Depth of Cut Max — in (APMX)0.2559"
Depth of Cut Max — mm (APMX)6.5 mm
Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)1.5748"
Overall Length — mm (OAL)40.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706985
EAN7320760685341
File Type Download
S7102.5 — Line Drawing PDF Download
