UGC DOR6706987
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.60 CAD - $52.60 CAD
$52.60 CAD
$52.60 CAD - $52.60 CAD
$52.60 CAD

Vendu en lots de : 1

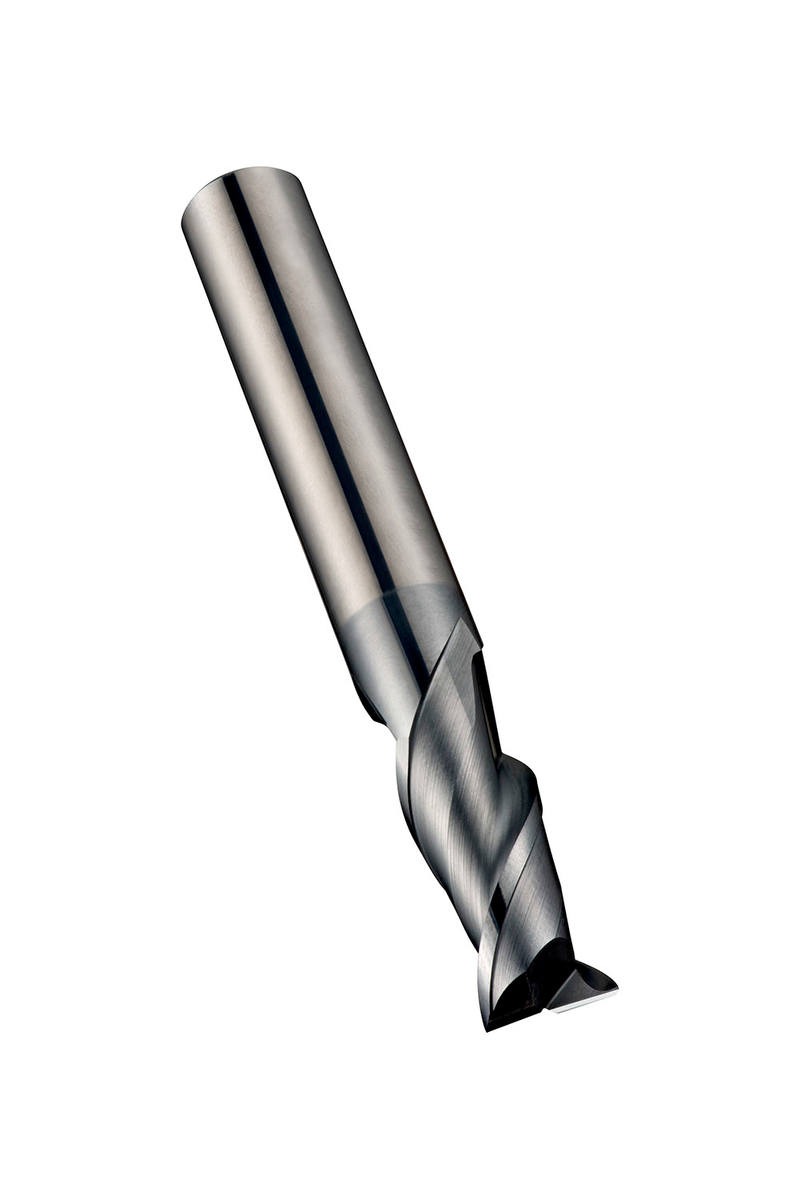

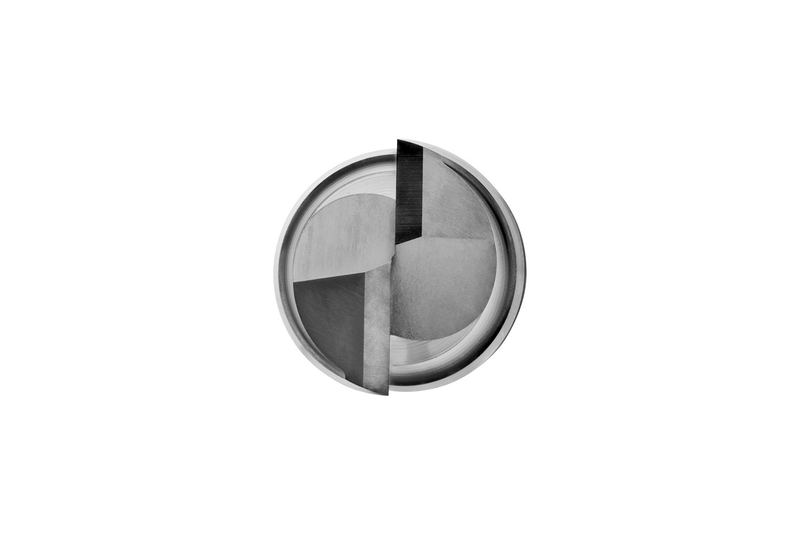

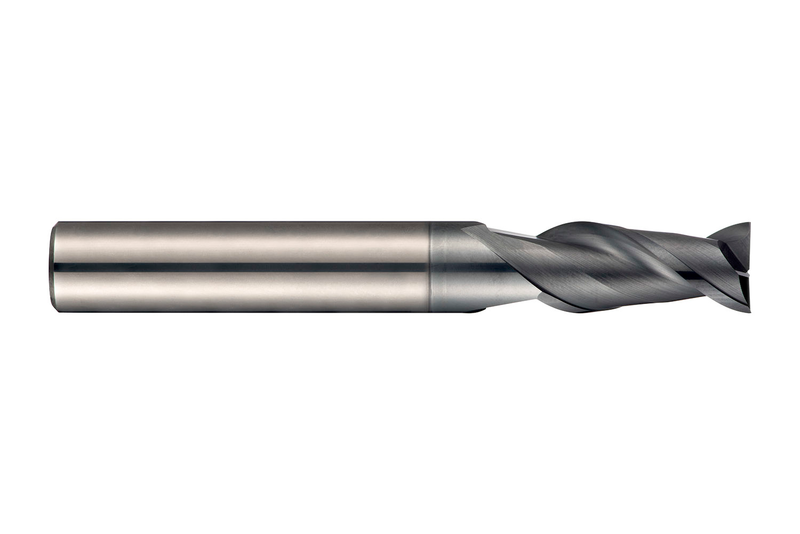

Fraise en bout série courte 2 dents, diamètre 4mm, longueur de coupe 12mm et longueur totale 50mm, selon le standard DORMER avec une queue cylindrique de 6mm, en carbure monobloc avec revêtement AlCrN, hélice 40° et angle de dépouille 10° pour le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7104.0
GradeAlCrN
Product Number6706987
Product FamilyS710
Insert Geometry
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm

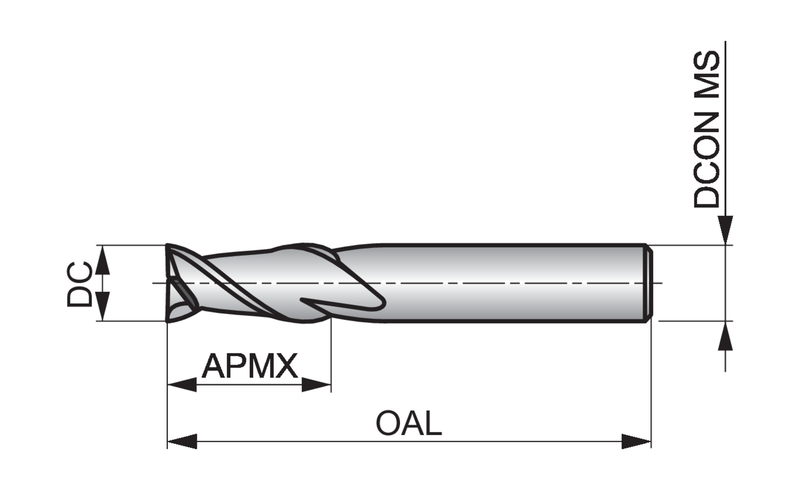

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706987
EAN7320760685365
File Type Download
S7104.0 — Line Drawing PDF Download
