S71012.0
S71012.0
S71012.0
S71012.0

S71012.0

UGC DOR6706992
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$136.37 CAD - $136.37 CAD
$136.37 CAD
$136.37 CAD - $136.37 CAD
$136.37 CAD

Vendu en lots de : 1

Fraise 2 tailles série courte, diamètre 12 mm avec une longueur de coupe de 25 mm et une longueur totale de 75 mm, selon la norme DORMER avec une queue cylindrique de 12 mm, en carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dépouille de 10° pour le rainurage dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71012.0
GradeAlCrN
Product Number6706992
Product FamilyS710
Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm

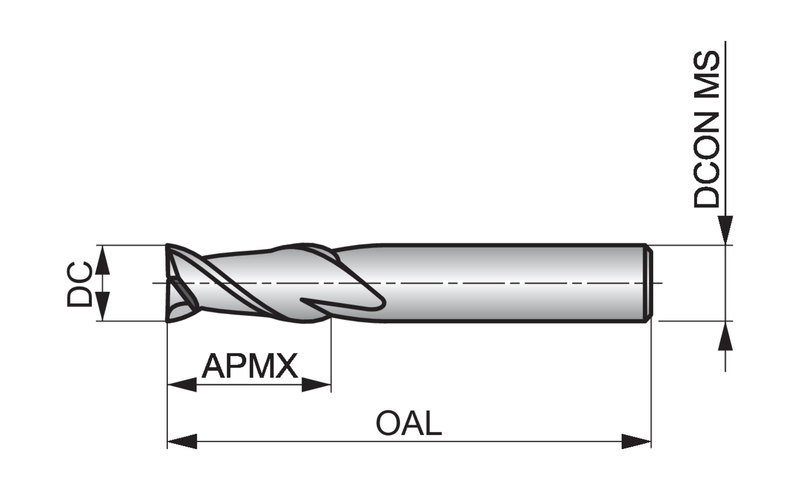

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706992
EAN7320760685419
File Type Download
S71012.0 — Line Drawing PDF Download
