S71020.0
S71020.0
S71020.0
S71020.0

S71020.0

UGC DOR6706995
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$350.44 CAD - $350.44 CAD
$350.44 CAD
$350.44 CAD - $350.44 CAD
$350.44 CAD

Vendu en lots de : 1

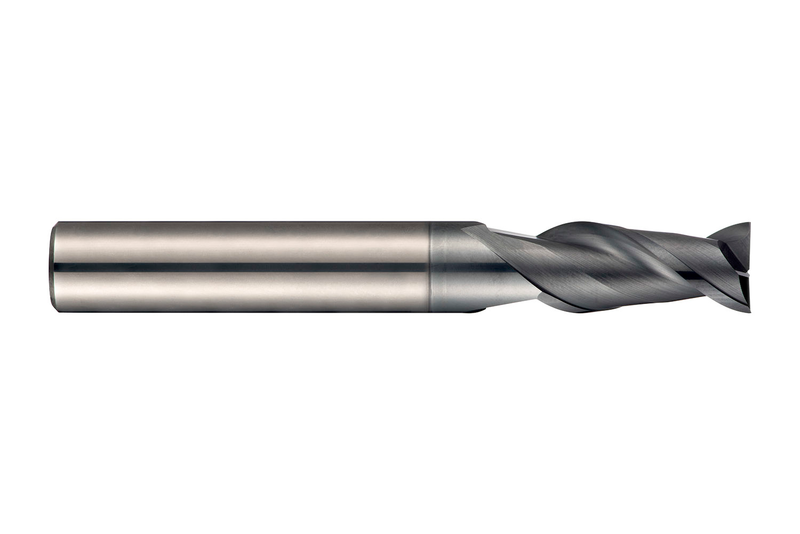

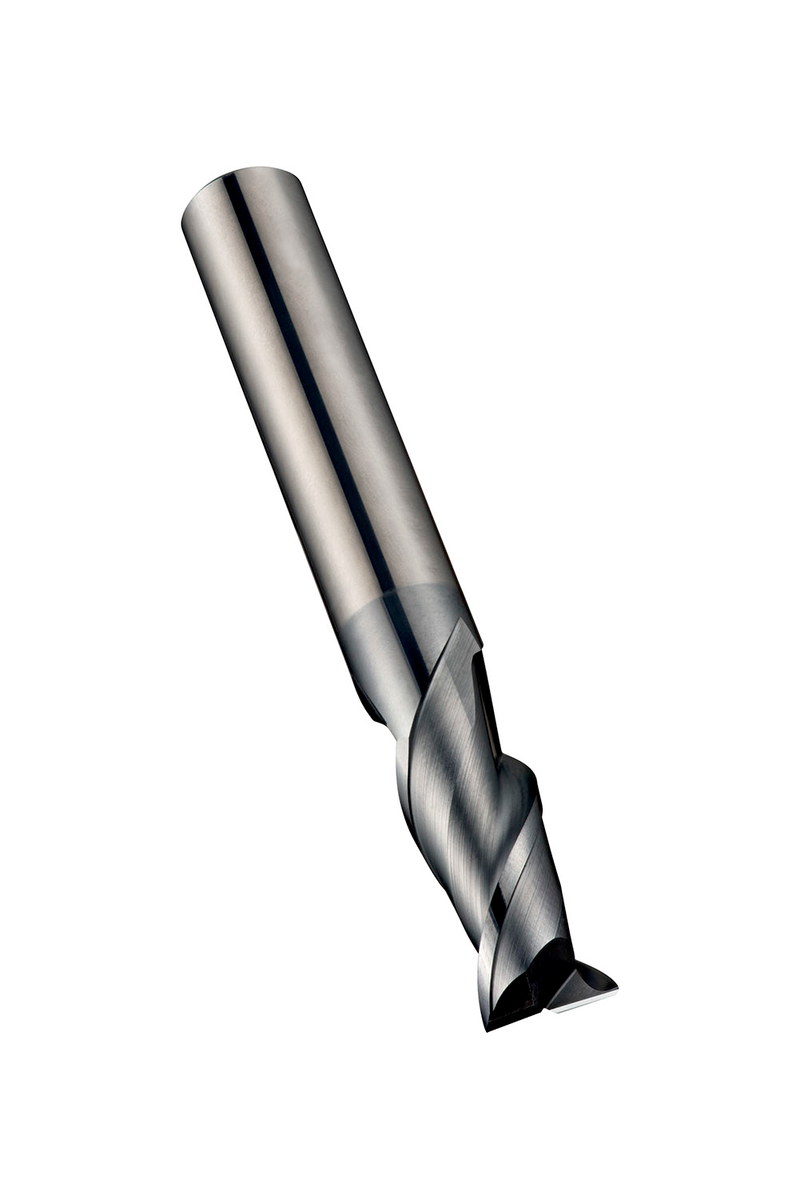

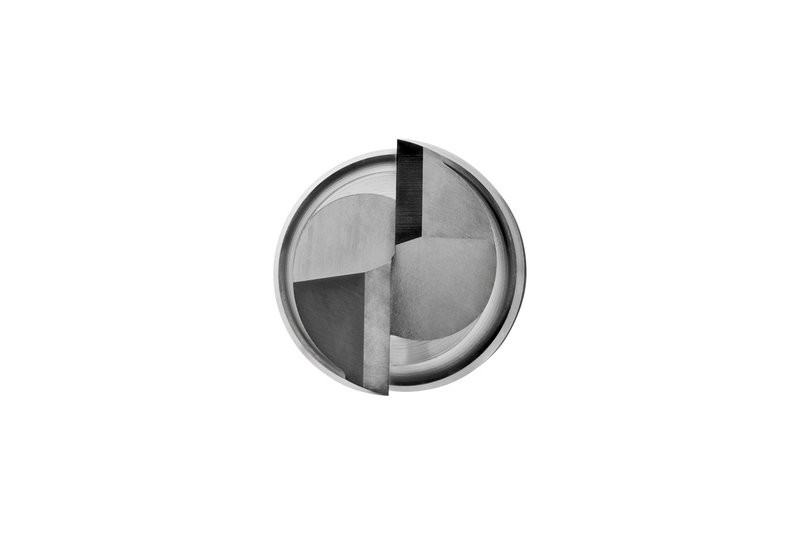

Fraise en bout série courte 2 dents, diamètre 20mm, longueur de coupe 38mm et longueur totale 100mm, selon la norme DORMER avec un attachement cylindrique 20mm, carbure monobloc avec revêtement AlCrN, hélice 40° et angle de dépouille 10° pour le rainurage dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71020.0
GradeAlCrN
Product Number6706995
Product FamilyS710
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

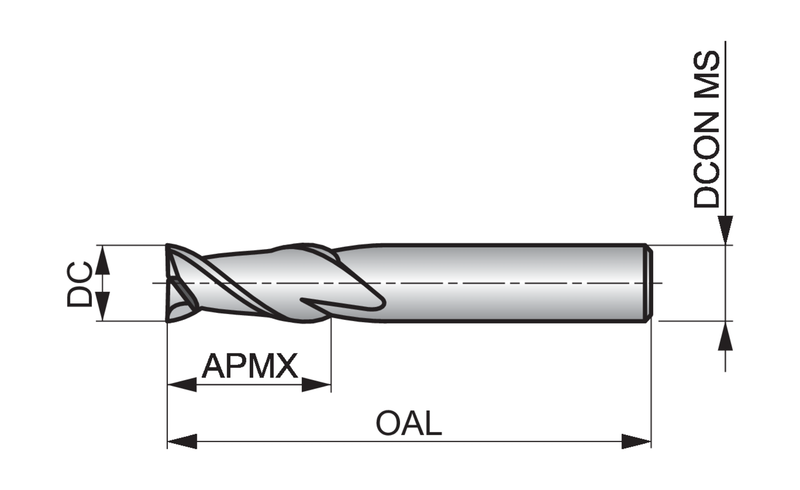

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706995
EAN7320760685440
File Type Download
S71020.0 — Line Drawing PDF Download
