UGC DOR6707001
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$122.10 CAD - $122.10 CAD
$122.10 CAD
$122.10 CAD - $122.10 CAD
$122.10 CAD

Vendu en lots de : 1

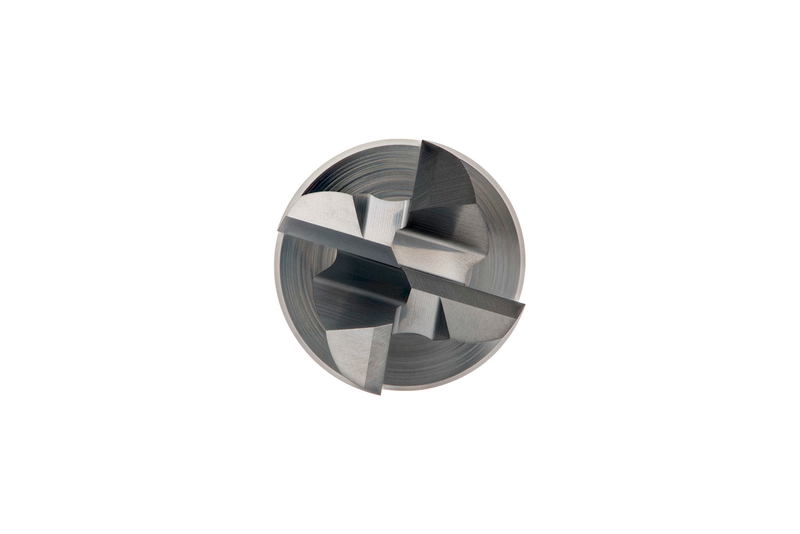

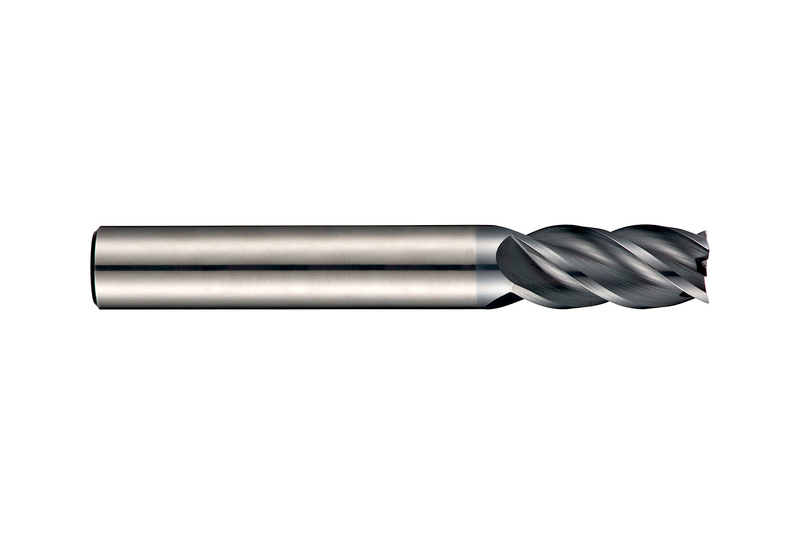

Fraise en bout série courte 4 dents, diamètre 10mm, longueur de coupe 22mm et longueur totale 72mm, conforme à la norme DORMER avec une queue cylindrique de 10mm, en carbure monobloc avec revêtement AlCrN, hélice 40° avec pas différentiel et angle de dépouille de 10° pour le fraisage en plongée et en surfaçage dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S76110.0
GradeAlCrN
Product Number6707001
Product FamilyS761
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46707001
EAN7320760685501
File Type Download
S76110.0 — Line Drawing PDF Download
