UGC DOR6707003
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$211.96 CAD - $211.96 CAD
$211.96 CAD
$211.96 CAD - $211.96 CAD
$211.96 CAD

Vendu en lots de : 1

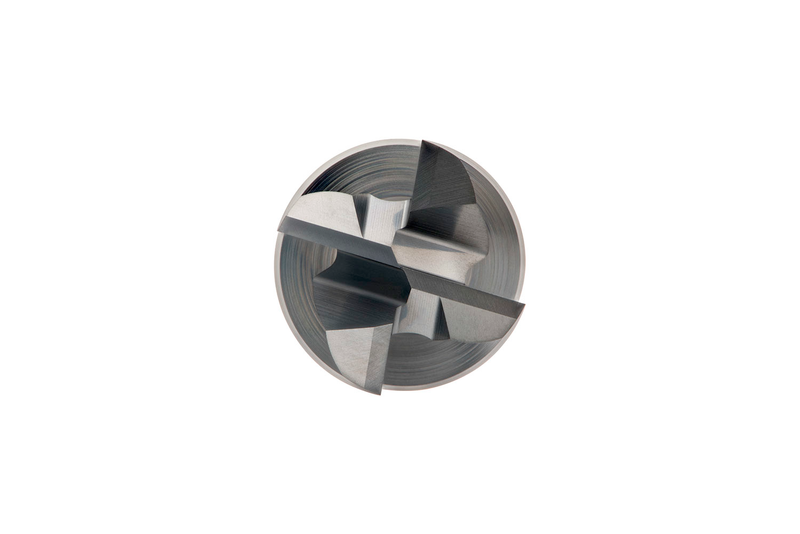

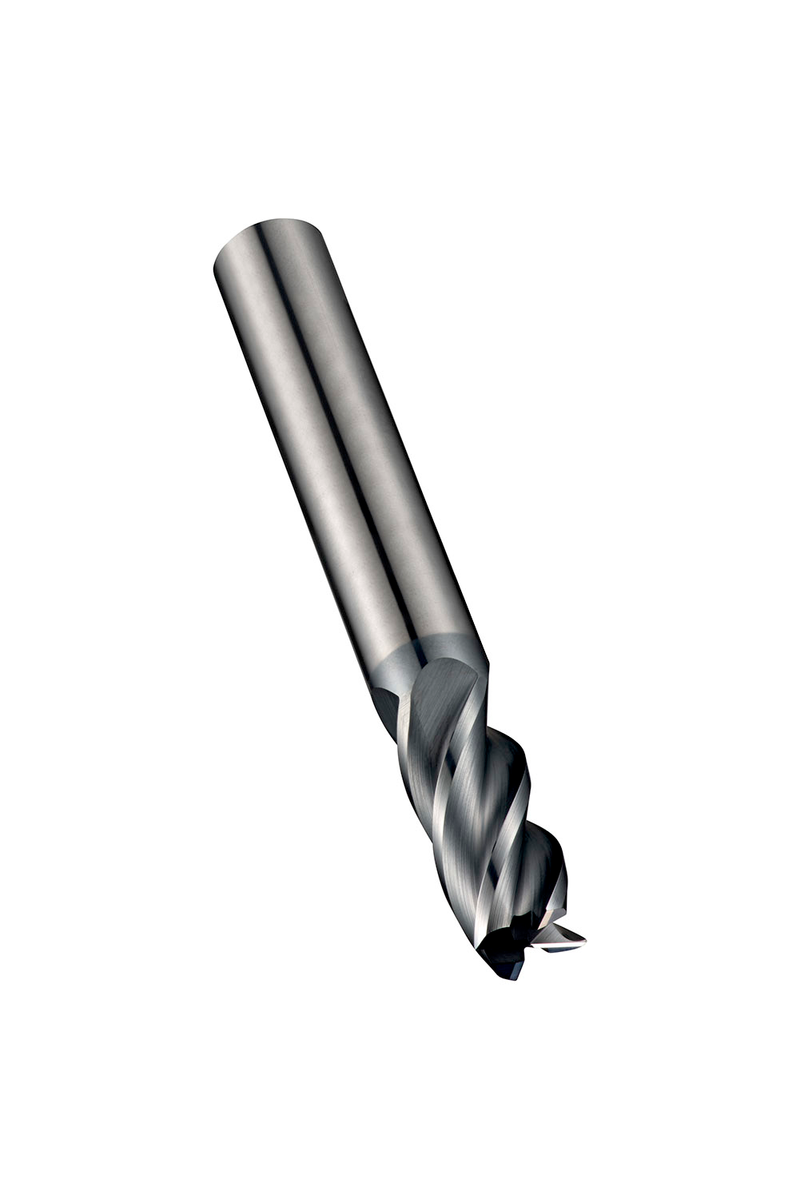

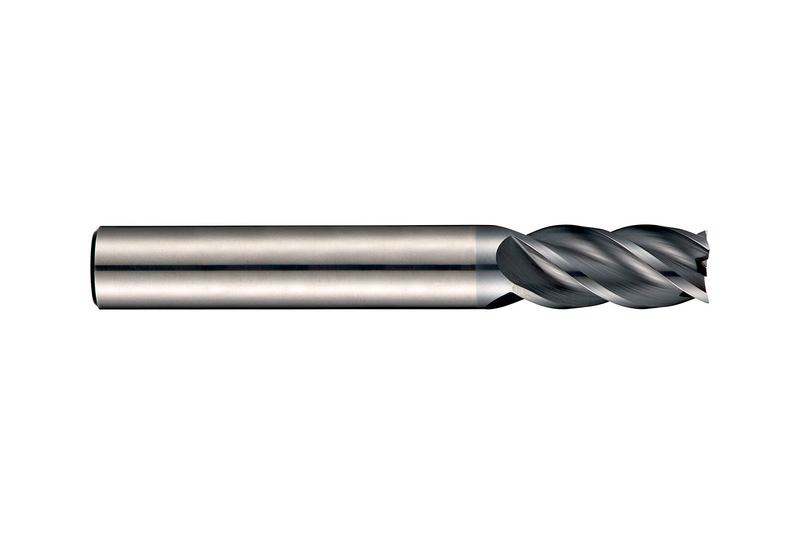

Fraise en carbure monobloc à queue cylindrique, revêtement AlCrN, 4 goujures, à coupe courte de diamètre 14 mm, longueur de coupe de 32 mm et longueur totale de 83 mm, selon la norme DORMER. Hélice de 40° à pas différentiel et un angle de dégagement de 10° pour le fraisage en plongée ou le dressage d'épaulements dans l'acier, l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S76114.0
GradeAlCrN
Product Number6707003
Product FamilyS761
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46707003
EAN7320760685525
File Type Download
S76114.0 — Line Drawing PDF Download
