UGC DOR6707010
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$141.13 CAD - $141.13 CAD
$141.13 CAD
$141.13 CAD - $141.13 CAD
$141.13 CAD

Vendu en lots de : 1

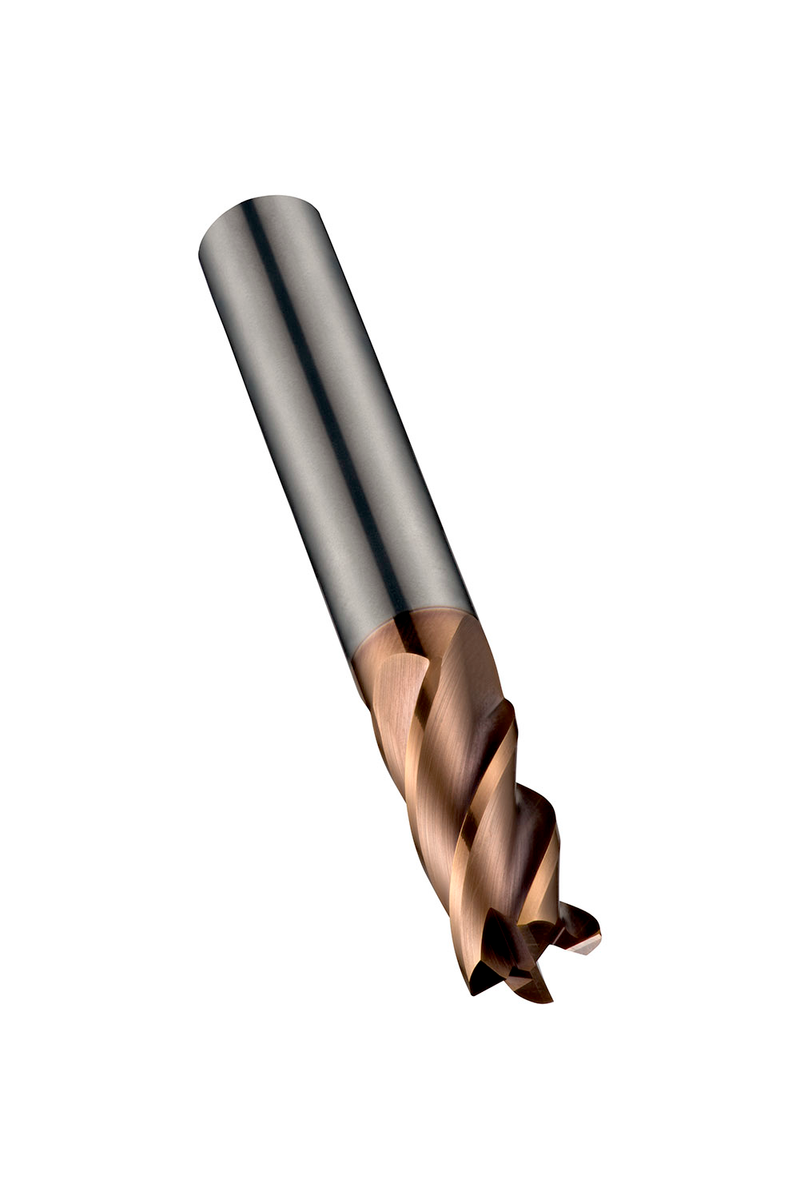

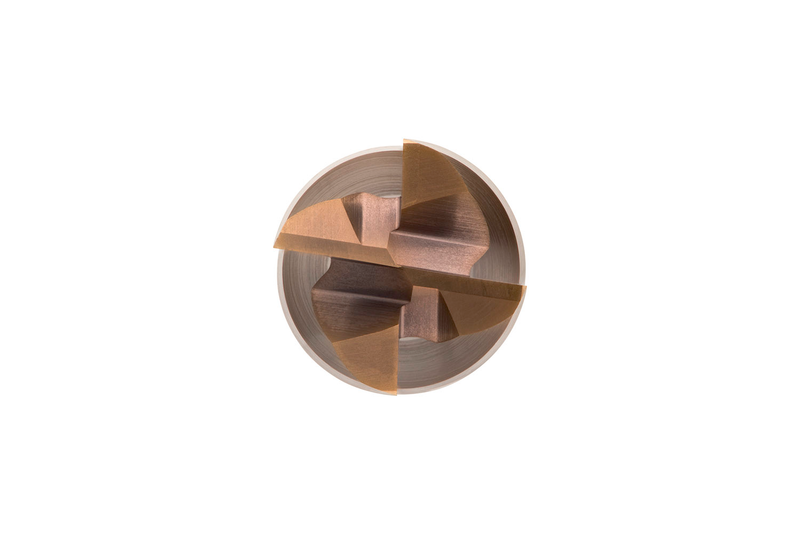

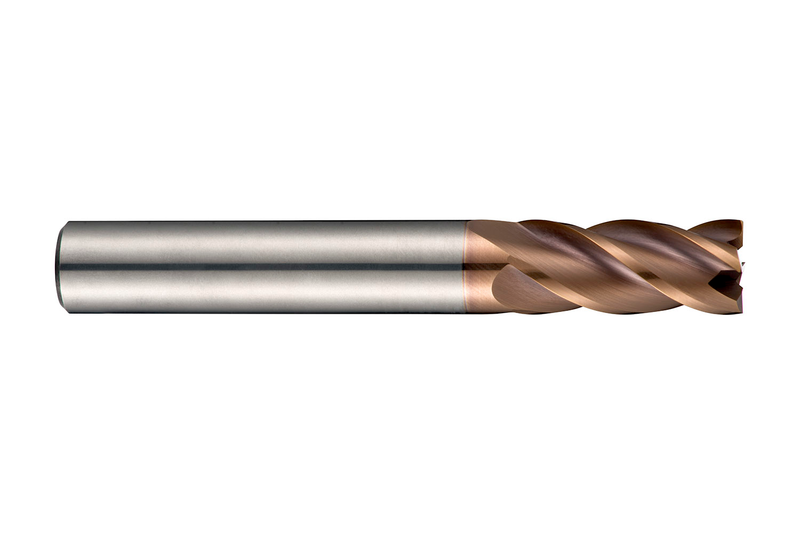

Fraise en bout série courte 4 dents, diamètre 10mm avec longueur de coupe 22mm, longueur totale 72mm et chanfrein d'angle 45° de 0.2mm, selon la norme DORMER avec queue cylindrique 10mm, en carbure monobloc avec revêtement TiSiN, hélice inégale à pas différentiel et angle de dépouille 10° pour le fraisage d'épaulements, le plongement, le fraisage plongeant progressif et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S76610.0
GradeTiSiN
Product Number6707010
Product FamilyS766
Insert Geometry

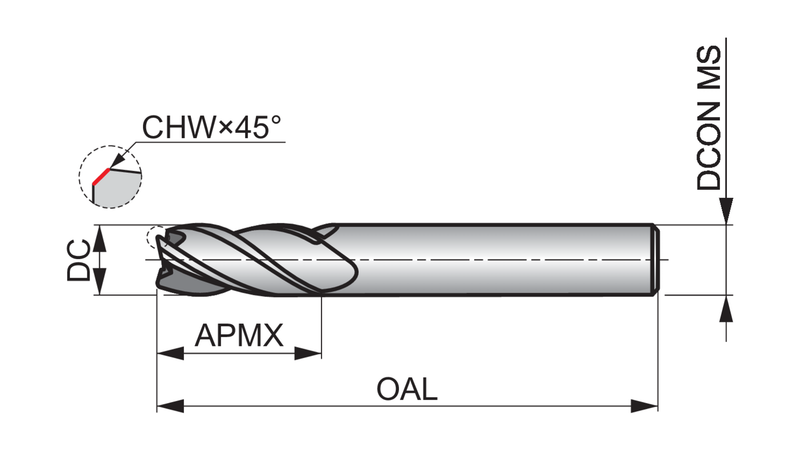

Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46707010
EAN7320760685594
File Type Download
S76610.0 — Line Drawing PDF Download
