S7676.0XR1.0
S7676.0XR1.0
S7676.0XR1.0
S7676.0XR1.0

S7676.0XR1.0

UGC DOR6707021
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$89.86 CAD - $89.86 CAD
$89.86 CAD
$89.86 CAD - $89.86 CAD
$89.86 CAD

Vendu en lots de : 1

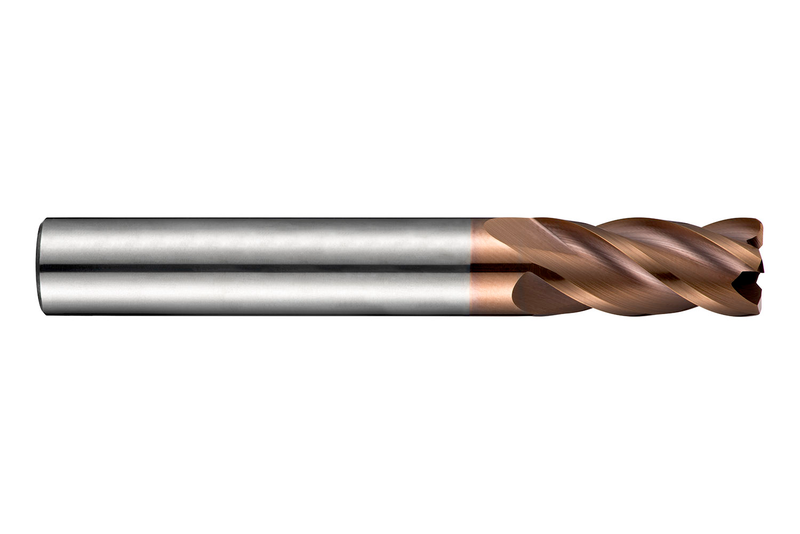

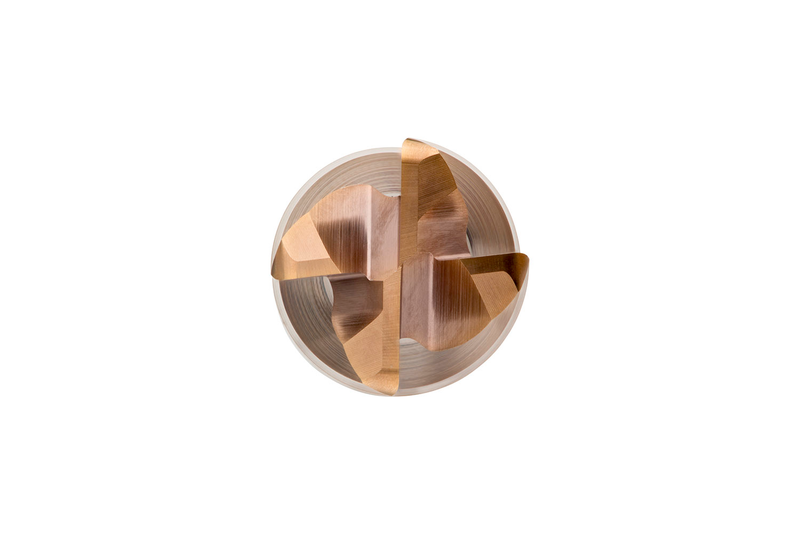

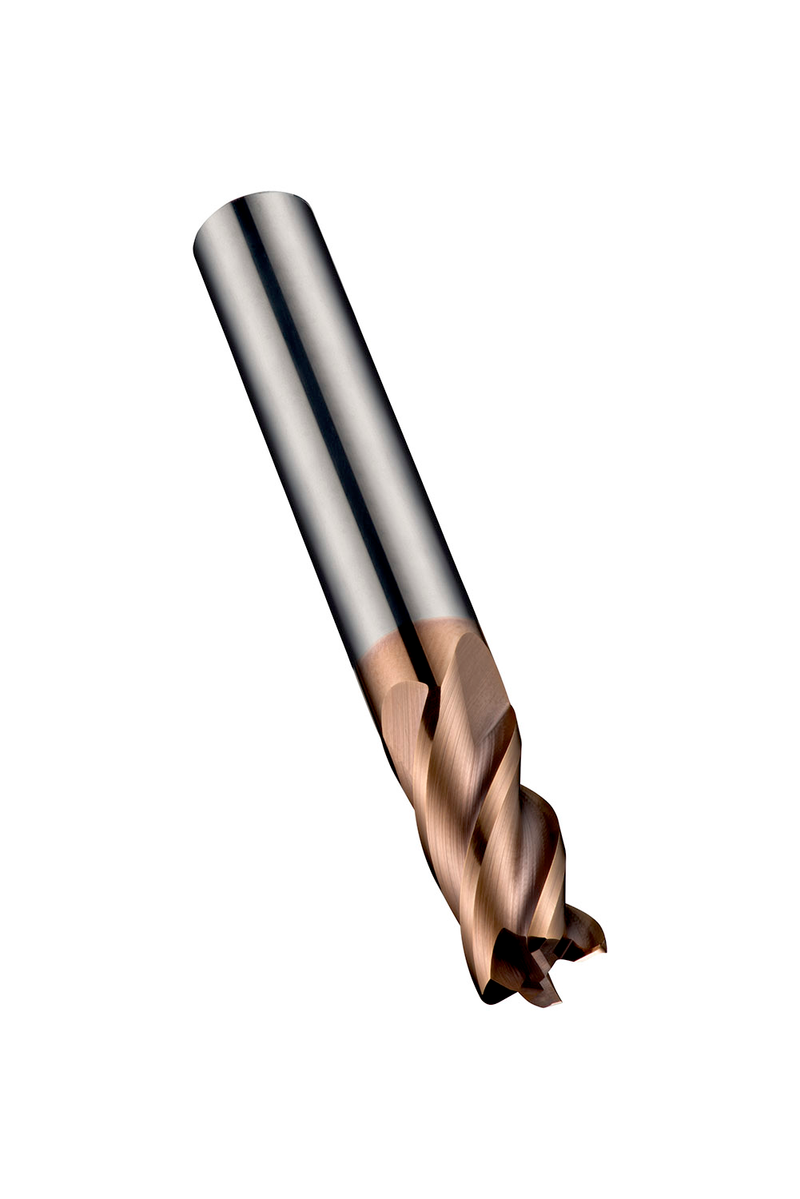

Fraise à rayon de coin, série courte, 4 arêtes, diamètre 6 mm, longueur de coupe 13 mm, longueur totale 57 mm, rayon de coin 1 mm, selon la norme DORMER, avec queue cylindrique 6 mm, en carbure monobloc, revêtement TiSiN, hélice inégale à pas différentiel et angle de coupe 10° pour le fraisage d'épaulement, le copiage, le copiage progressif, l'interpolation hélicoïdale, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7676.0XR1.0
GradeTiSiN
Product Number6707021
Product FamilyS767
Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46707021
EAN7320760685709
File Type Download
S7676.0XR1.0 — Line Drawing PDF Download
