S76720.0XR2.0
S76720.0XR2.0
S76720.0XR2.0
S76720.0XR2.0

S76720.0XR2.0

UGC DOR6707039
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$585.13 CAD - $585.13 CAD
$585.13 CAD
$585.13 CAD - $585.13 CAD
$585.13 CAD

Vendu en lots de : 1

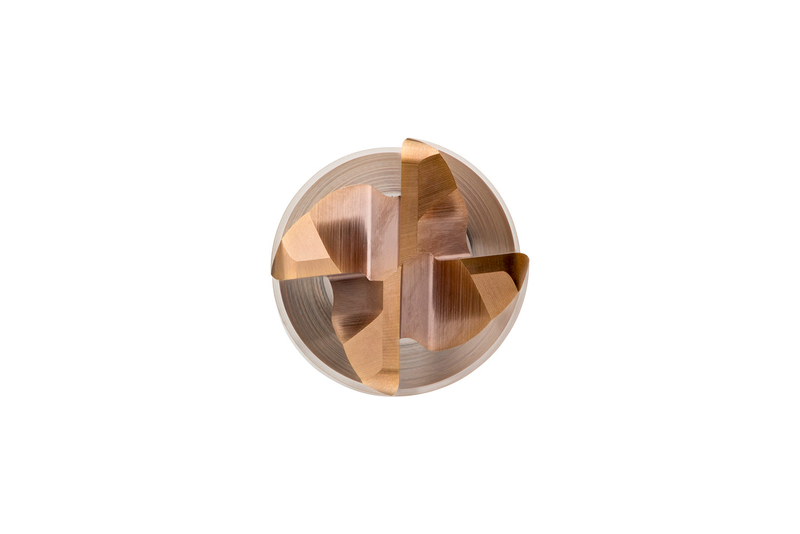

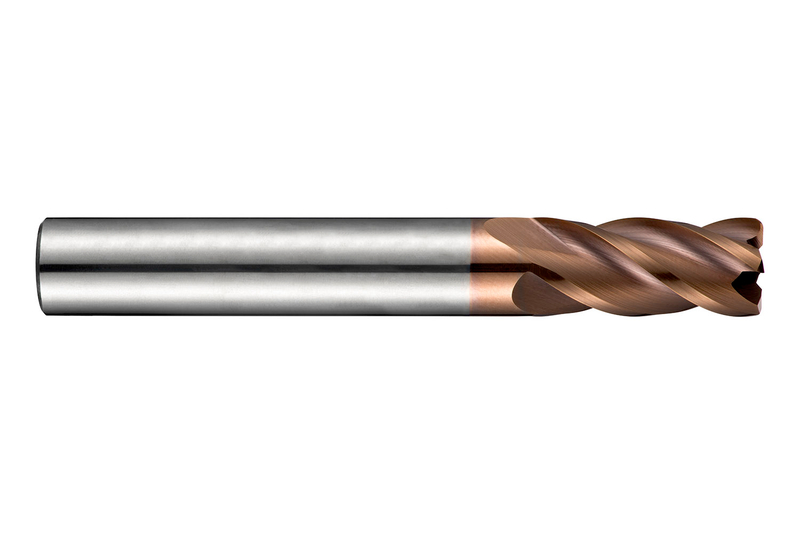

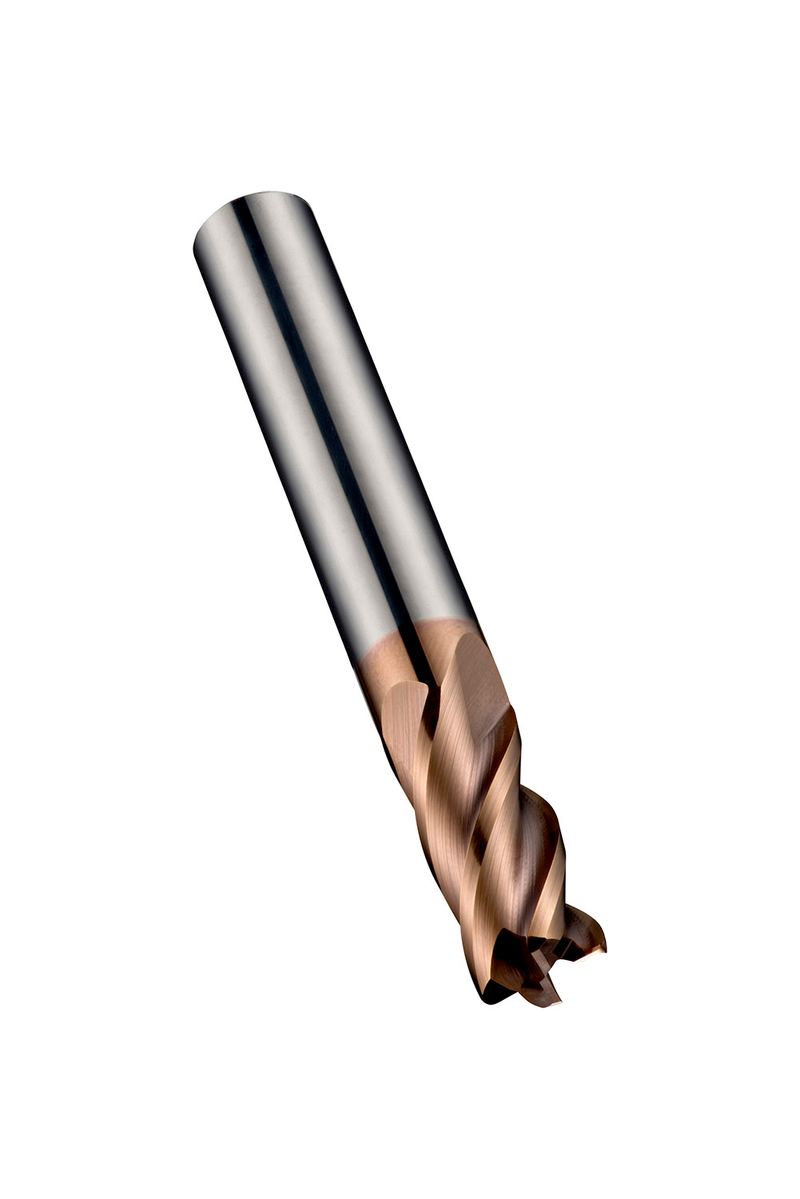

Fraise en carbure monobloc à queue cylindrique, à coins arrondis et à quatre coupes, série courte, diamètre 20 mm, longueur de coupe 38 mm, longueur totale 104 mm, rayon de coin 2 mm, conforme à la norme DORMER, queue cylindrique 20 mm, avec revêtement TiSiN, hélice inégale à pas différentiel et angle de dépouille de 10° pour le fraisage d'épaulement, le fraisage en plongée, le fraisage progressif en plongée, l'usinage en rampe, le fraisage hélicoïdal et le fraisage trochoïdal de l'acier et de l'acier moulé, de l'acier inoxydable ferritique, martensitique et austénitique, de la fonte et des alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S76720.0XR2.0
GradeTiSiN
Product Number6707039
Product FamilyS767
Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46707039
EAN7320760685884
File Type Download
S76720.0XR2.0 — Line Drawing PDF Download
