R4593/16
R4593/16
R4593/16
R4593/16

R4593/16

UGC DOR6719005
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$163.43 CAD - $163.43 CAD
$163.43 CAD
$163.43 CAD - $163.43 CAD
$163.43 CAD

Vendu en lots de : 1

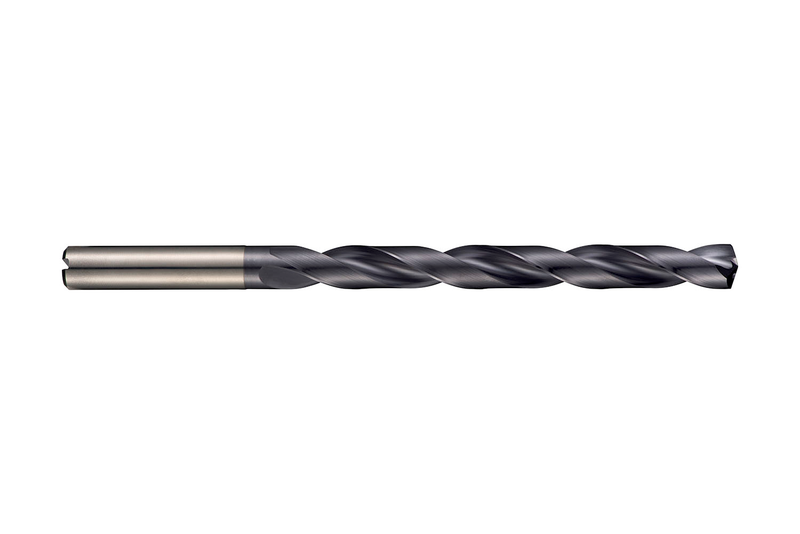

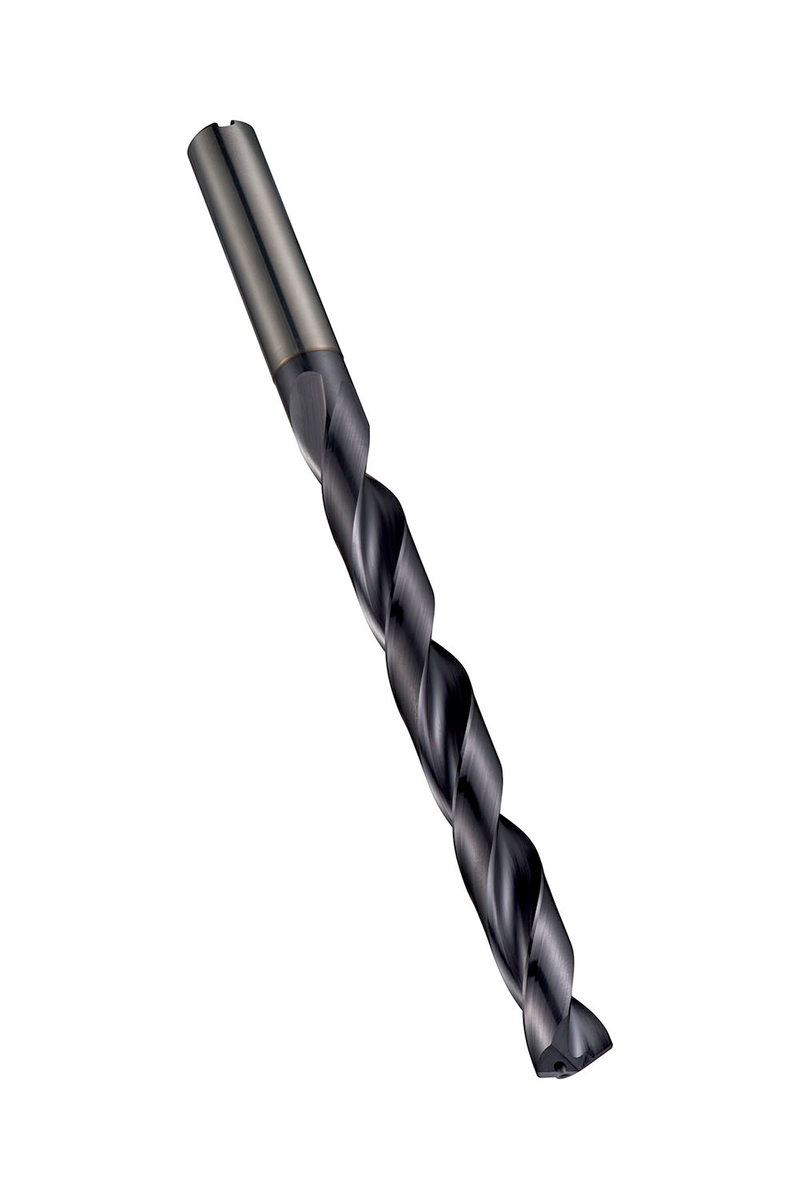

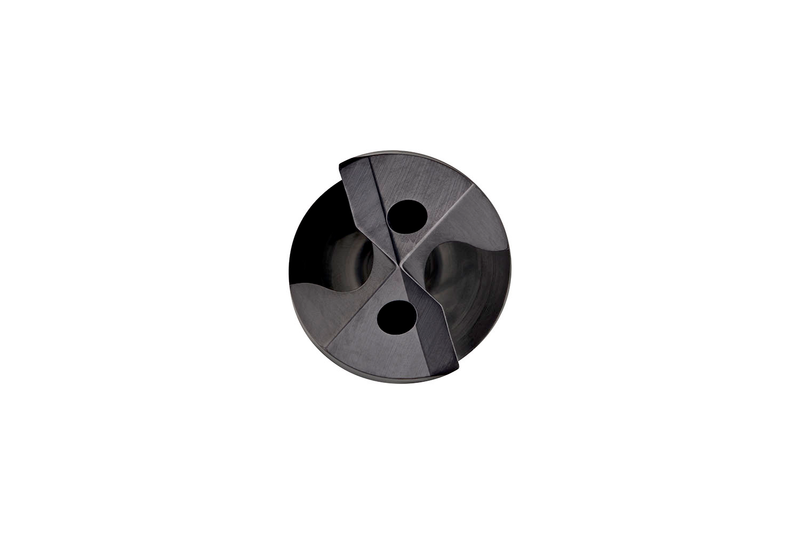

Forets hautes performances FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 0,1875" (3/16) avec une longueur totale de 104mm et une longueur utile de 62mm selon les normes DORMER, avec une pointe auto-centrante à 4 facettes modifiée à 140°, en carbure monobloc avec revêtement TiAlN, une âme amincie en continu et des trous d'arrosage pour un perçage jusqu'à 8xD sans débourrage dans l'acier, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4593/16
GradeTiAlN
Product Number6719005
Product FamilyR459

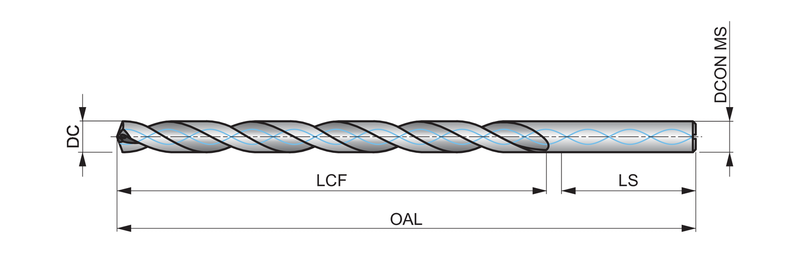

Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Flute Length — in (LCF)2.4409"
Flute Length — mm (LCF)62.0 mm
Length × Diameter Ratio8
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46719005
EAN7320760686119
File Type Download
R4593/16 — 3D Model STP Download
R4593/16 — Line Drawing PDF Download
