S5333.0XD4
S5333.0XD4
S5333.0XD4
S5333.0XD4

S5333.0XD4

UGC DOR6734333
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$98.84 CAD - $98.84 CAD
$98.84 CAD
$98.84 CAD - $98.84 CAD
$98.84 CAD

Vendu en lots de : 1

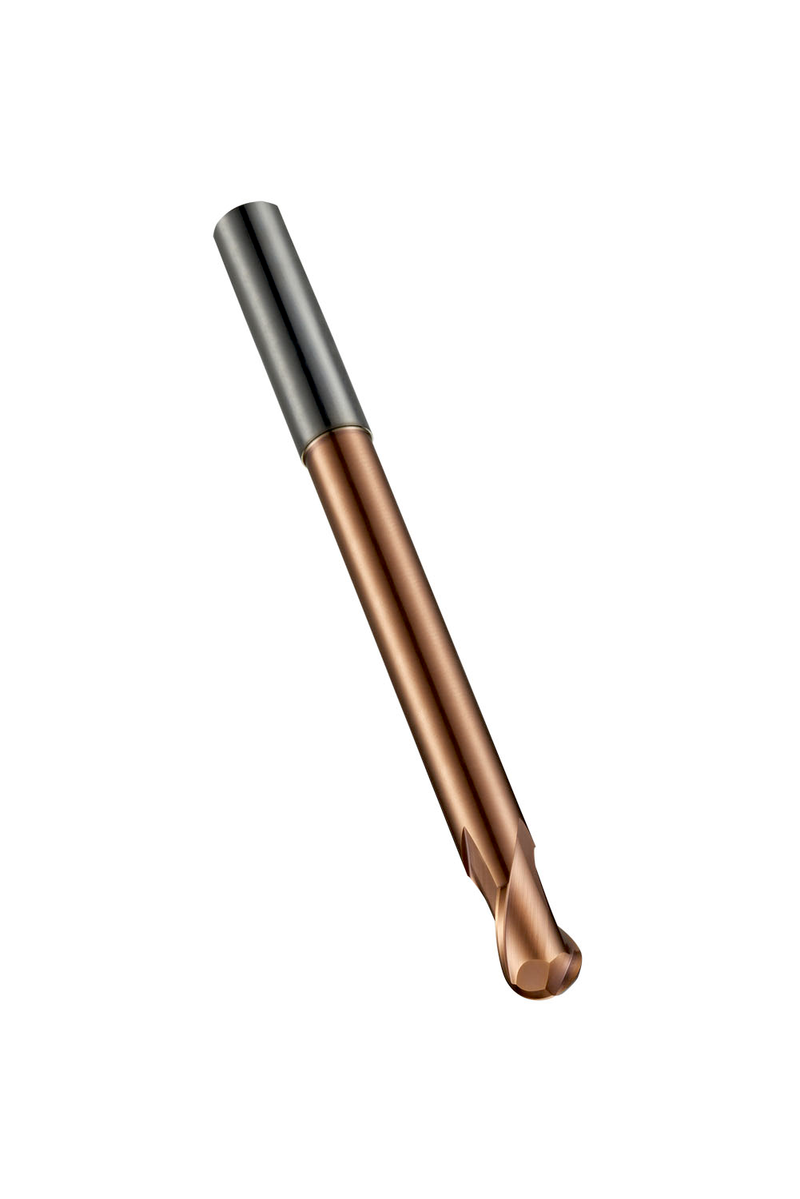

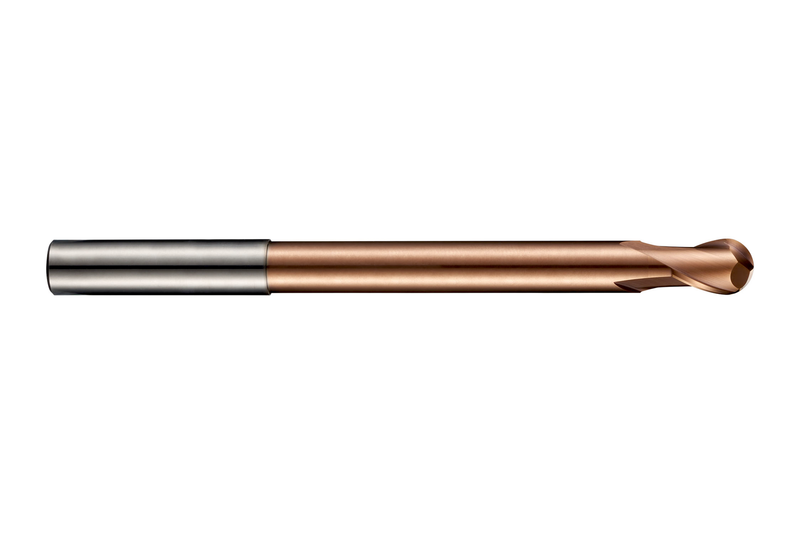

Fraise boule extra courte à 2 dents, diamètre 3mm avec 5mm de longueur de coupe, 100mm de longueur totale, 30mm de portée avec dégagement de col et rayon de profil complet de 1,5mm, selon la norme DORMER avec une queue cylindrique de 4mm, en carbure monobloc avec revêtement TiSiN, hélice de 30° et angle de dépouille de -10° pour le fraisage en copie dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5333.0XD4
GradeTiSiN
Product Number6734333
Product FamilyS533

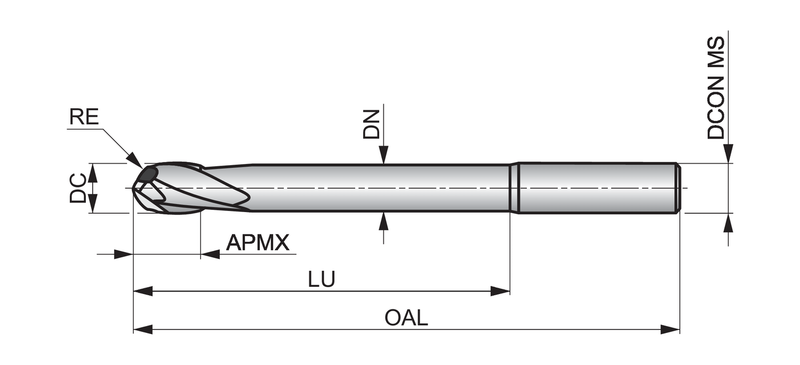

Insert Geometry
Corner Radius — in (RE)0.0591"
Corner Radius — mm (RE)1.5 mm
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46734333
EAN7320760687161
File Type Download
S5333.0XD4 — Line Drawing PDF Download
