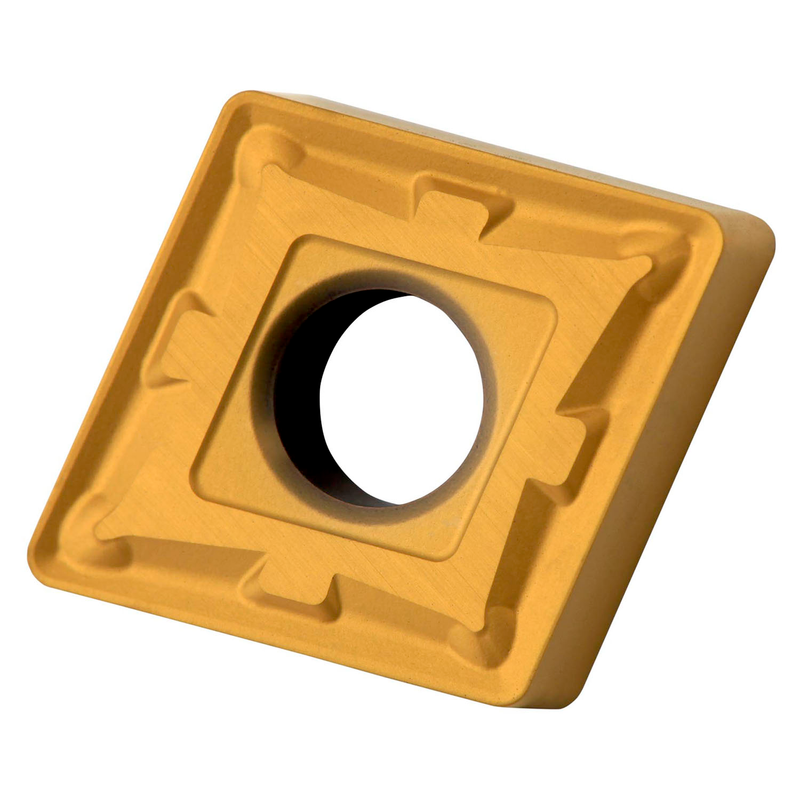

CNMG 432-M:6640
CNMG 432-M:6640

CNMG 432-M:6640

UGC DOR6751506
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.19 CAD - $13.19 CAD
$13.19 CAD
$13.19 CAD - $13.19 CAD
$13.19 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux M, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans les plages ISO P20 - P40 et K25 - K40, pour l'usinage fin à lourd des aciers et des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 432-M:6640
Product Name (ISO)CNMG 120408E-M:6640
Grade6640
Chipbreaker (CBMD)M
Product Number6751506
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6751506
EAN3603602869029
File Type Download
CNMG 432-M:6640 — Line Drawing PDF Download
