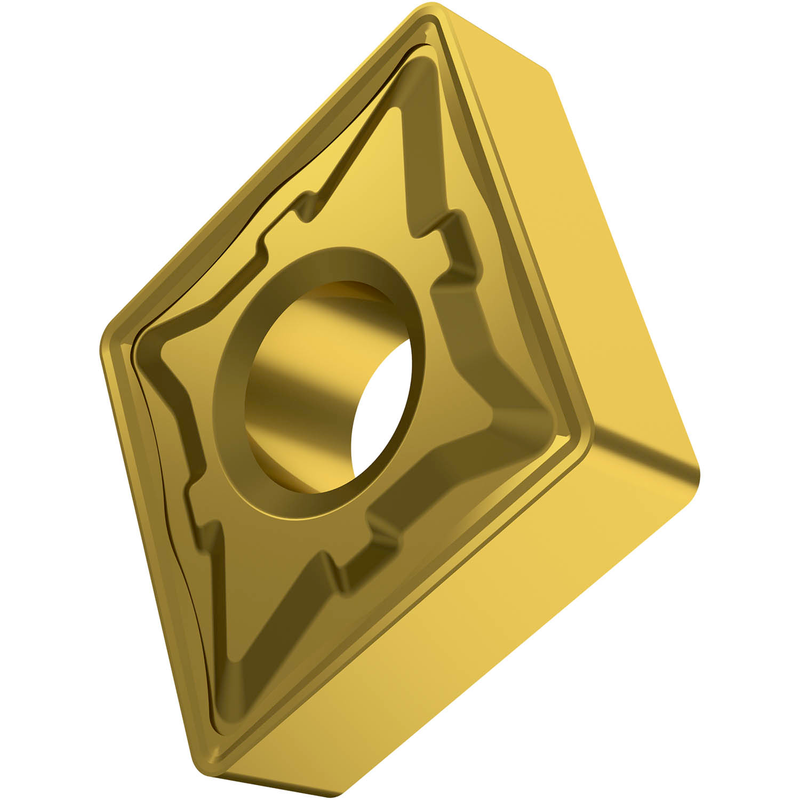

CNMG 643-R:6640
CNMG 643-R:6640

CNMG 643-R:6640

UGC DOR6751548
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.36 CAD - $28.36 CAD
$28.36 CAD
$28.36 CAD - $28.36 CAD
$28.36 CAD

Vendu en lots de : 10

Plaquette négative double-face, rhomboïdale à 80° avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, un rayon de bec de 3/64" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux R, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans les plages ISO P20 - P40 et K25 - K40, pour l'usinage moyen à lourd des aciers et des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 643-R:6640
Product Name (ISO)CNMG 190612E-R:6640
Grade6640
Chipbreaker (CBMD)R
Product Number6751548
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle de 80° inclus rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6751548
EAN3603602869142
File Type Download
CNMG 643-R:6640 — Line Drawing PDF Download
