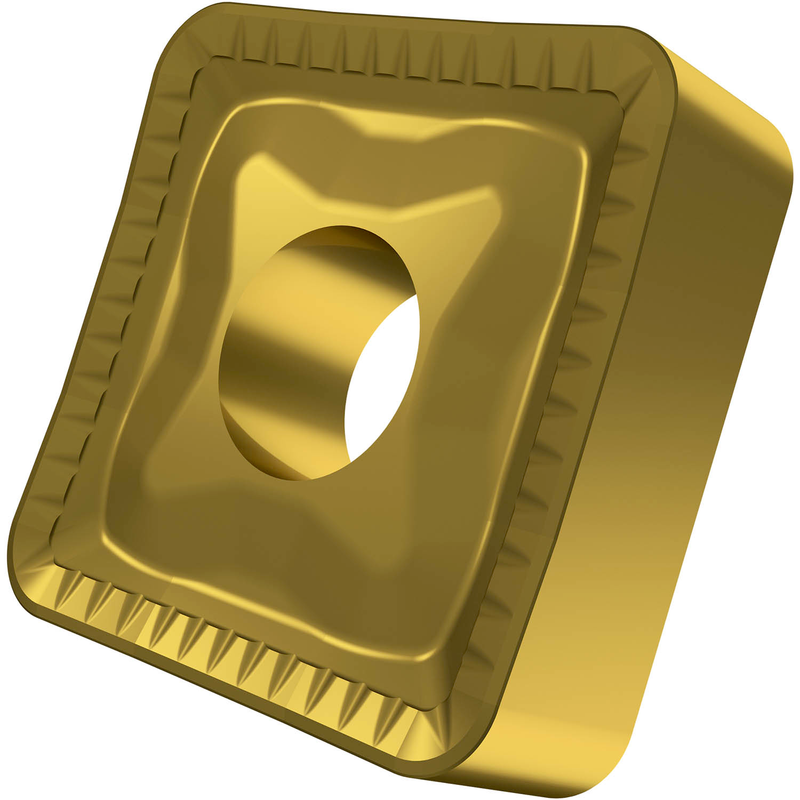

SNMM 856-RH:6640
SNMM 856-RH:6640

SNMM 856-RH:6640

UGC DOR6751563
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.86 CAD - $50.86 CAD
$50.86 CAD
$50.86 CAD - $50.86 CAD
$50.86 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 1", une épaisseur de 5/16", un rayon de bec de 3/32" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux HR, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans les plages ISO P20 - P40 et K25 - K40, pour l'usinage lourd à très lourd des aciers et des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 856-HR:6640
Product Name (ISO)SNMM 250724E-RH:6640
Grade6640
Chipbreaker (CBMD)RH
Product Number6751563
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.551"
Depth of Cut Max — mm (APMX)14.0 mm
Tool Information
Reference Numbers
EDP Number6751563
EAN3603602869296
File Type Download
SNMM 856-RH:6640 — Line Drawing PDF Download
