TPU 432:6640
TPU 432:6640

TPU 432:6640

UGC DOR6751571
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.07 CAD - $16.07 CAD
$16.07 CAD
$16.07 CAD - $16.07 CAD
$16.07 CAD

Vendu en lots de : 10

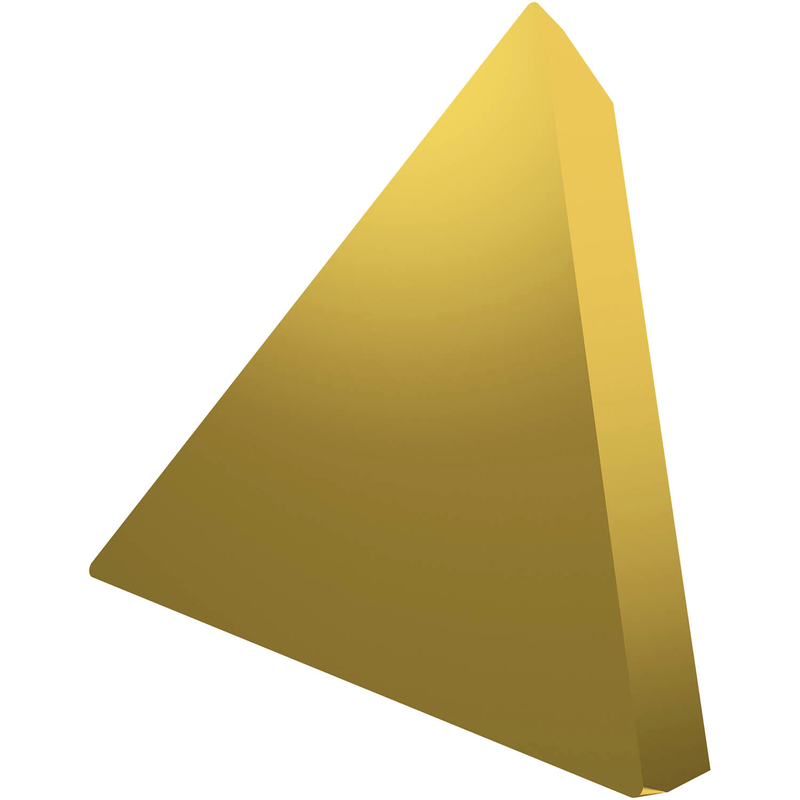

Plaquette de tournage positive simple face, triangulaire avec dépouille de 11°, diamètre du cercle inscrit de 12,7 mm (1/2"), épaisseur de 4,76 mm (3/16"), rayon de bec de 0,79 mm (1/32") et précision d'indexage selon la classe de tolérance ISO U, en nuance 6640, un carbure WC-Co revêtu MT-CVD de la gamme ISO K25 - K40, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 432:6640
Product Name (ISO)TPUN 220408:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751571
Product FamilyTPUN-IT

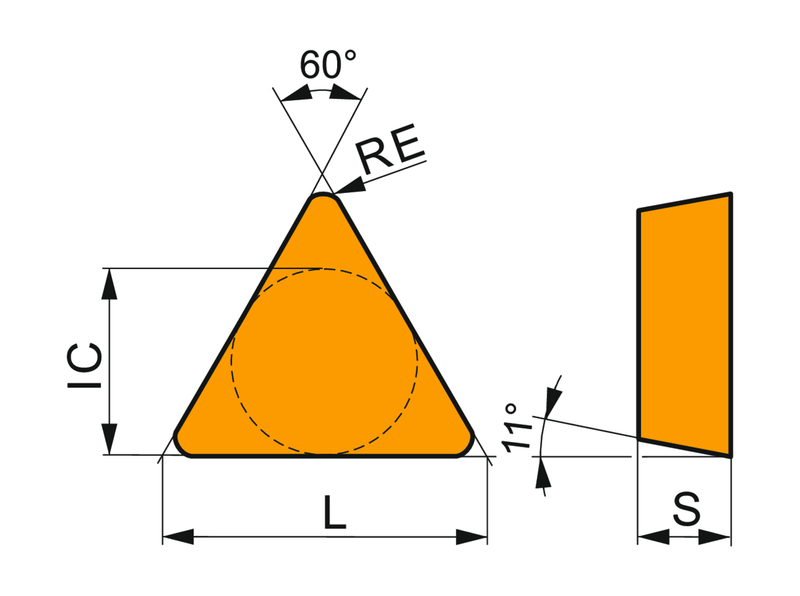

Insert Geometry
Insert DesignPGNU
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.252"
Depth of Cut Max — mm (APMX)6.4 mm
Tool Information
Reference Numbers
EDP Number6751571
EAN3603602869371
File Type Download
TPU 432:6640 — Line Drawing PDF Download
