TPU 433:6640
TPU 433:6640

TPU 433:6640

UGC DOR6751572
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.07 CAD - $16.07 CAD
$16.07 CAD
$16.07 CAD - $16.07 CAD
$16.07 CAD

Vendu en lots de : 10

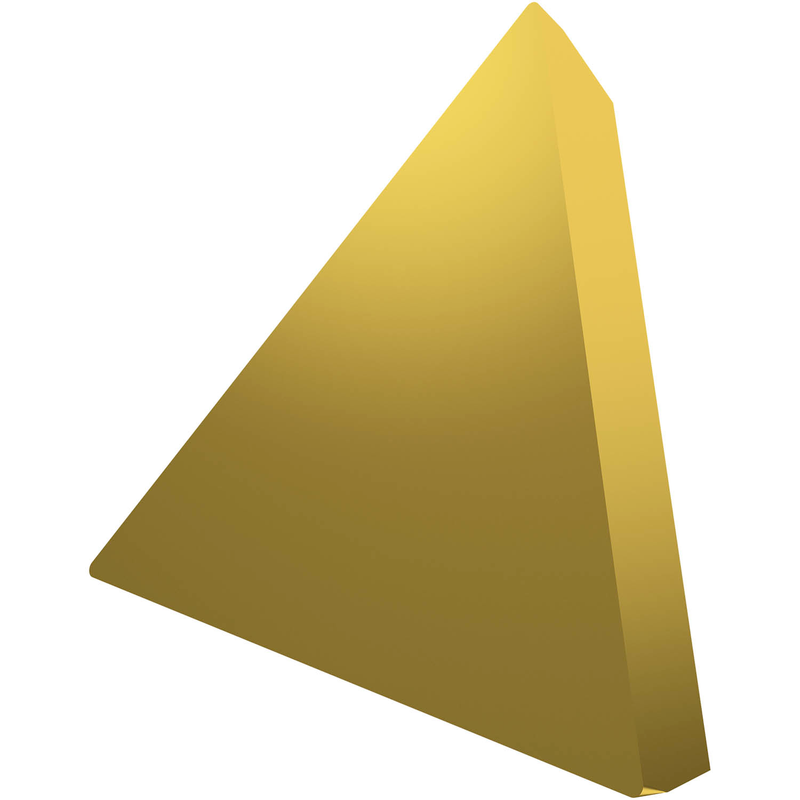

Plaquette positive simple face, triangulaire avec un angle de dépouille de 11°, diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO U, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans la plage ISO K25 - K40, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)UTP 433:6640
Product Name (ISO)TPUN 220412:6640
Grade6640
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6751572
Product FamilyTPUN-IT

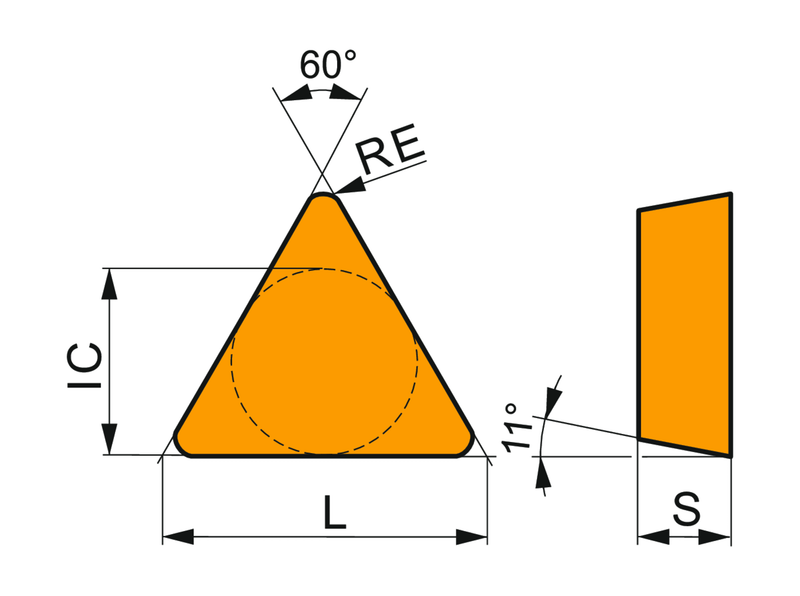

Insert Geometry
Insert DesignTPUN
Insert Shape Code (SC)T - angulaire, angle d'ouverture de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.252"
Depth of Cut Max — mm (APMX)6.4 mm
Tool Information
Reference Numbers
EDP Number6751572
EAN3603602869388
File Type Download
TPU 433:6640 — Line Drawing PDF Download
