TPU 544S:6640
TPU 544S:6640

TPU 544S:6640

UGC DOR6751573
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.29 CAD - $25.29 CAD
$25.29 CAD
$25.29 CAD - $25.29 CAD
$25.29 CAD

Vendu en lots de : 10

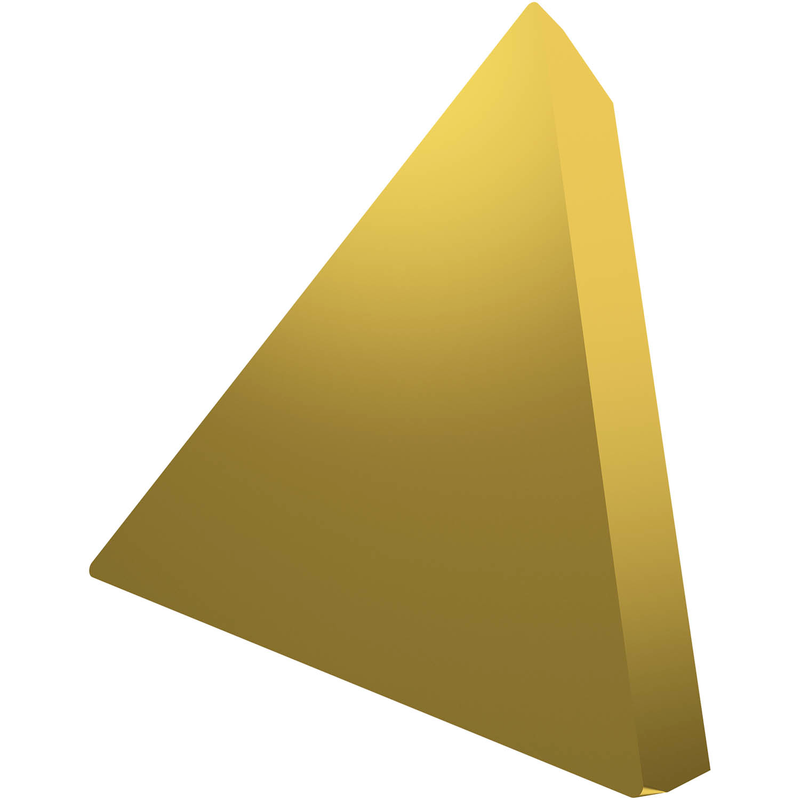

Plaquette de tournage positive simple face, triangulaire avec dépouille de 11°, diamètre du cercle inscrit de 15,875", épaisseur de 6,35", rayon de pointe de 1,6", précision d'indexage selon la classe de tolérance ISO-U avec arêtes de coupe arrondies avec facette, en nuance 6640, un carbure WC-Co revêtu MT-CVD, pour l'usinage moyen à fin

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 544S:6640
Product Name (ISO)TPUN 270616S:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751573
Product FamilyTPUN-FR

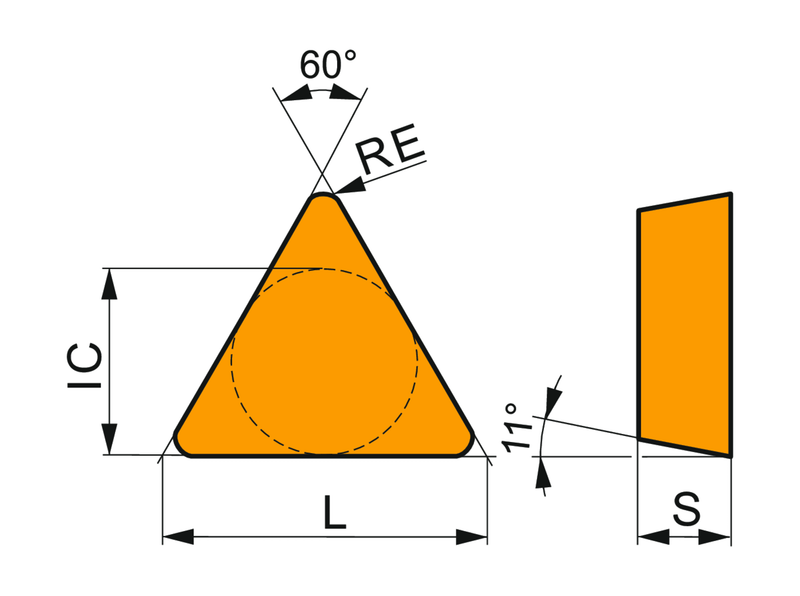

Insert Geometry
Insert DesignTPUN
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.307"
Depth of Cut Max — mm (APMX)7.8 mm
Tool Information
Reference Numbers
EDP Number6751573
EAN3603602869395
File Type Download
TPU 544S:6640 — Line Drawing PDF Download
