TPU 645S:6640
TPU 645S:6640

TPU 645S:6640

UGC DOR6751574
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.86 CAD - $40.86 CAD
$40.86 CAD
$40.86 CAD - $40.86 CAD
$40.86 CAD

Vendu en lots de : 5

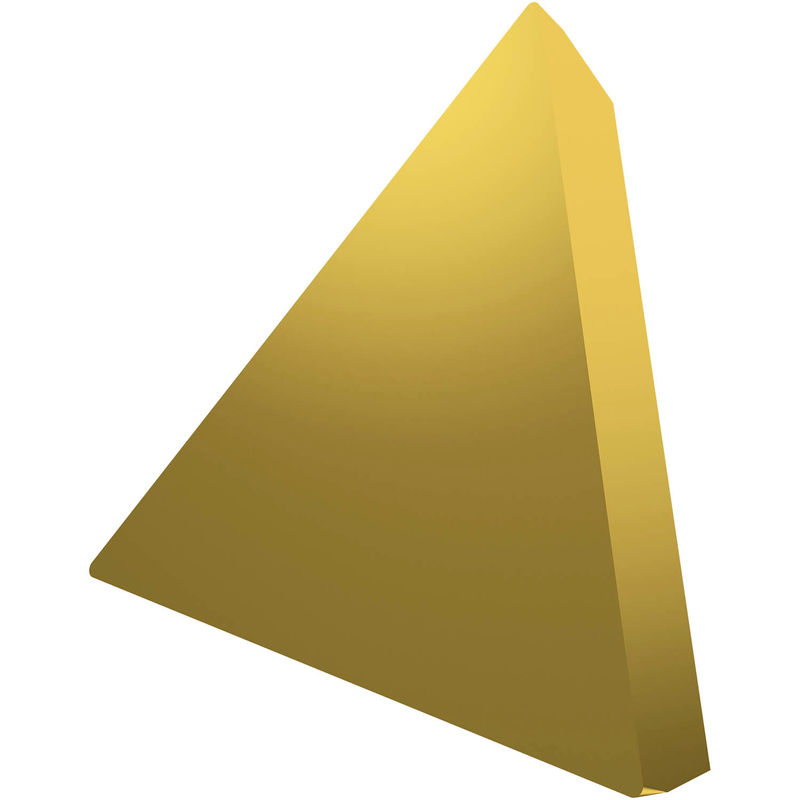

Plaquette de tournage positive simple face, triangulaire avec dépouille de 11°, diamètre du cercle inscrit de 3/4", épaisseur de 1/4", rayon de bec de 5/64", précision de positionnement selon la classe de tolérance ISO U, avec arêtes de coupe arrondies avec facette, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K25 - K40, pour l'usinage moyen à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 645S:6640
Product Name (ISO)TPUN 330620S:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751574
Product FamilyPUNT-IT

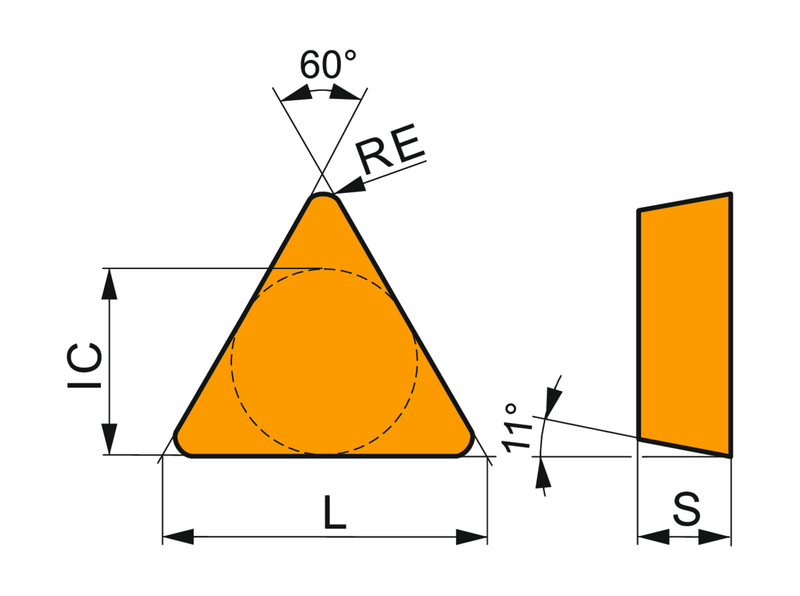

Insert Geometry
Insert DesignPUNT
Insert Shape Code (SC)T - 60° triangulaire
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.374"
Depth of Cut Max — mm (APMX)9.5 mm
Tool Information
Reference Numbers
EDP Number6751574
EAN3603602869401
File Type Download
TPU 645S:6640 — Line Drawing PDF Download
