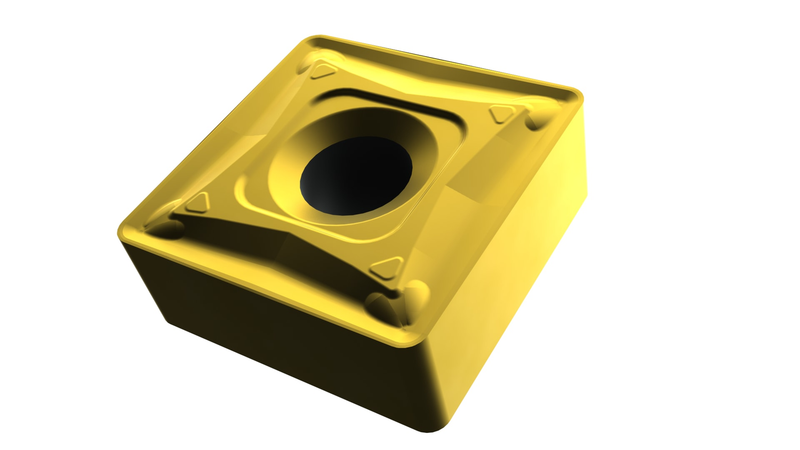

SNMG 643-M:6630
SNMG 643-M:6630

SNMG 643-M:6630

UGC DOR6751577
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.47 CAD - $27.47 CAD
$27.47 CAD
$27.47 CAD - $27.47 CAD
$27.47 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée, avec un diamètre de cercle inscrit de 3/4", épaisseur de 1/4", rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux M, en nuance 6630, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P15-P35, pour l'usinage du acier, de la finition à l'ébauche

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 643-M:6630
Product Name (ISO)SNMG 190612E-M:6630
Grade6630
Chipbreaker (CBMD)M
Product Number6751577
Product FamilyGSMN
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6751577
EAN3603602869432
File Type Download
SNMG 643-M:6630 — Line Drawing PDF Download
