TPU 322:6640
TPU 322:6640

TPU 322:6640

UGC DOR6751583
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.11 CAD - $11.11 CAD
$11.11 CAD
$11.11 CAD - $11.11 CAD
$11.11 CAD

Vendu en lots de : 10

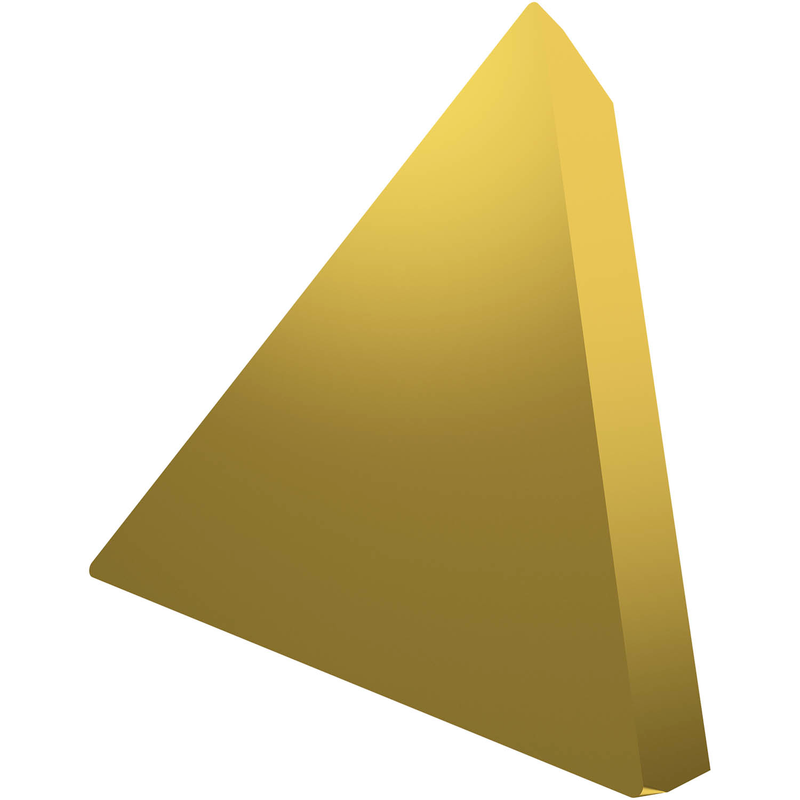

Plaquette positive simple face, triangulaire avec dépouille de 11°, diamètre du cercle inscrit de 3/8", épaisseur de 1/8", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO-U, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans la plage ISO K25 - K40, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 322:6640
Product Name (ISO)TPUN 160308:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751583
Product FamilyTPUN-IT

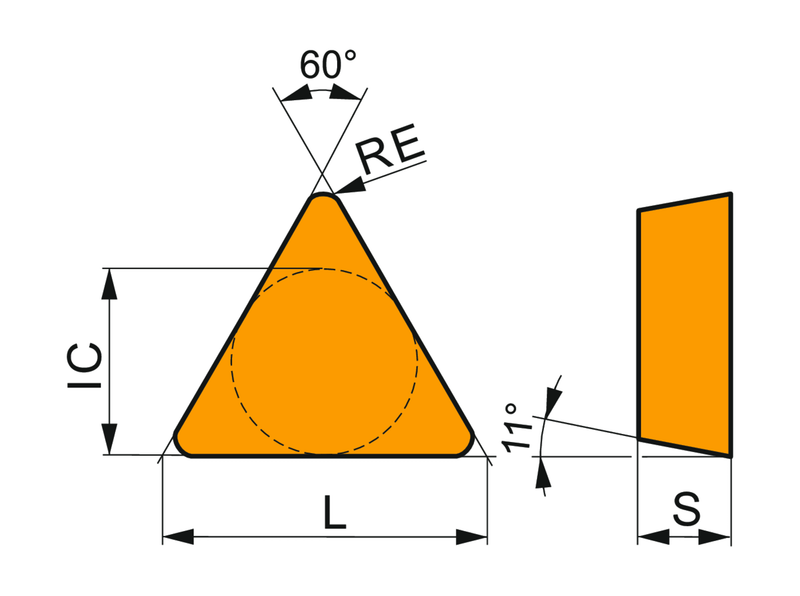

Insert Geometry
Insert DesignTPUN
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number6751583
EAN3603602869494
File Type Download
TPU 322:6640 — Line Drawing PDF Download
