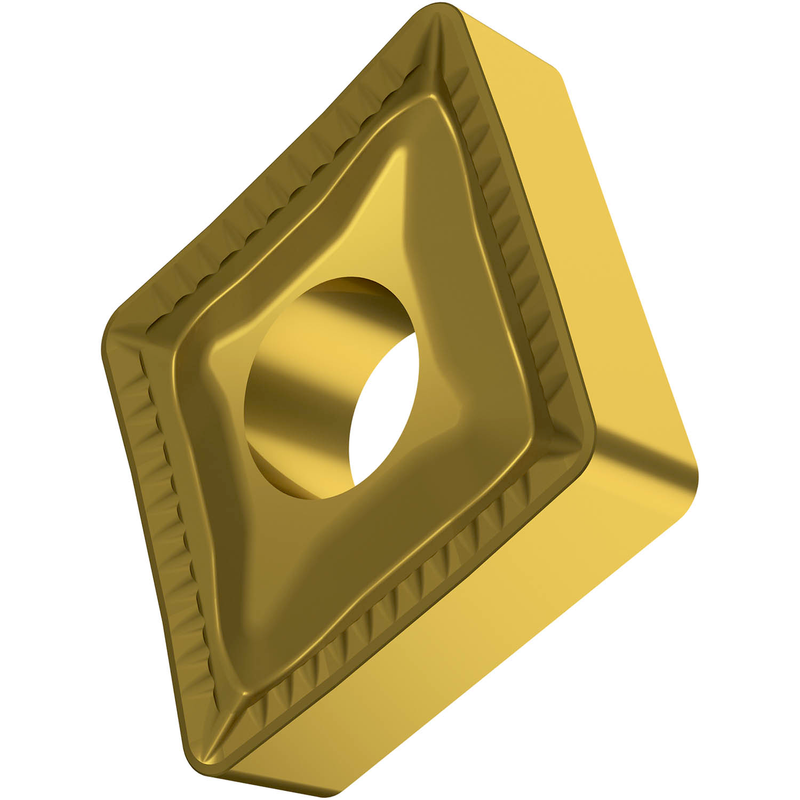

CNMM 644-HR:6640
CNMM 644-HR:6640

CNMM 644-HR:6640

UGC DOR6751586
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.36 CAD - $28.36 CAD
$28.36 CAD
$28.36 CAD - $28.36 CAD
$28.36 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre du cercle inscrit de 3/4", 1/4" d'épaisseur, rayon de bec de 1/16" et précision d'indexage selon la classe de tolérance ISO- M, brise-copeaux HR, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans les plages ISO P20 - P40 et K25 - K40, pour l'usinage lourd à très lourd des aciers et des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 644-HR:6640
Product Name (ISO)CNMM 190616E-HR:6640
Grade6640
Chipbreaker (CBMD)RH
Product Number6751586
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle interne rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.524"
Depth of Cut Max — mm (APMX)13.3 mm
Tool Information
Reference Numbers
EDP Number6751586
EAN3603602869524
File Type Download
CNMM 644-HR:6640 — Line Drawing PDF Download
