SPU 423:6640
SPU 423:6640

SPU 423:6640

UGC DOR6751608
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.90 CAD - $12.90 CAD
$12.90 CAD
$12.90 CAD - $12.90 CAD
$12.90 CAD

Vendu en lots de : 10

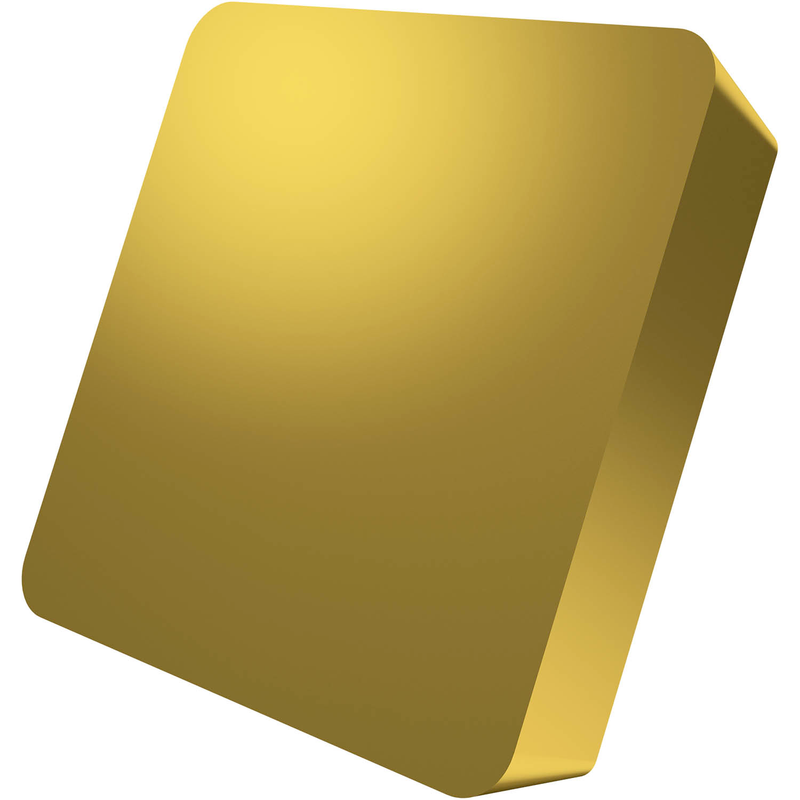

Plaquette de tournage positive simple face, carrée avec dépouille de 11°, diamètre du cercle inscrit de 12,7 mm (1/2"), épaisseur de 3,18 mm (1/8"), rayon de bec de 1,19 mm (3/64") et précision de positionnement selon la classe de tolérance ISO U, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans la plage ISO P20 - P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SPU 423:6640
Product Name (ISO)SPUN 120312:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751608
Product FamilyFILÉ
Insert Geometry
Insert DesignFILÉ
Insert Shape Code (SC)S - carré

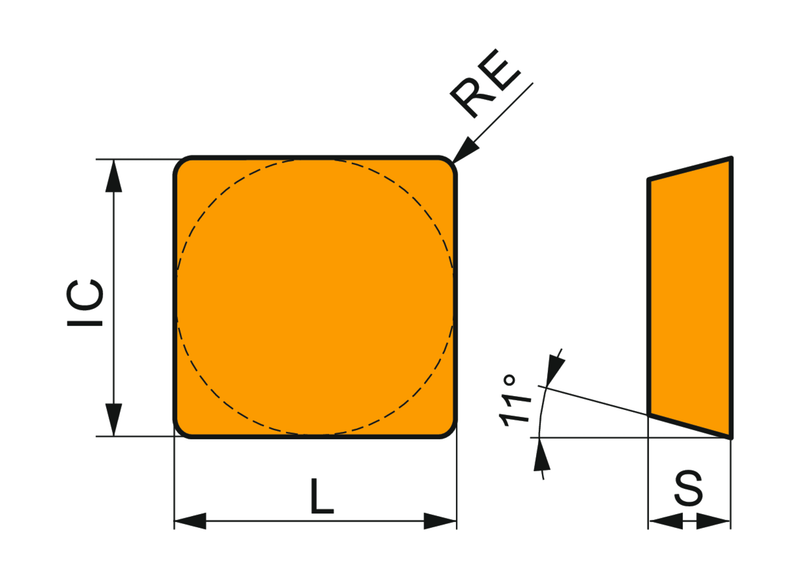

Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6751608
EAN3603602869746
File Type Download
SPU 423:6640 — Line Drawing PDF Download
