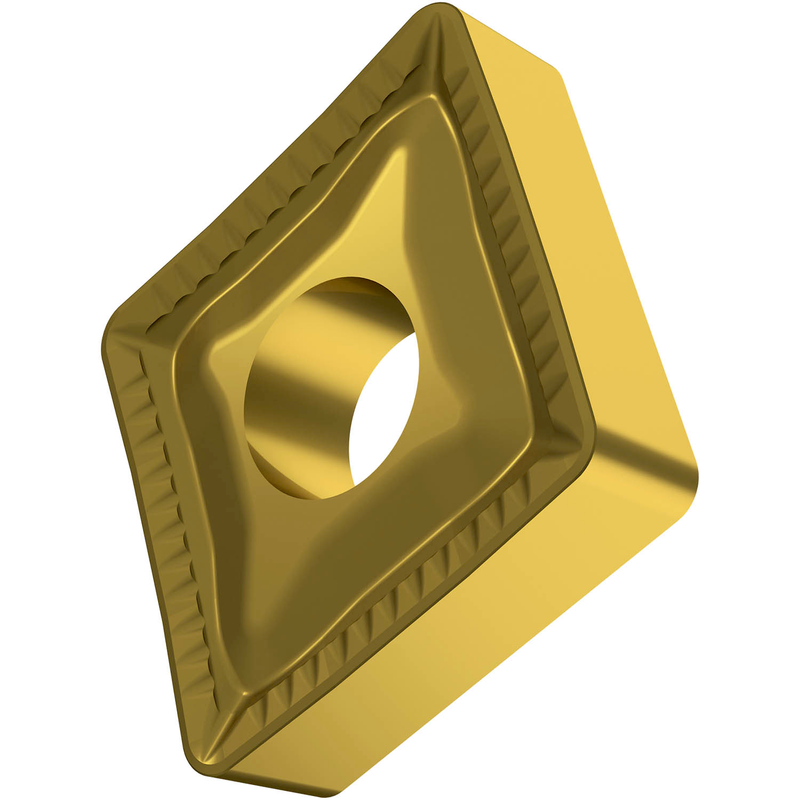

CNMM 866-HR:6630
CNMM 866-HR:6630

CNMM 866-HR:6630

UGC DOR6751615
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.29 CAD - $58.29 CAD
$58.29 CAD
$58.29 CAD - $58.29 CAD
$58.29 CAD

Vendu en lots de : 5

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 1", 3/8" d'épaisseur, rayon de bec de 3/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux HR, en nuance 6630, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 866-HR:6630
Product Name (ISO)CNMM 250924E-RH:6630
Grade6630
Chipbreaker (CBMD)RH
Product Number6751615
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle compris rhomboédrique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.551"
Depth of Cut Max — mm (APMX)14.0 mm
Tool Information
Reference Numbers
EDP Number6751615
EAN3603602869814
File Type Download
CNMM 866-HR:6630 — Line Drawing PDF Download
