SPU 845S:6640
SPU 845S:6640

SPU 845S:6640

UGC DOR6751618
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.79 CAD - $49.79 CAD
$49.79 CAD
$49.79 CAD - $49.79 CAD
$49.79 CAD

Vendu en lots de : 10

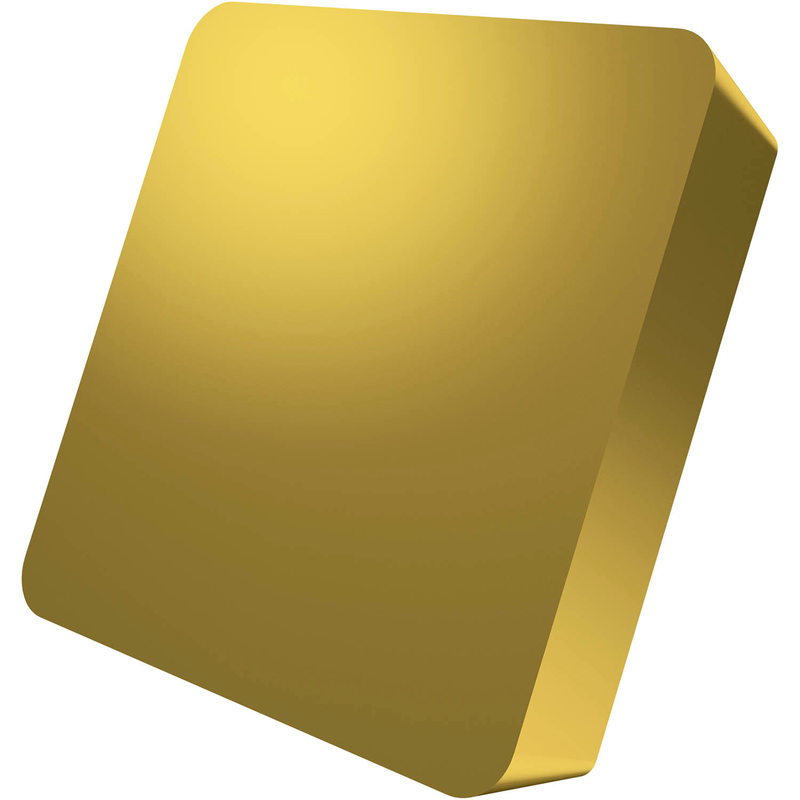

Plaquette de tournage positive simple face, carrée avec un angle de dépouille de 11°, diamètre du cercle inscrit de 1", épaisseur de 1/4", rayon de bec de 5/64", précision d'indexage selon la classe de tolérance ISO U, avec des arêtes de coupe arrondies avec facette, en nuance 6640, un carbure WC-Co revêtu MT-CVD de gamme ISO P20 - P40, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SPU 845S:6640
Product Name (ISO)SPUN 250620S:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751618
Product FamilyFILÉ
Insert Geometry
Insert DesignFILÉ
Insert Shape Code (SC)C - carré

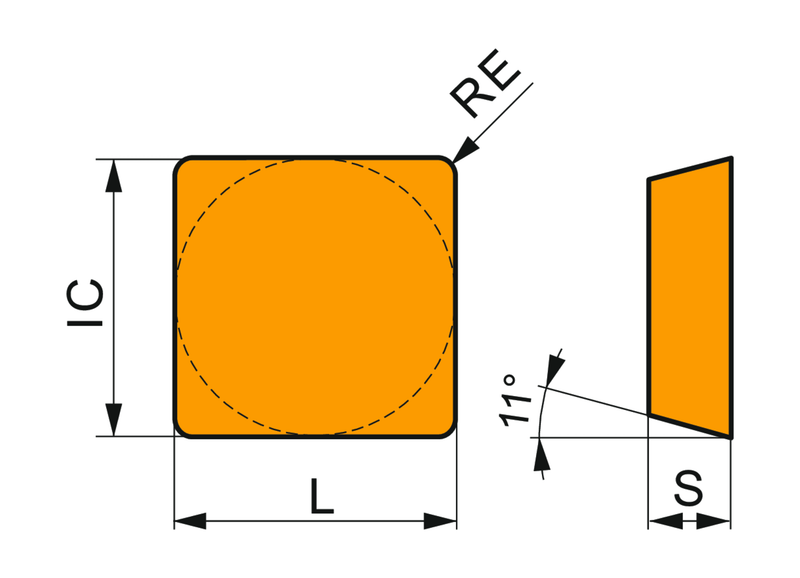

Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.689"
Depth of Cut Max — mm (APMX)17.5 mm
Tool Information
Reference Numbers
EDP Number6751618
EAN3603602869845
File Type Download
SPU 845S:6640 — Line Drawing PDF Download
