TPKN 32PDSR:S26
TPKN 32PDSR:S26

TPKN 32PDSR:S26

UGC DOR6751622
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.79 CAD - $10.79 CAD
$10.79 CAD
$10.79 CAD - $10.79 CAD
$10.79 CAD

Vendu en lots de : 10

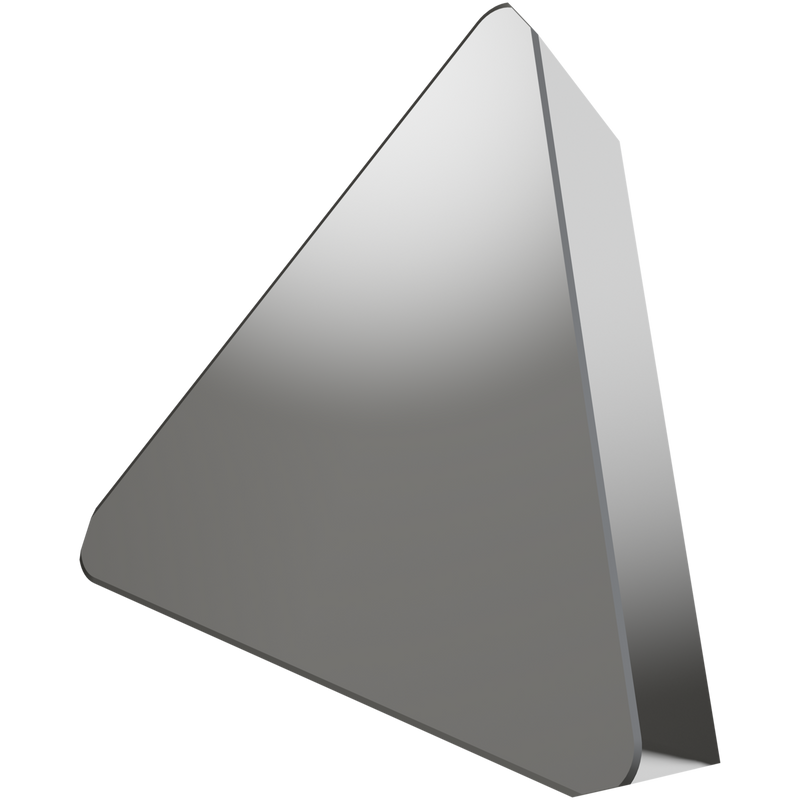

Plaquette de fraisage simple face TPKN 1603 avec une surface de coupe plane, triangulaire pour une profondeur de coupe maximale de 12 mm, avec un rayon de coin ", une précision d'indexage selon la classe de tolérance ISO-K avec des arêtes de coupe arrondies et une facette, en carbure WC-(Ti, Ta, Nb)C-Co non revêtu S26

For more information about this product, click here

Identification
Ordering Code (ANSI)TPKN 32PDSR:S26
Product Name (ISO)TPKN 1603PDSR:S26
GradeS26
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751622
Product FamilyTPKN

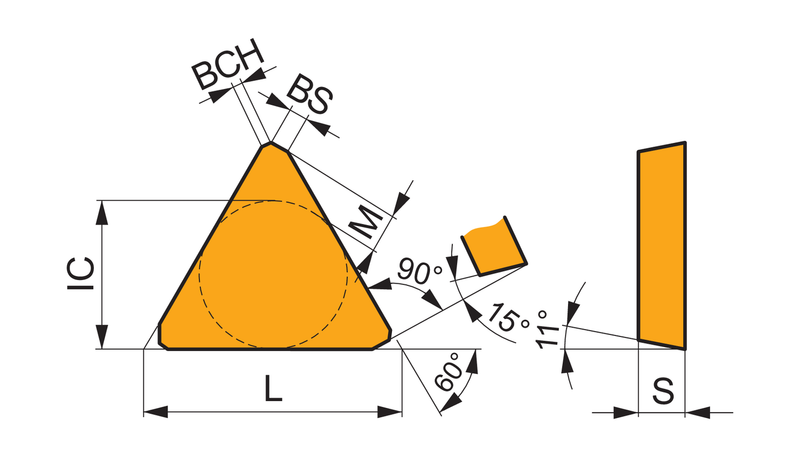

Insert Geometry
Insert DesignTPKN
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6751622
EAN3603602869883
File Type Download
TPKN 32PDSR:S26 — Line Drawing PDF Download
