TPKN 43PDSR:S26
TPKN 43PDSR:S26

TPKN 43PDSR:S26

UGC DOR6751623
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.07 CAD - $16.07 CAD
$16.07 CAD
$16.07 CAD - $16.07 CAD
$16.07 CAD

Vendu en lots de : 10

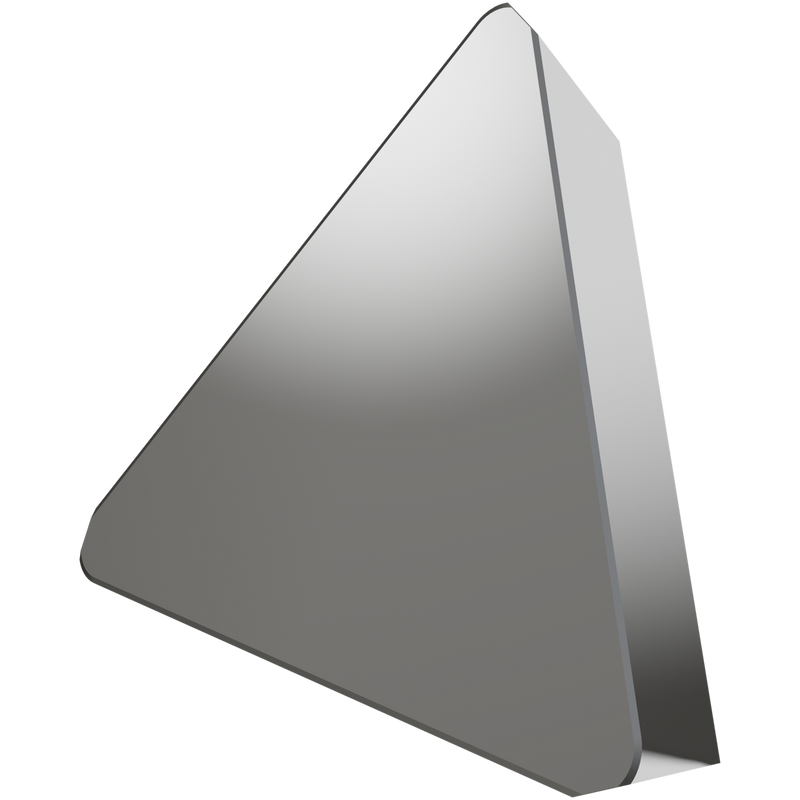

Plaquette de fraisage simple face TPKN 2204 avec une surface de coupe plane, triangulaire pour une profondeur de coupe maximale de 17 mm, avec un rayon de coin ", une précision d'indexage selon la classe de tolérance ISO-K avec des arêtes de coupe arrondies et un chanfrein, en carbure S26 WC-(Ti, Ta, Nb)C-Co non revêtu

For more information about this product, click here

Identification
Ordering Code (ANSI)TPKN 43PDSR:S26
Product Name (ISO)TPKN 2204PDSR:S26
GradeS26
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751623
Product FamilyTPKN

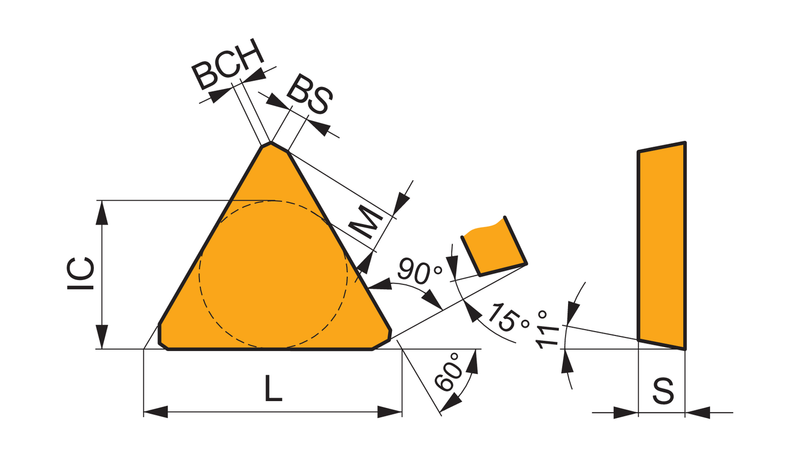

Insert Geometry
Insert DesignTPKN
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.669"
Depth of Cut Max — mm (APMX)17.0 mm
Tool Information
Reference Numbers
EDP Number6751623
EAN3603602869890
File Type Download
TPKN 43PDSR:S26 — Line Drawing PDF Download
