SNHN 43ENEN:S26
SNHN 43ENEN:S26

SNHN 43ENEN:S26

UGC DOR6751637
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.43 CAD - $16.43 CAD
$16.43 CAD
$16.43 CAD - $16.43 CAD
$16.43 CAD

Vendu en lots de : 10

Plaquette de fraisage double face SNHN 1204 avec une surface de coupe plane, carrée pour une profondeur de coupe maximale de 8,99 mm, avec un rayon de coin de ", une précision d'indexation selon la classe de tolérance ISO-H avec des arêtes de coupe arrondies, S26 carbure WC-(Ti, Ta, Nb)C-Co non revêtu

For more information about this product, click here

Identification
Ordering Code (ANSI)SNHN 43ENEN:S26
Product Name (ISO)SNHN 1204ENEN:S26
GradeS26
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751637
Product FamilySHSN
Insert Geometry
Insert DesignSNHN
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6751637
EAN3603602870032
File Type Download

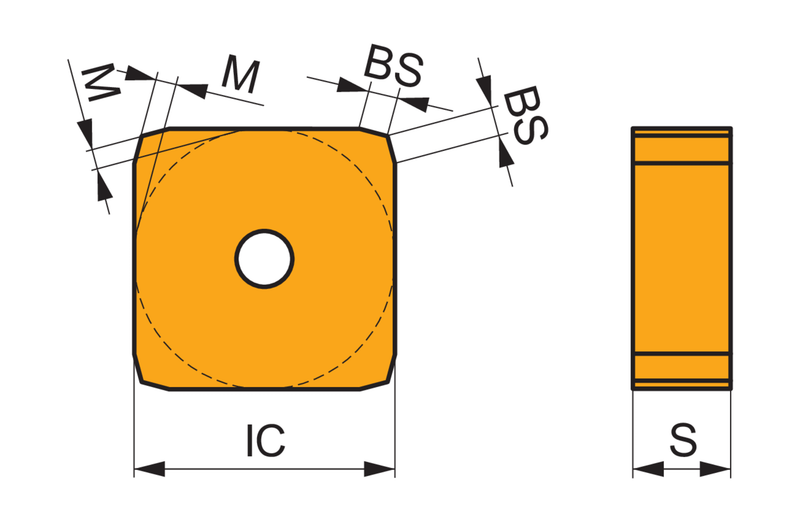

SNHN 43ENEN:S26 — Line Drawing PDF Download
