SNHN 53ENEN:S26
SNHN 53ENEN:S26

SNHN 53ENEN:S26

UGC DOR6751639
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.21 CAD - $21.21 CAD
$21.21 CAD
$21.21 CAD - $21.21 CAD
$21.21 CAD

Vendu en lots de : 10

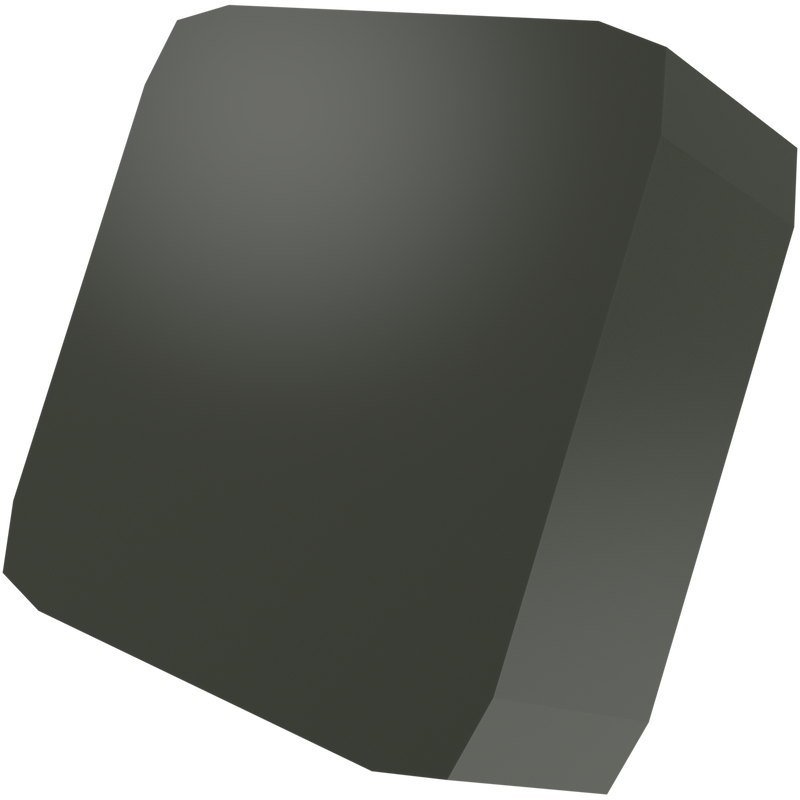

Plaquette de fraisage double face SNHN 1504 avec surface de dépouille plane, carrée pour une profondeur de coupe maximale de 13,5 mm, avec rayon de coin, une précision d'indexage selon la classe de tolérance ISO-H avec arêtes de coupe arrondies, S26 carbure WC-(Ti, Ta, Nb)C-Co non revêtu

For more information about this product, click here

Identification
Ordering Code (ANSI)SNHN 53ENEN:S26
Product Name (ISO)SNHN 1504ENEN:S26
GradeS26
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751639
Product FamilySNHN
Insert Geometry
Insert DesignSHSN
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.531"
Depth of Cut Max — mm (APMX)13.5 mm
Tool Information
Reference Numbers
EDP Number6751639
EAN3603602870056
File Type Download

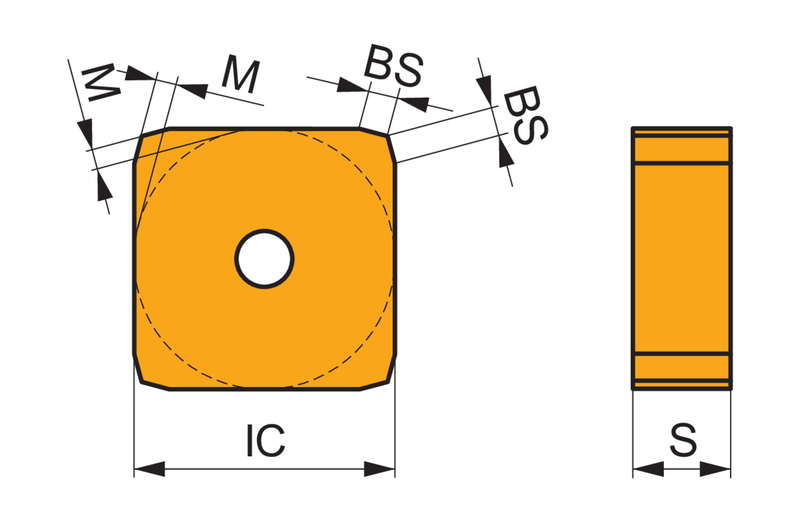

SNHN 53ENEN:S26 — Line Drawing PDF Download
