RCMX 2006MOS-341:6630
RCMX 2006MOS-341:6630

RCMX 2006MOS-341:6630

UGC DOR6751662
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.83 CAD - $24.83 CAD
$24.83 CAD
$24.83 CAD - $24.83 CAD
$24.83 CAD

Vendu en lots de : 10

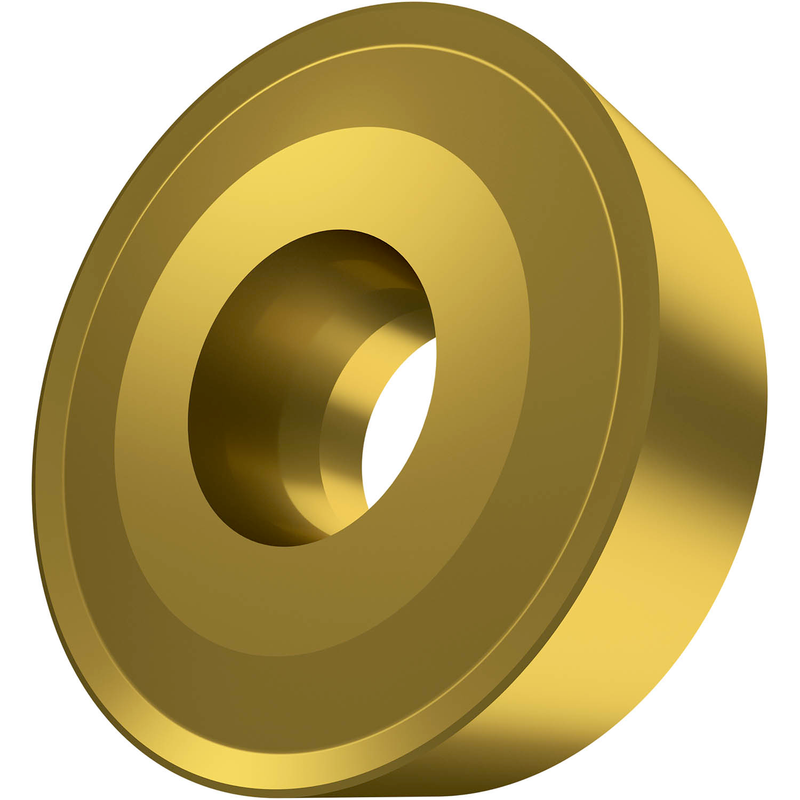

Plaquette de tournage positive à conception spéciale, ronde avec dépouille de 7°, diamètre de 20 mm, épaisseur de 6,35 mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux 341 avec arêtes de coupe arrondies avec facette, en nuance 6630, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMX 2006MOS-341:6630
Grade6630
Chipbreaker (CBMD)341
Product Number6751662
Product FamilyRCMX
Insert Geometry
Insert DesignRCMX
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6751662
EAN3603602870285
File Type Download

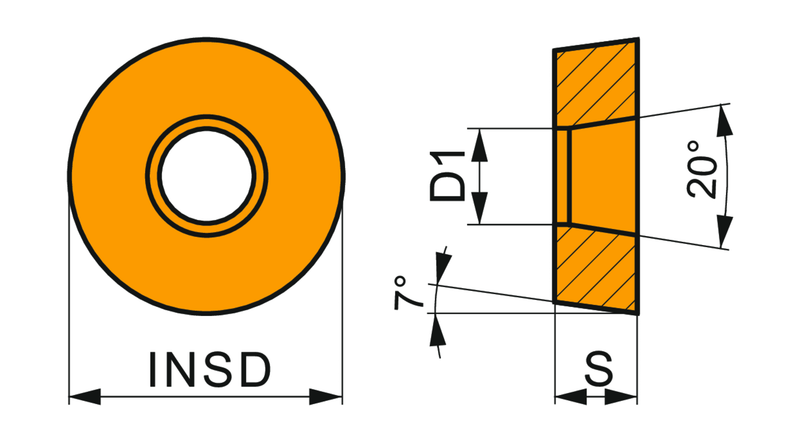

RCMX 2006MOS-341:6630 — Line Drawing PDF Download
