RCMX 2507MOS-351:6640
RCMX 2507MOS-351:6640

RCMX 2507MOS-351:6640

UGC DOR6751665
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.07 CAD - $47.07 CAD
$47.07 CAD
$47.07 CAD - $47.07 CAD
$47.07 CAD

Vendu en lots de : 10

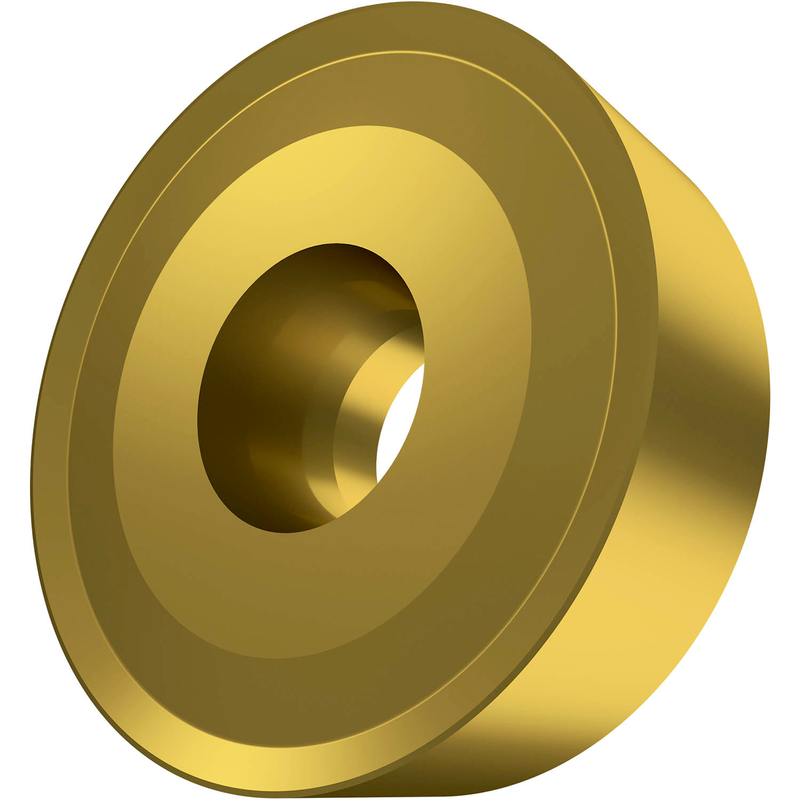

Plaquette de tournage positive de conception spéciale, ronde avec un dépouille de 7°, un diamètre de 25 mm, une épaisseur de 7,94 mm, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux 351 avec des arêtes de coupe arrondies avec facette, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans la gamme ISO P20-P40, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMX 2507MOS-351:6640
Grade6640
Chipbreaker (CBMD)351
Product Number6751665
Product FamilyRCMX
Insert Geometry
Insert DesignRCMX
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number6751665
EAN3603602870315
File Type Download

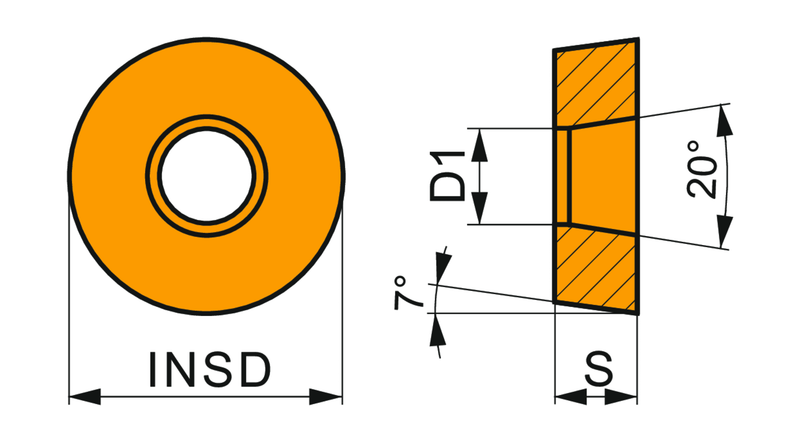

RCMX 2507MOS-351:6640 — Line Drawing PDF Download
