RCMX 3209MOS-361:6640
RCMX 3209MOS-361:6640

RCMX 3209MOS-361:6640

UGC DOR6751668
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.86 CAD - $82.86 CAD
$82.86 CAD
$82.86 CAD - $82.86 CAD
$82.86 CAD

Vendu en lots de : 5

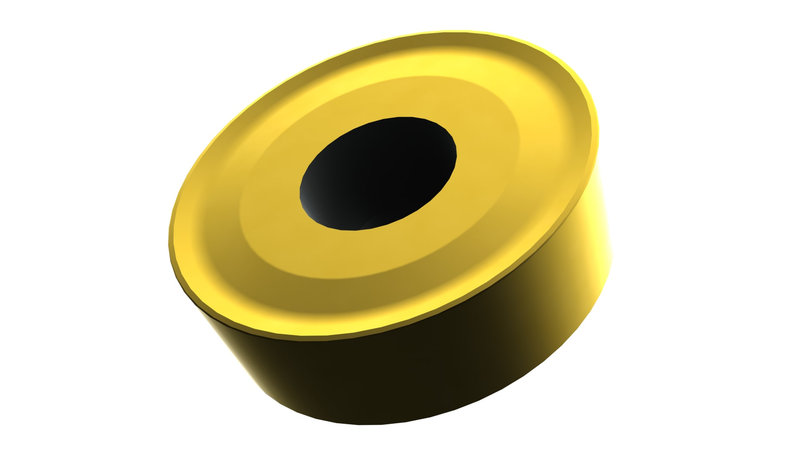

Plaquette de tournage positive de conception spéciale, ronde avec un angle de dépouille de 7°, un diamètre de 32 mm, une épaisseur de 9,52 mm, une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux 361 avec des arêtes de coupe arrondies et un chanfrein, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans la plage ISO P20-P40, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMX 3209MOS-361:6640
Grade6640
Chipbreaker (CBMD)361
Product Number6751668
Product FamilyRCMX
Insert Geometry
Insert DesignRCMX
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6751668
EAN3603602870346
File Type Download
RCMX 3209MOS-361:6640 — Line Drawing PDF Download
