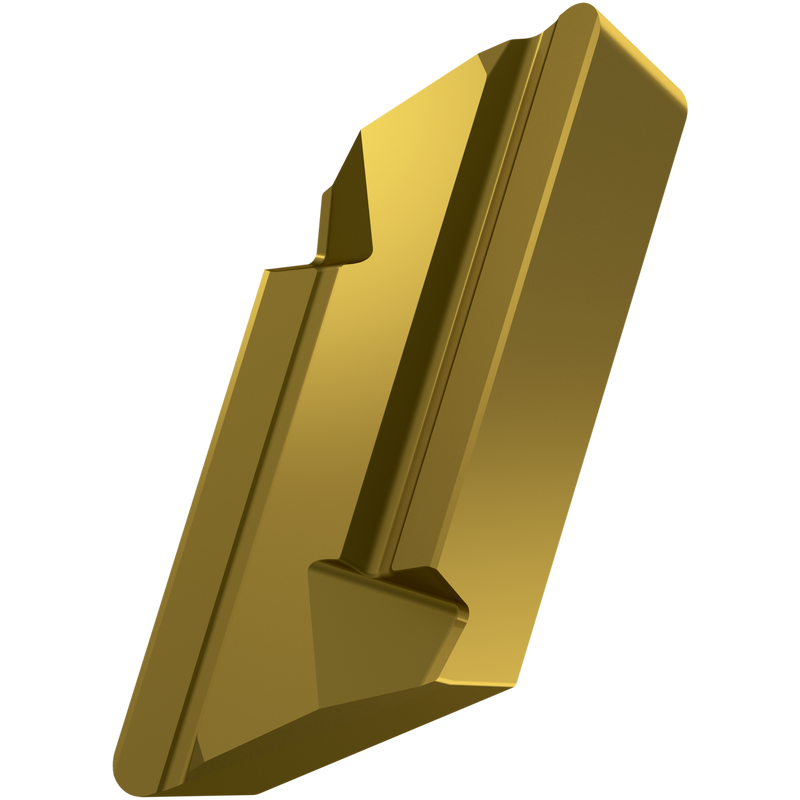

KNUX 160405SL-73:6640
KNUX 160405SL-73:6640

KNUX 160405SL-73:6640

UGC DOR6751685
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.76 CAD - $20.76 CAD
$20.76 CAD
$20.76 CAD - $20.76 CAD
$20.76 CAD

Vendu en lots de : 10

Plaquette négative spéciale, parallélogramme à 55° avec arête principale de 16mm, épaisseur 4.76mm, rayon de pointe 0.5mm, précision d'indexage selon la classe de tolérance ISO-U, brise-copeaux 73 avec arêtes de coupe arrondies et facette, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans les plages ISO P20-P40 et M20-M35, pour l'usinage moyen à lourd des aciers et aciers inoxydables avec un outil de tournage à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KNUX 160405SL-73:6640
Grade6640
Chipbreaker (CBMD)73
Product Number6751685
Product FamilyKNUX
Insert Geometry
Insert DesignKNUX
Insert Shape Code (SC)K - parallélogramme angle interne 55°
Insert Geometry
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number6751685
EAN3603602870513
File Type Download
KNUX 160405SL-73:6640 — 3D Model STP Download
KNUX 160405SL-73:6640 — 2D Model DXF Download
KNUX 160405SL-73:6640 — Line Drawing PDF Download
