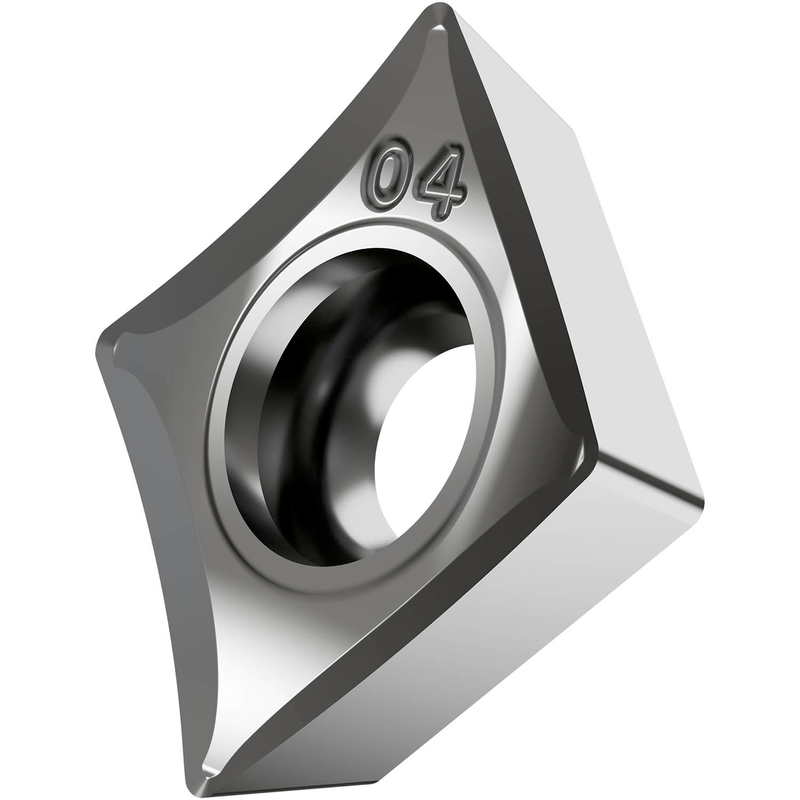

CCGT 432F-AL:HF7
CCGT 432F-AL:HF7

CCGT 432F-AL:HF7

UGC DOR6751701
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.07 CAD - $22.07 CAD
$22.07 CAD
$22.07 CAD - $22.07 CAD
$22.07 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit 1/2", épaisseur 3/16", rayon de bec 1/32", précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux AL à arêtes vives, en nuance HF7, un carbure WC-Co à grains fins non revêtu dans la plage ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 432F-AL:HF7
Product Name (ISO)CCGT 120408F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6751701
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number6751701
EAN3603602870674
Material Group Suitability
N — Non-Ferrous Metals Usage principal
File Type Download
CCGT 432F-AL:HF7 — Line Drawing PDF Download
