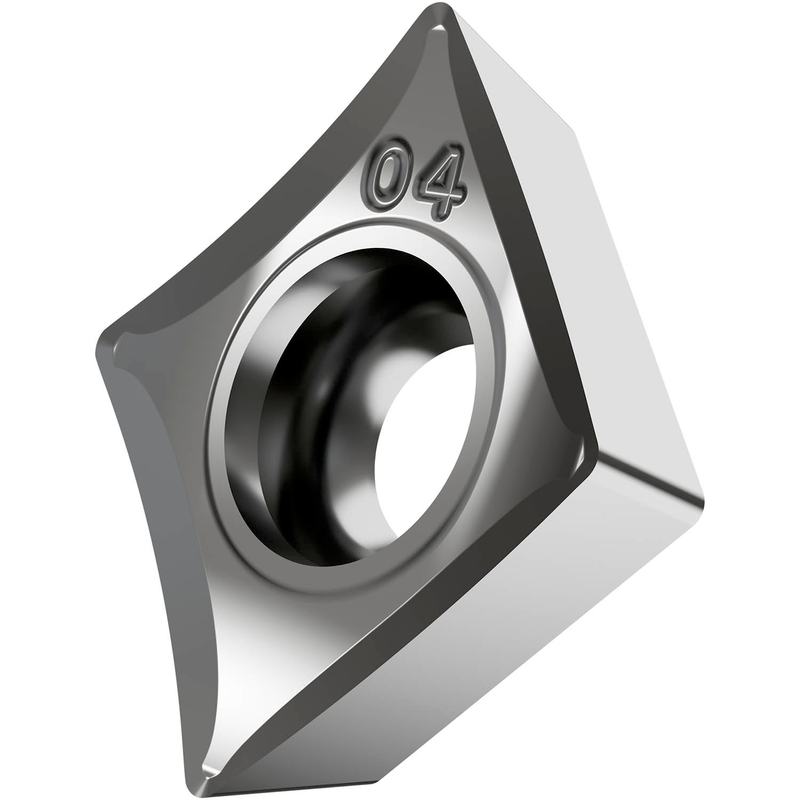

CCGT 32.51F-AL:HF7
CCGT 32.51F-AL:HF7

CCGT 32.51F-AL:HF7

UGC DOR6751705
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.71 CAD - $15.71 CAD
$15.71 CAD
$15.71 CAD - $15.71 CAD
$15.71 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple-face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 5/32", rayon de bec 1/64", précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux AL avec arêtes de coupe vives, en nuance HF7, un carbure WC-Co à grains fins non revêtu de la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 32.51F-AL:HF7
Product Name (ISO)CCGT 09T304F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6751705
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number6751705
EAN3603602870711
Material Group Suitability
N — Non-Ferrous Metals Usage principal
File Type Download
CCGT 32.51F-AL:HF7 — Line Drawing PDF Download
