RCGT 0803MOF-AL:HF7
RCGT 0803MOF-AL:HF7

RCGT 0803MOF-AL:HF7

UGC DOR6751738
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.64 CAD - $13.64 CAD
$13.64 CAD
$13.64 CAD - $13.64 CAD
$13.64 CAD

Vendu en lots de : 10

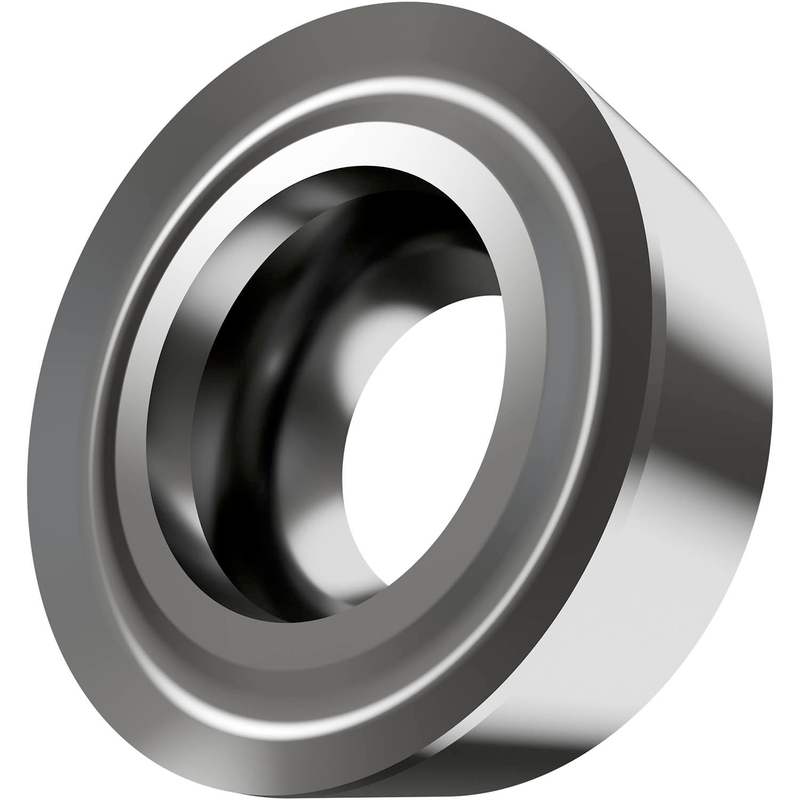

Plaquette de tournage positive simple face, ronde avec un dégagement de 7°, diamètre de 8 mm, 3,18 mm d'épaisseur, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux AL avec des arêtes vives, en nuance HF7, un carbure WC-Co micrograin non revêtu dans la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCGT 0803MOF-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6751738
Product FamilyRCGT
Insert Geometry
Insert DesignRCGT
Insert Shape Code (SC)R - rond
Insert Geometry
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6751738
EAN3603602871046
File Type Download
RCGT 0803MOF-AL:HF7 — Line Drawing PDF Download
