RCGT 1003MOF-AL:HF7
RCGT 1003MOF-AL:HF7

RCGT 1003MOF-AL:HF7

UGC DOR6751740
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.26 CAD - $14.26 CAD
$14.26 CAD
$14.26 CAD - $14.26 CAD
$14.26 CAD

Vendu en lots de : 10

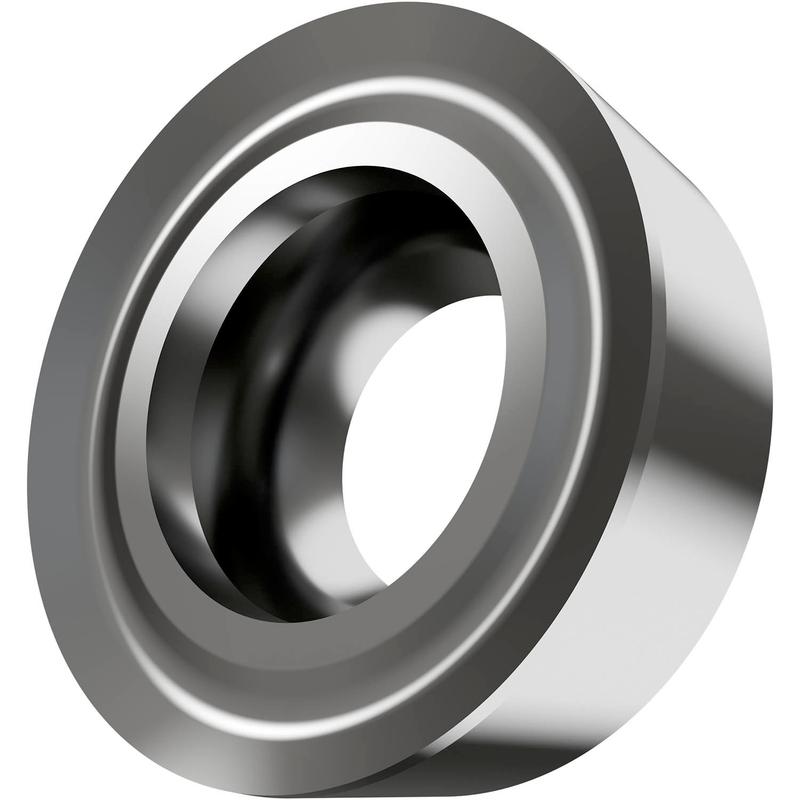

Plaquette de tournage positive simple face, ronde avec un angle de dépouille de 7°, un diamètre de 10 mm, une épaisseur de 3,18 mm, une précision de positionnement selon la classe de tolérance ISO-G, un brise-copeaux AL avec des arêtes vives, en nuance HF7, un carbure WC-Co non revêtu à grains fins dans la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCGT 1003MOF-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6751740
Product FamilyRCGT
Insert Geometry
Insert DesignRCGT
Insert Shape Code (SC)R - tour
Insert Geometry
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6751740
EAN3603602871060
File Type Download

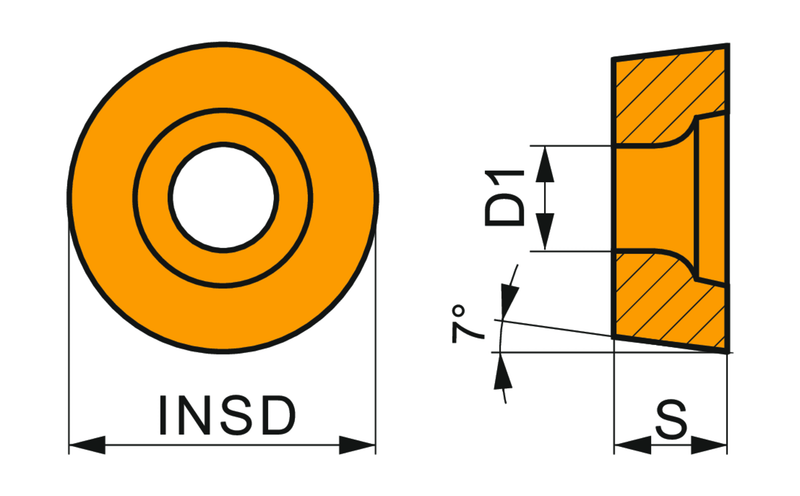

RCGT 1003MOF-AL:HF7 — Line Drawing PDF Download
